Agilent 1260 Infinity RID User Manual 137
Maintenance
9
Replacing Leak Handling System Parts
Replacing Leak Handling System Parts
Leak tubing 120 mm required.
1 Remove the front cover.
2 Pull the leak funnel out of the leak funnel holder.
3 Pull out the leak funnel with the tubing.
4 Insert the leak funnel with the tubing in its position.
5 Insert the leak funnel into the leak funnel holder.
6 Replace the front cover.

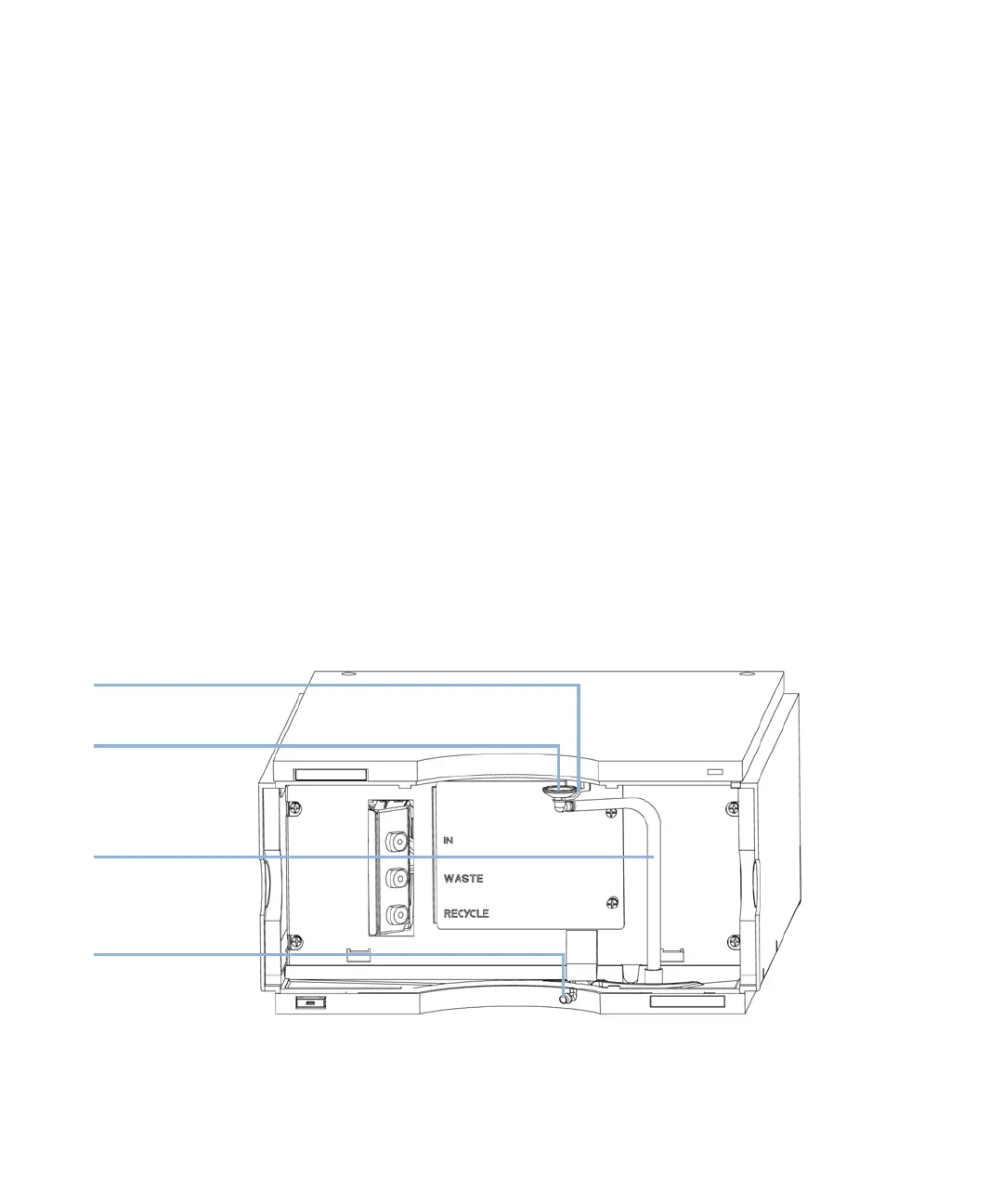

Figure 37 Replacing Leak Handling System Parts
When If the parts are corroded or broken
Parts required # p/n Description
1 5061-8388 Leak funnel
1 5041-8389 Leak funnel holder
1 5042-9974 Tubing Flex (1.5 m)
AZV`[jccZa
AZV`[jccZa
AZV`ijW^c\
AZV`hZchdg
]daYZg
