Replacing the Interface Board
Replacing the Interface Board
“Setting the 8-bit Configuration Switch (without On-Board LAN)” on page 33
1 To replace the interface board unscrew the two screws, remove the board,
slide in the new interface board and fix it with the board’s screws.

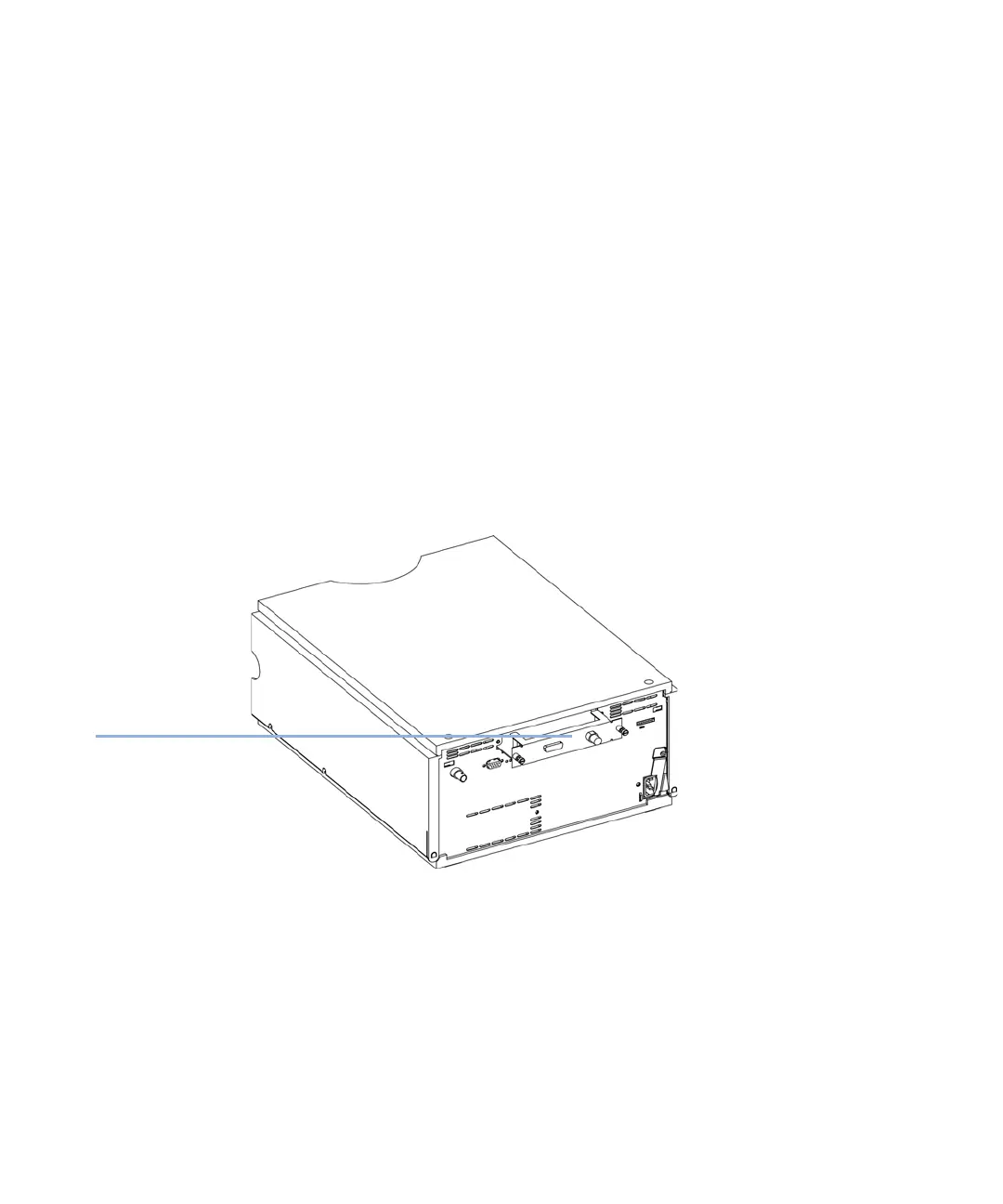

Figure 38 Location of the Interface Board
When For all repairs inside the detector or for installation of the board
Parts required # p/n Description
1 G1351-68701 Interface board (BCD) with external contacts and BCD outputs
1 G1369B or
G1369-60002
Interface board (LAN)
>ciZg[VXZWdVgY
