Agilent 1260 Infinity RID User Manual 33
Introduction to the Refractive Index Detector
1
Setting the 8-bit Configuration Switch (On-Board LAN)
Setting the 8-bit Configuration Switch (without On-Board LAN)
The 8-bit configuration switch is located at the rear of the module.
Modules that do not have their own LAN interface (e.g. the TCC) can be
controlled through the LAN interface of another module and a CAN
connection to that module.

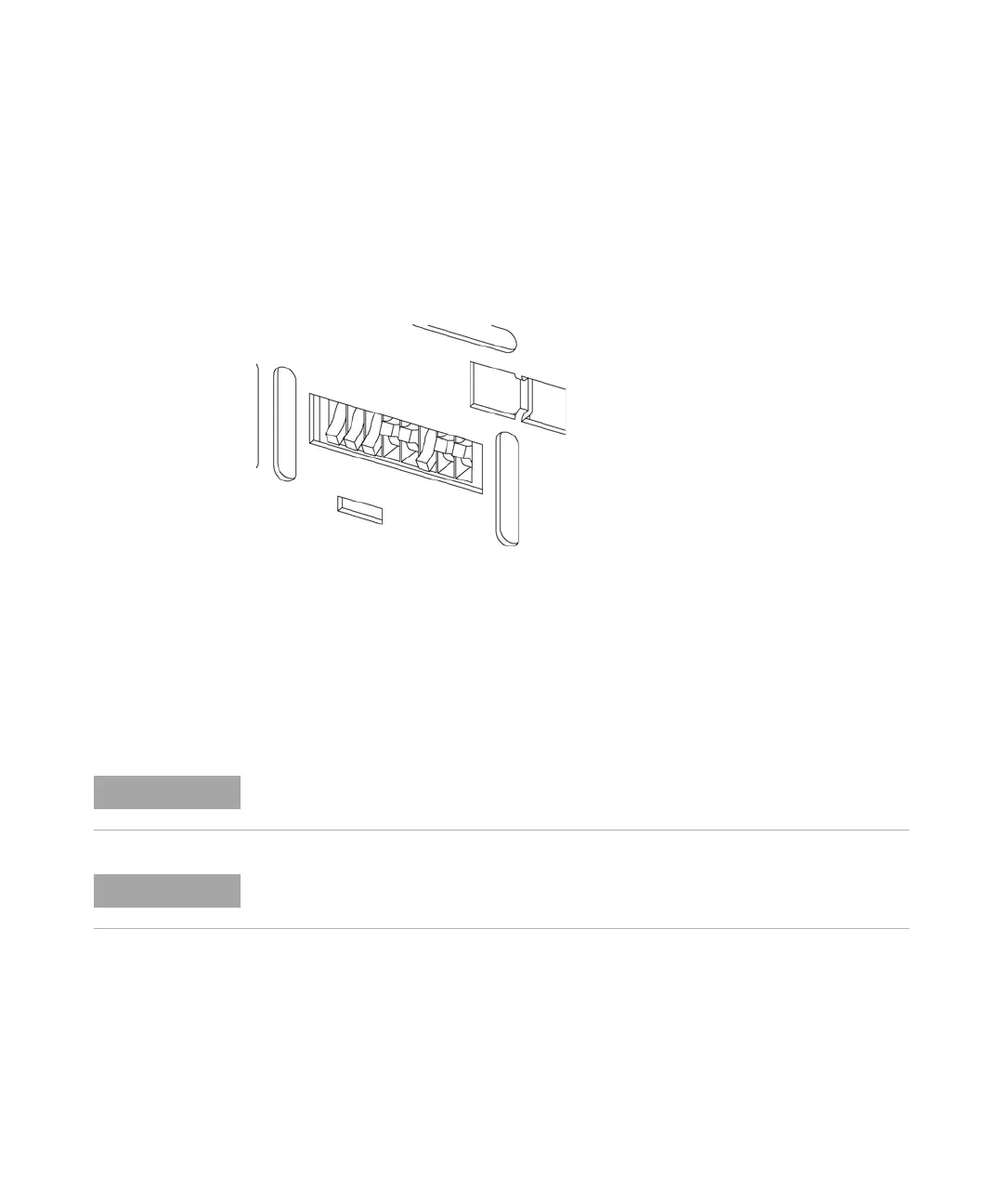

Figure 12 Configuration switch (settings depend on configured mode)
All modules without on-board LAN:
• default is ALL DIPS DOWN (best settings) - Bootp mode for LAN
• for boot/test modes DIPS 1+2 must be UP plus required mode
Switch settings provide configuration parameters for GPIB address, serial
communication protocol and instrument specific initialization procedures.
NOTE
With the introduction of the Agilent 1260 Infinity, all GPIB interfaces have been removed.
The preferred communication is LAN.
NOTE
The following tables represent the configuration switch settings for the modules without
on-board LAN only.
