One end of these cables provides a BNC connector to be connected to Agilent
modules. The other end depends on the instrument to which connection is
being made.

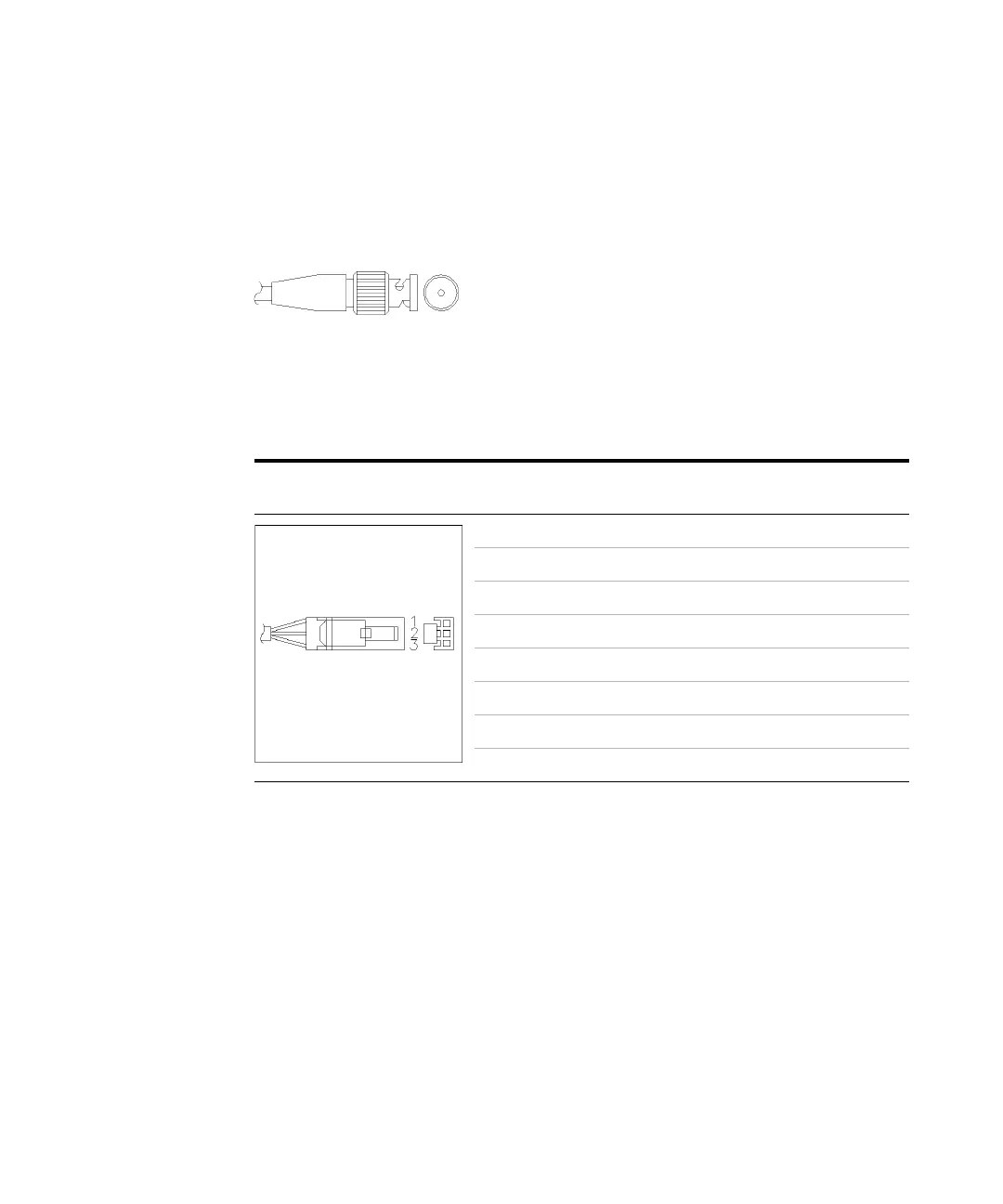

Agilent Module to 3394/6 Integrators
p/n 35900-60750 Pin 3394/6 Pin Agilent
module
Signal Name
1 Not connected
2 Shield Analog -
3CenterAnalog +
