150 Agilent 1260 Infinity RID User Manual
11 Identifying Cables
Remote Cables
Remote Cables
One end of these cables provides a Agilent Technologies APG (Analytical
Products Group) remote connector to be connected to Agilent modules. The
other end depends on the instrument to be connected to.
Agilent Module to 3396A Integrators
Agilent Module to 3396 Series II / 3395A Integrators
Use the cable Agilent module to 3396A Series I integrators (p/n 03394-60600)
and cut pin #5 on the integrator side. Otherwise the integrator prints START;
not ready.

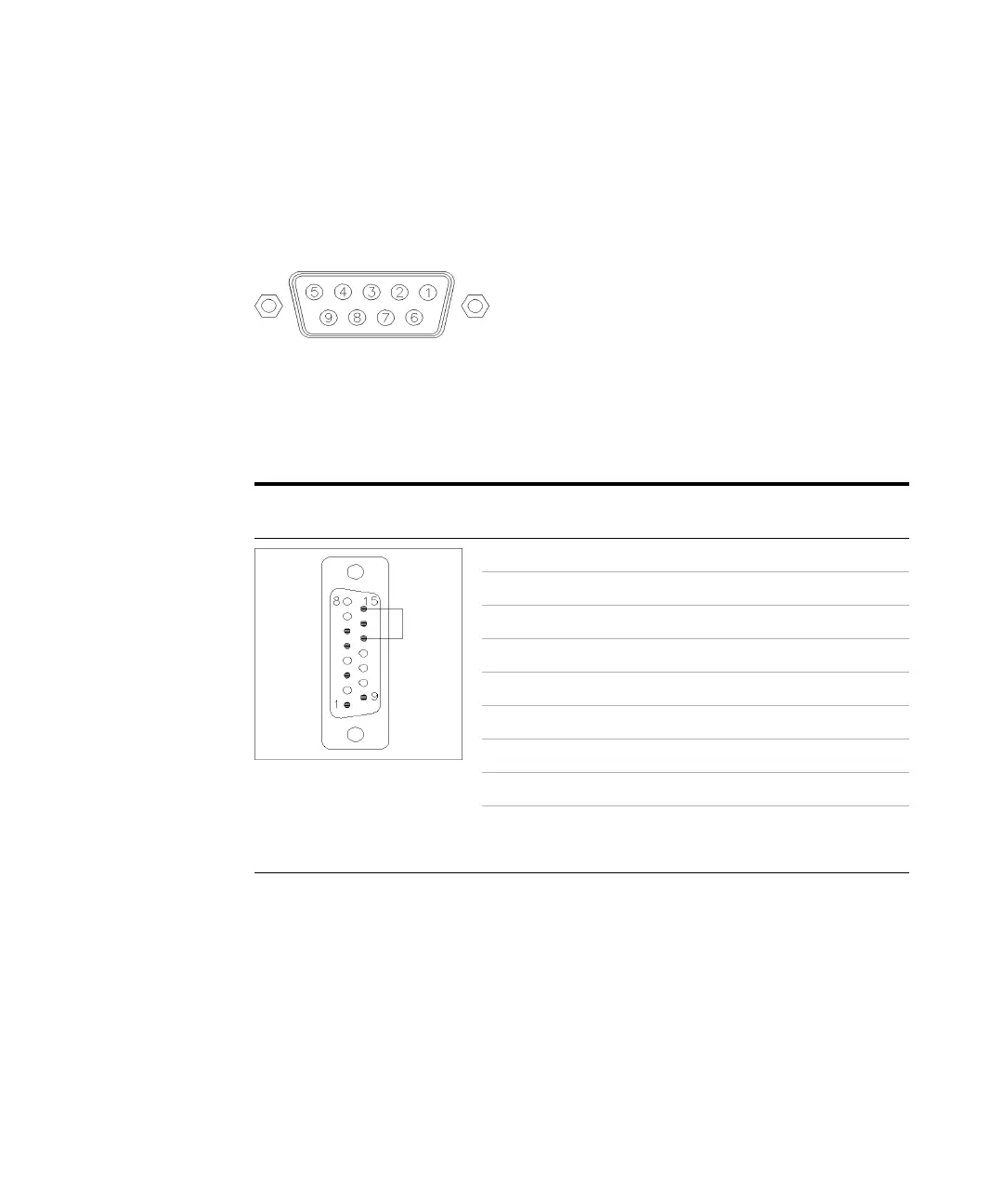

p/n 03394-60600 Pin 3394 Pin Agilent
module
Signal Name Active
(TTL)
9 1 - White Digital ground
NC 2 - Brown Prepare run Low
3 3 - Gray Start Low
NC 4 - Blue Shut down Low
NC 5 - Pink Not connected
NC 6 - Yellow Power on High
5,14 7 - Red Ready High
1 8 - Green Stop Low
NC 9 - Black Start request Low
13, 15 Not connected
