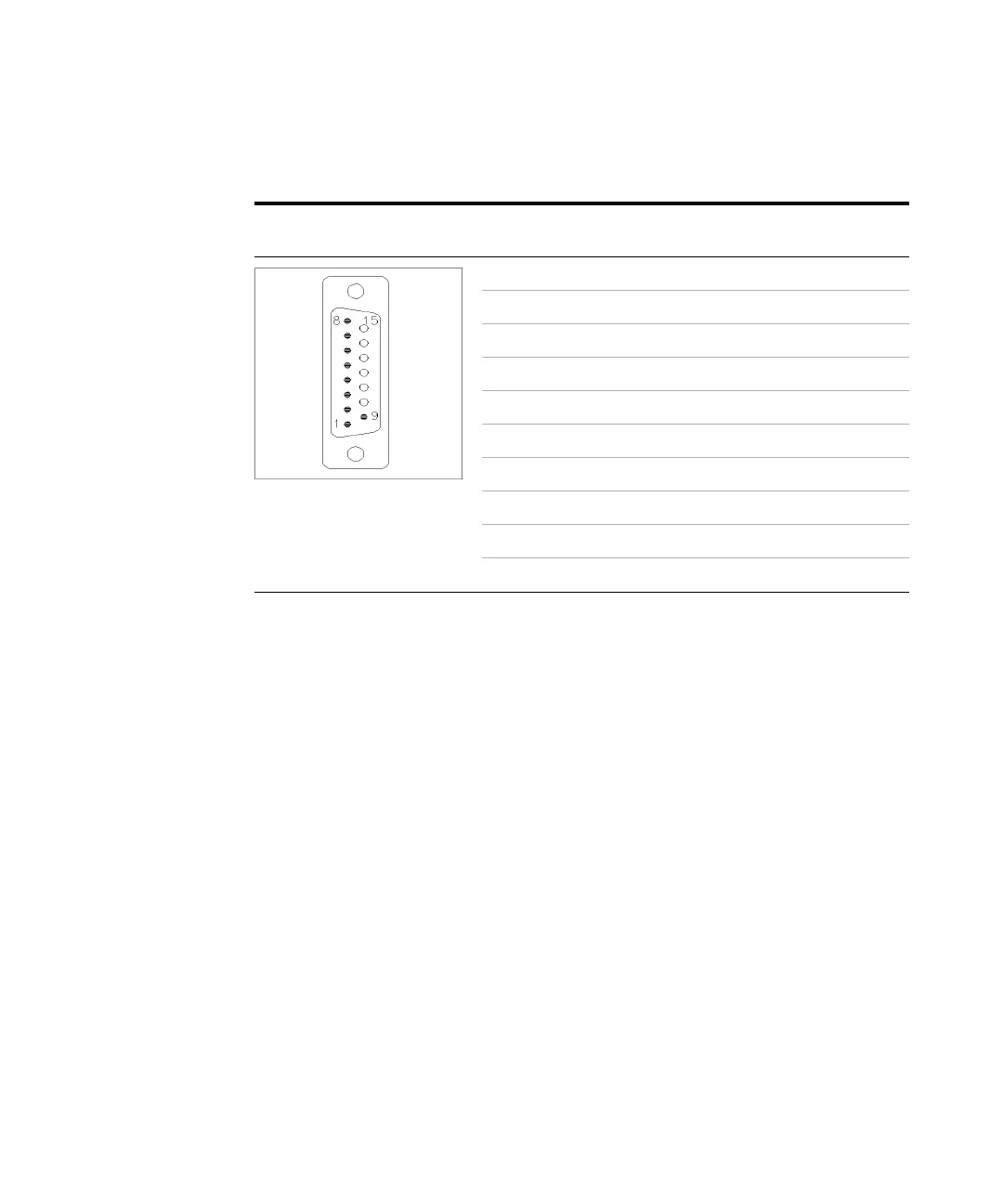

154 Agilent 1260 Infinity RID User Manual
11 Identifying Cables
BCD Cables
Agilent Module to 3396 Integrators
p/n 03396-60560 Pin 3396 Pin Agilent
module
Signal Name BCD Digit
11BCD 520
22BCD 780
33BCD 640
44BCD 410
55BCD01
66BCD 38
77 BCD 24
88BCD 12
9 9 Digital ground
NC 15 + 5 V Low
