28 Agilent 1260 Infinity RID User Manual
1 Introduction to the Refractive Index Detector
Interfaces

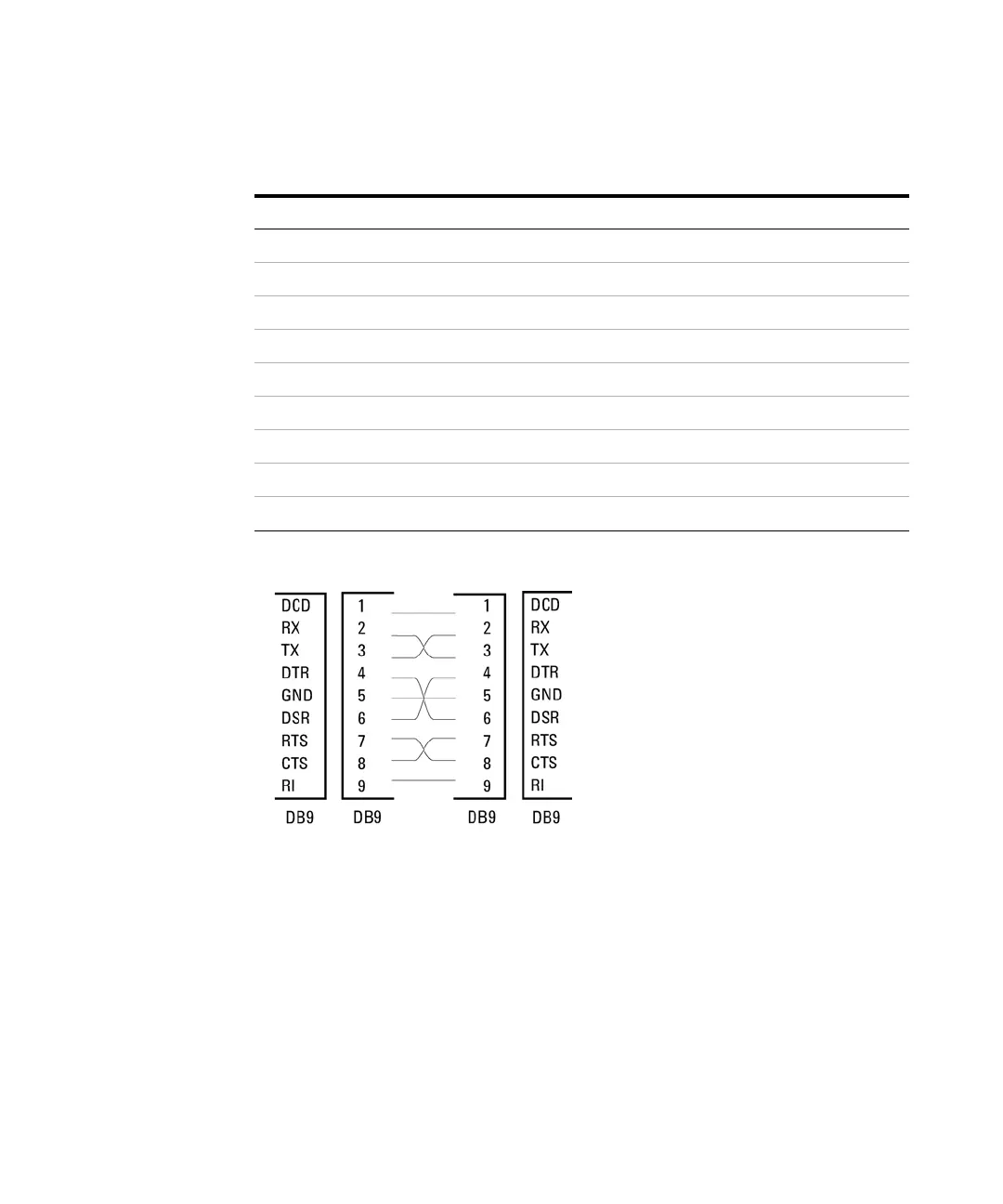

Figure 10 RS-232 Cable
Analog Signal Output
The analog signal output can be distributed to a recording device. For details
refer to the description of the module’s main board.
Tab le 2 RS-232C Connection Table
Pin Direction Function
1In DCD
2In RxD
3Out TxD
4Out DTR
5Ground
6In DSR
7Out RTS
8In CTS
9In RI
>chigjbZci
E8
BVaZ ;ZbVaZ ;ZbVaZ BVaZ
