ANET3910-EN User’s Manual
6
2.2 Hardware Installation
Connect the external power supply (wall adapter) to the DC-power IN plug.
2.2.1 Connectors
The external interface of the ANET3910-EN consists of the following connectors:
• Front panel
- STANAG-3838
One 15-pin High Density DSUB connector
- STANAG3910 Frontend Connector
One 9-pin DSUB connector
• Back panel
- Trigger I/O, Discretes, IRIG I/O
Auxiliary 15-pin High Density DSUB connector for the Trigger Input/
Output signals, IRIG B Input/ Output for multi- channel time
Synchronisation and eight Discrete Input/ Output signals.
- Ethernet
RJ45 Ethernet plug, for connecting the ANET3910-EN with a
Network / Host
- USB
USB Type A host connector e.g. for connecting an external storage device
or an optional WLAN stick

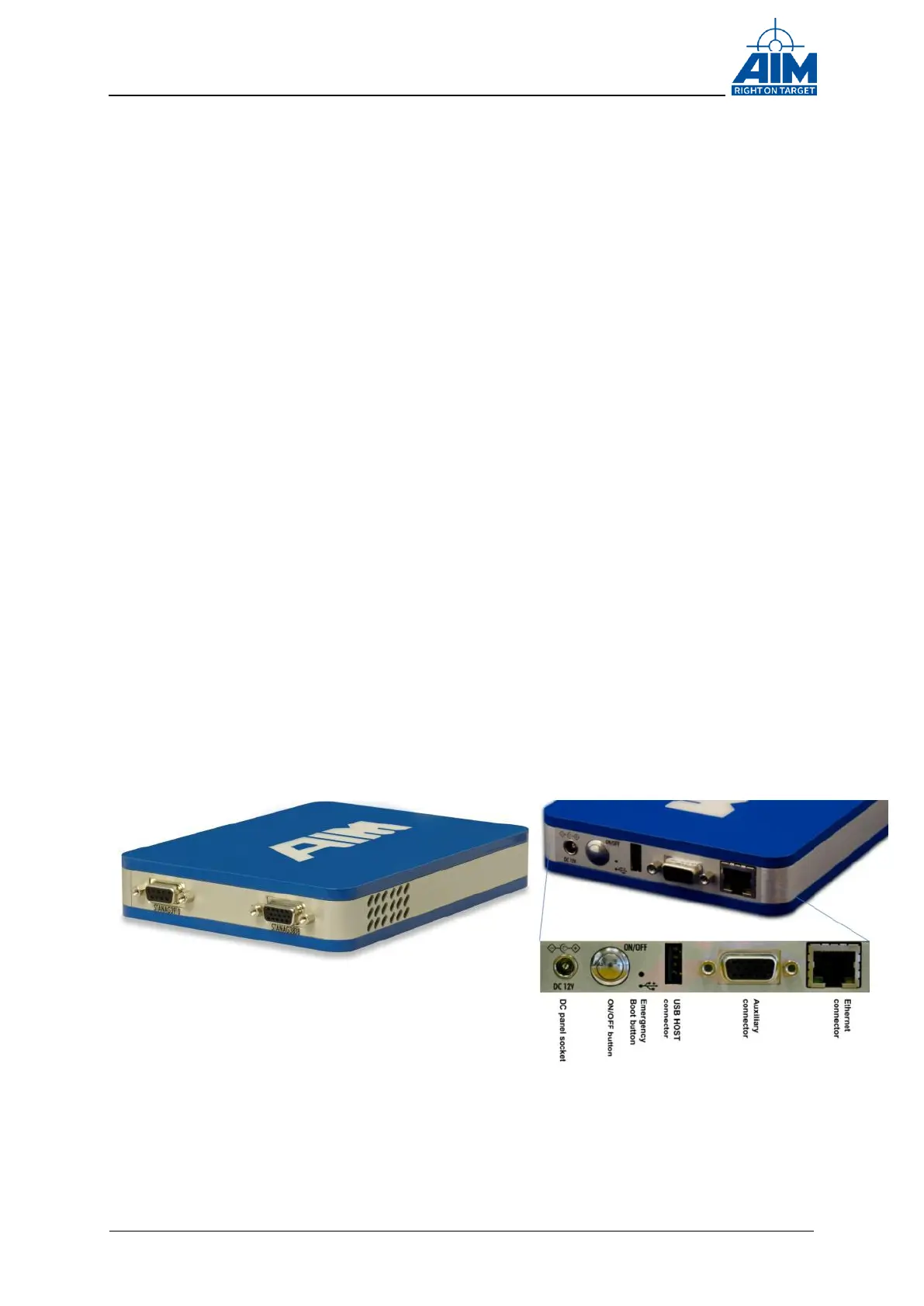

Figure 2-3 Front and Backpanel
