4. Structure of the ANET3910-EN

ANET3910-EN Users Manual

4.5.2 Physical STANAG3910 I/O Interface

The APX3910-EN provides an electrical STANAG3910 High Speed transceiver.

4.5.2.1 Electrical characteristics

 Characteristic Input-Impedance: 50 

 TX-Output Voltage: 6.0V ... 9.0V

 RX-Input Voltage: 0.15V ... 2.0V

4.5.2.2 Structure of electrical STANAG3910 Bus

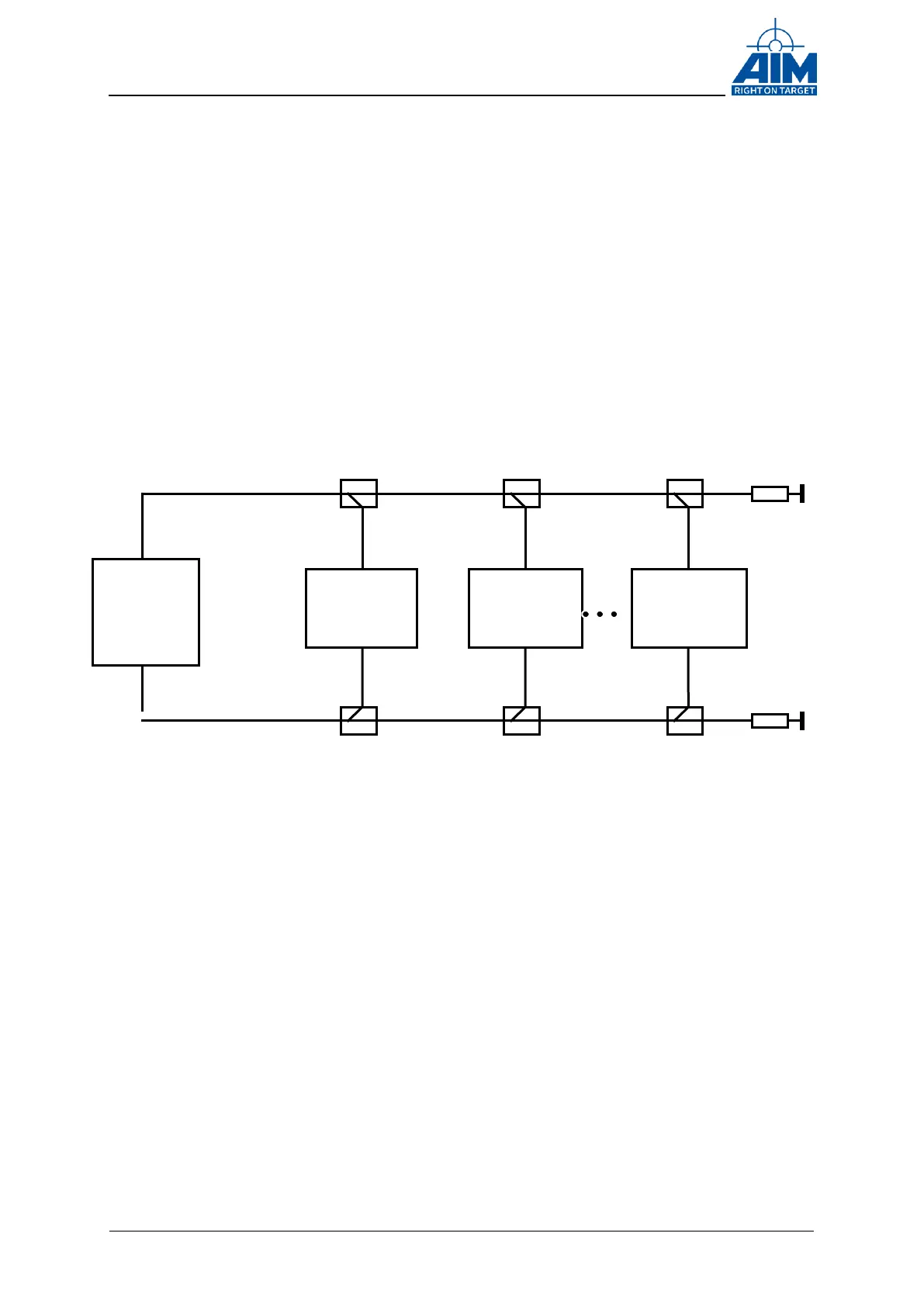

The general function of the electrical 3910 Bus system is shown in the following picture:

Terminal

Central

Repeater

Termination

R = 50 

Directional

Coupler

Figure 4-4 Structure of an electrical STANAG3910 HS-Bus
