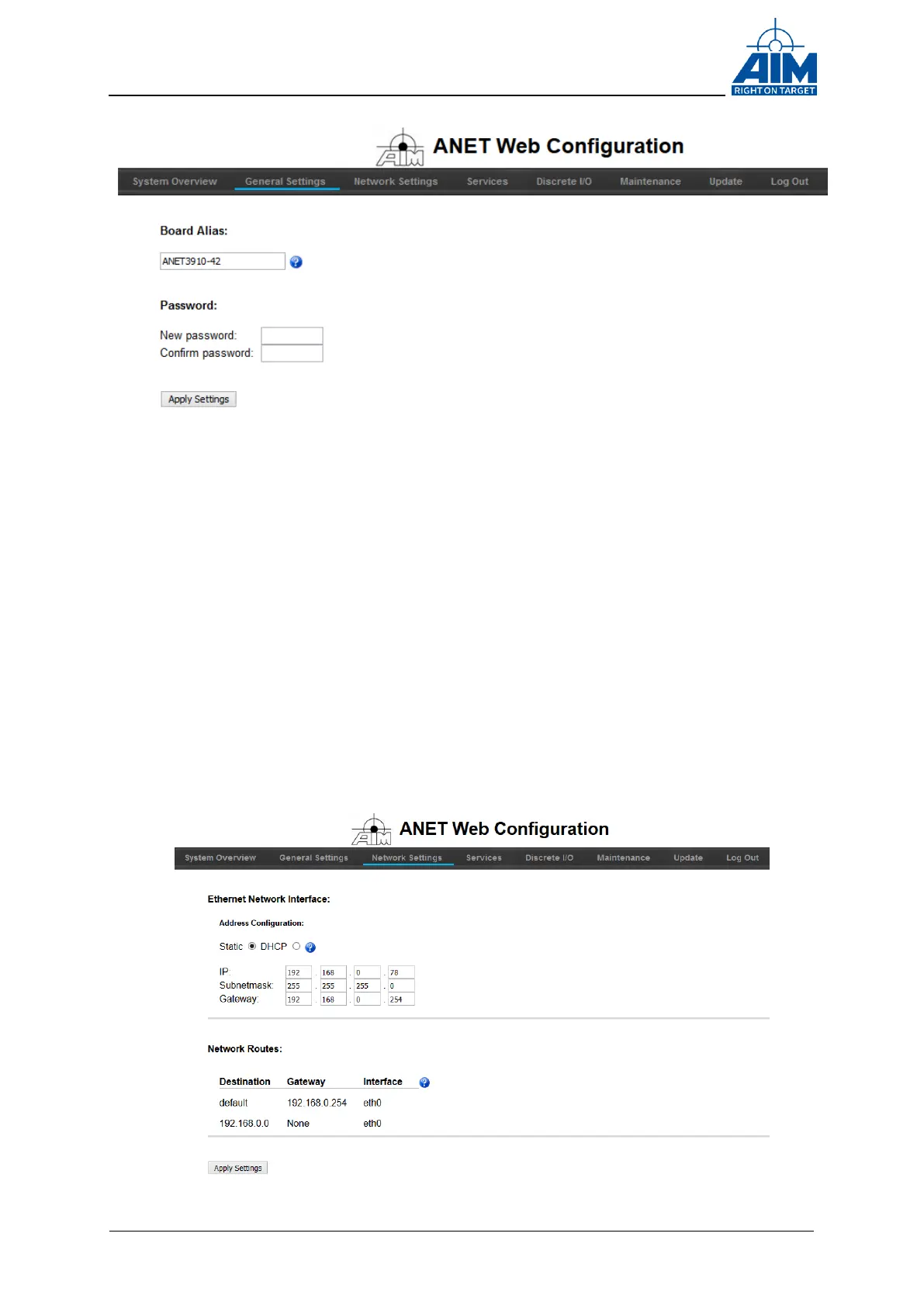

Figure 3-5 ANET Web Configuration Tool “General Settings”
Note: When changing the alias name the ANET3910 can’t be accessed by the former alias
name anymore. Make sure to adapt your applications to the new alias name.
The default alias is ANET3910-<x>, x= Serial Number. 3. Getting started
ANET3910-x User’s Manual 15
Note: It is recommended to change the password (default = “aim”) when using the
ANET3910 module the first time.
3.1.4.2 Setting the IP-Address
Click on the Network Settings tab in the navigation bar. You will now see a page where
you can set either a static or dynamic (DHCP) IP address and choose a board alias.
When selecting static configuration, you will also be able to enter the subnetmask and
default gateway for your network:
Figure 3-6 ANET Web Configuration Tool “Network Settings”
