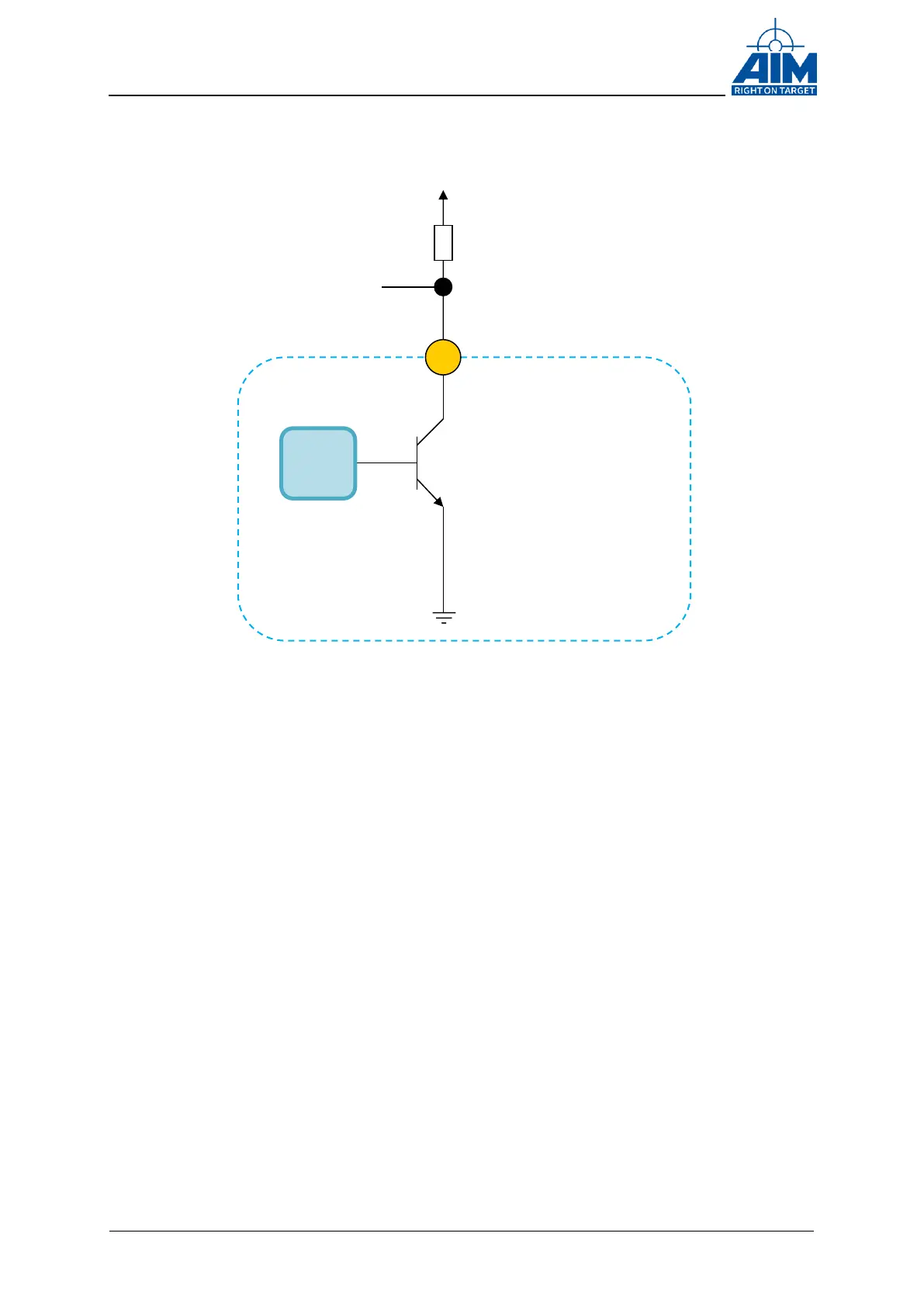

Figure 4-6 Discrete I/O-Pin off board user series resistor
4.6 ASP Section
The Application Support Processor (ASP) is part of the dual core processor system in
the FPGA/SoC and running under an embedded LINUX Operating System.
The SoC hardware offers a built-in Ethernet interface, which is used for the
implementation of the host connection via a Standard Ethernet RJ-45 connector.
Furthermore, the also SoC built-in USB interface has been made available to the user
for mounting external mass data storage devices or e.g. a WLAN stick for wireless.
Discrete IO-Pin
Front Connector
Off-Board User Voltage
Customized
Discrete
Output
Rserial
ANET3910 Board
GND
FPGA
Output
Pin
