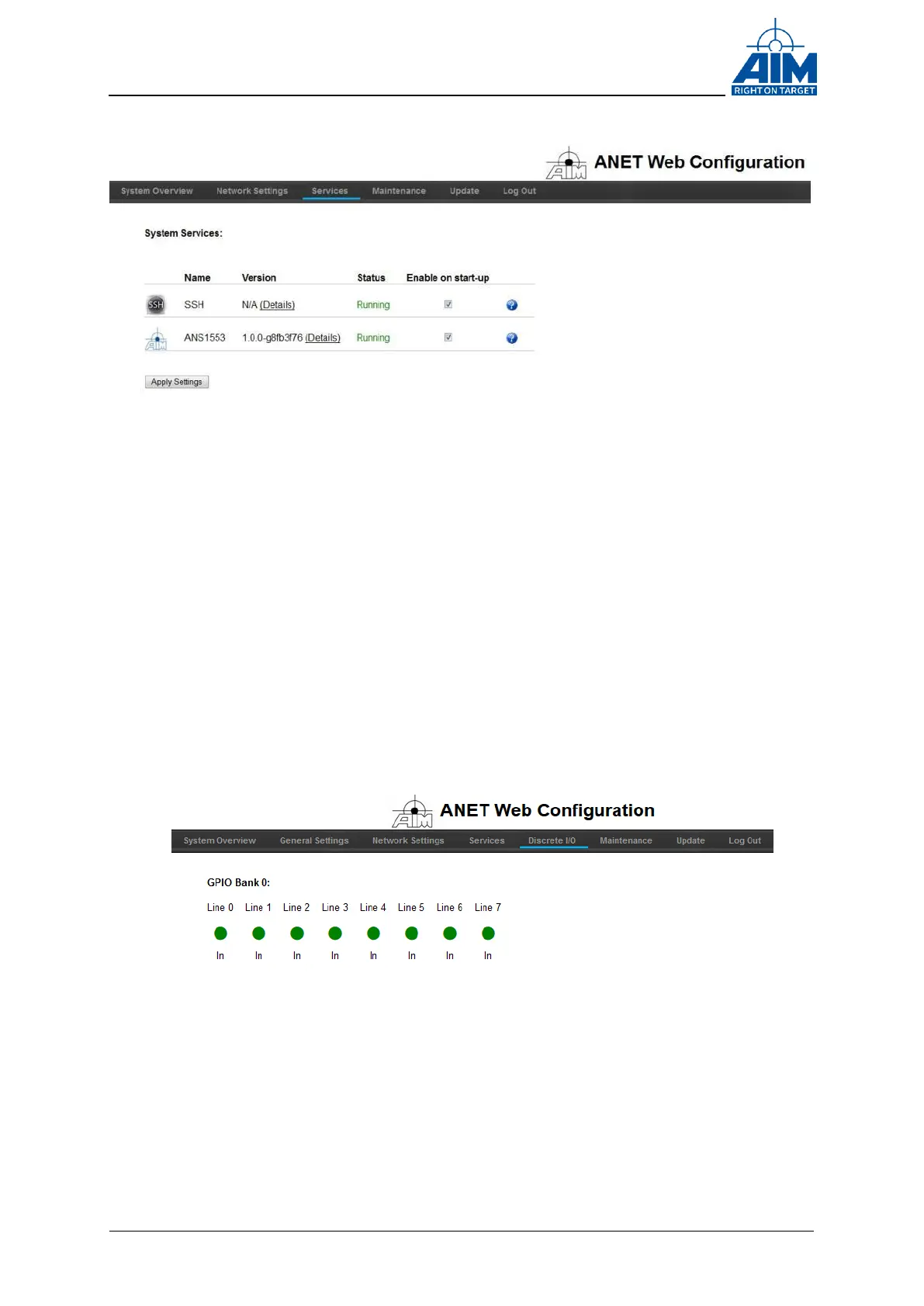

Figure 3-8 ANET Web Configuration Tool “Services”
3.1.4.5 Discrete I/O
Click on the Discrete I/O tab in the navigation bar (see the figure below).
Shows GPIO states.
Figure 3-9 ANET Web Configuration Tool “Discrete I/O”
3.1.4.6 Check System Log-File
Click on the Maintenance tab in the navigation bar (see the figure below).
“System Logs” provides the system Log-Files in different file formats. The System
Status Log-Files are available in the HTML-, Plain- (ASCII-Text file) or XML-Format.
