ANET3910-EN User’s Manual
32
3.2 Breakout Cables
3.2.1 Breakout Cable ACB-HD15-1
Ready-made Adaptor Cable (2 metres) from 15 Pin High-Density D-Sub (ANET3910-EN
side) to 2 x Twinax Connectors.
Pin
No.
Signal Type
1
MIL_BUS_PRI
MILBUS Primary Channel (true)
2
MIL_BUS_PRI#
MILBUS Primary Channel (complement)
3
Electrical Ground
4
MIL_BUS_SEC
MILBUS Secondary Channel (true)
5
MIL_BUS_SEC#
MILBUS Secondary Channel (complement)
6
n.c.
not connected
7
n.c.
not connected
8
n.c.
not connected
9
n.c.
not connected
10
n.c.
not connected
11
n.c.
not connected
12
n.c.
not connected
13
n.c.
not connected
14
n.c.
not connected
15
n.c.
not connected
Note: D-Sub Metal-Case is connected to cable-shield

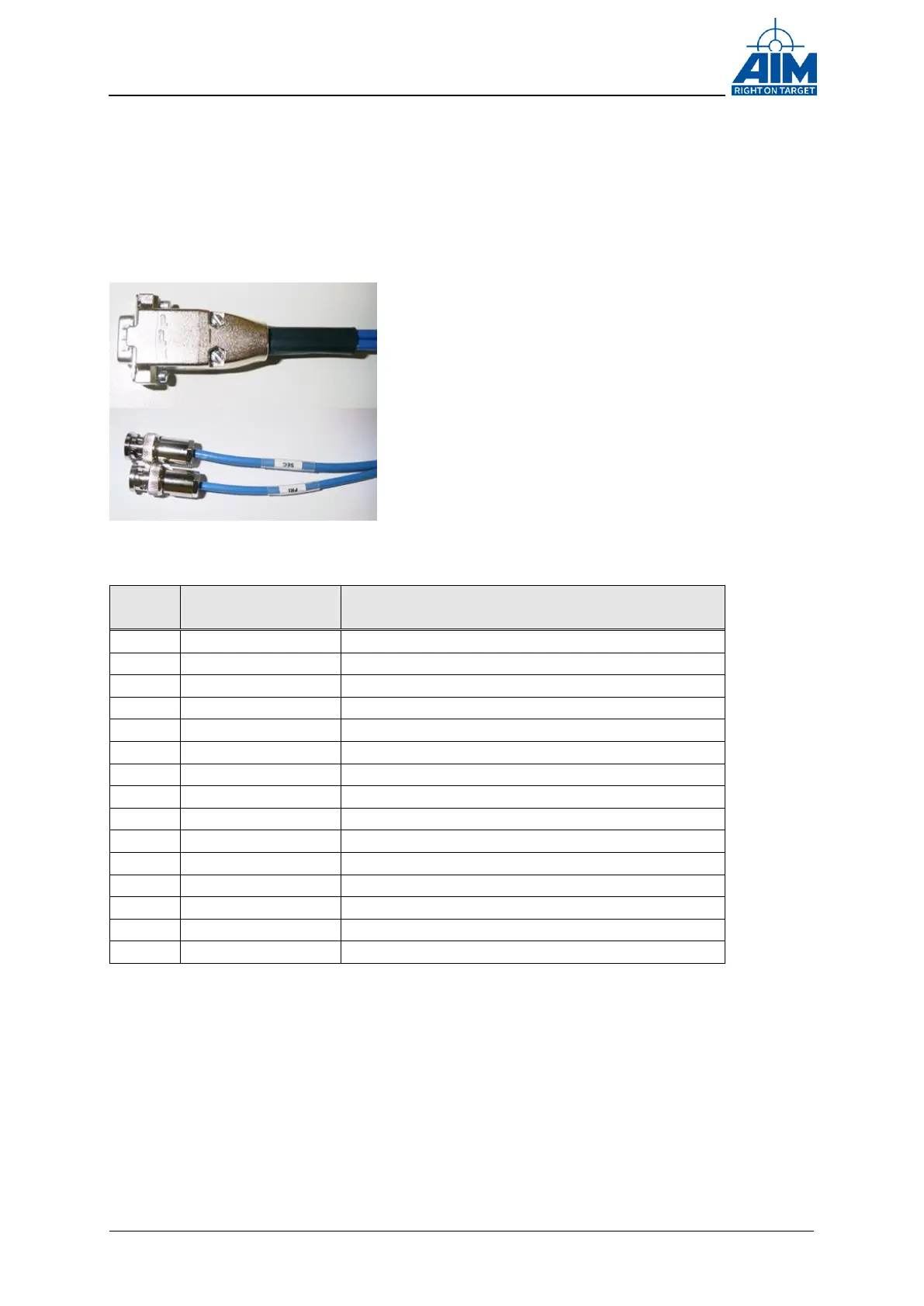

Figure 3-25 Breakout Cable ACB-HD15-1
