2. Installation
ANET3910-EN Users Manual
7
2.2.1.1 STANAG3838/MIL-STD-1553 Interface Connectors
For connecting to the external MIL-STD-1553/STANAG-3838 Bus, a female High
Density DSUB15 connector is provided.
The pinout is shown below:
Pin No.
Signal-Type
Comment
1
MIL_BUS_PRI
STANAG-3838 Primary Channel (true)
2
MIL_BUS_PRI#
STANAG-3838 Primary Channel (complement)
3
GND
Ground
4
MIL_BUS_SEC
STANAG-3838 Secondary Channel (true)
5
MIL_BUS_SEC#
STANAG-3838 Secondary Channel (complement)
6 - 15
Reserved
2.2.1.2 Electrical STANAG3910 Interface Connector
For connecting the electrical STANAG3910 Bus to the ANET3910-EN Front end, a
DSUB9 connector is provided.
The pinout is shown below:
Pin No.
Signal
1
not connected
2
not connected
3
Aircraft-GND (Shield)
4
not connected
5
not connected
6
Aircraft-GND (Shield)
7
HS-BUS TX
8
Aircraft-GND (Shield)
9
HS-BUS RX
Table 2.2.1.2-1 Pinout STANAG3910 Interface Connector

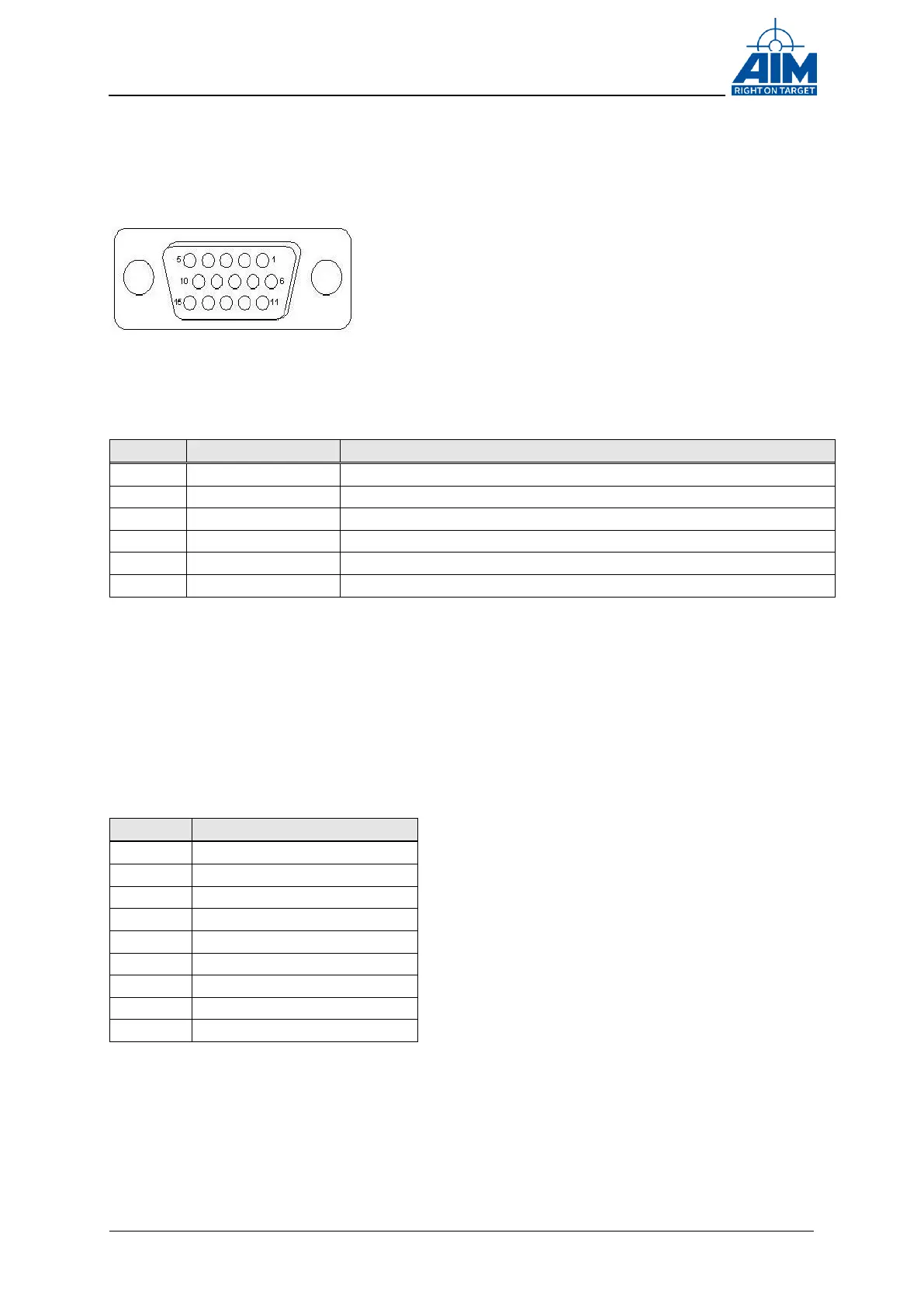

Figure 2-4 MILbus (STANAG-3838) Connector (front view)
