Now run the executable and follow the installation instructions. After successful
installation, you have to reboot the configuration PC.
3.1.3.2 Using the AIM Network Detection Tool
The AIM Network Detection Tool is part of delivery and provided on the ANET3910-EN
Software-DVD. Run the aim-net-finder.exe executable from the directory of the
ANET3910-EN Software-DVD to start the AIM Network Detection Tool. After some
seconds, it will show all ANET3910-EN modules visible in your network:
A double-click on any ANET3910-EN module in the list will open the default web
browser of the system and forward you to the web configuration page of the
corresponding ANET3910-EN module.
The module’s IP address can also be resolved by the board’s alias which is shown left
to the IP address. In this example the alias is ANET3910-5 (ANET3910-<x>
x= Serial Number).
Just enter the alias in the address bar of the Web Browser appended by a “.local” (e.g.
ANET3910-5.local) to connect to the module’s corresponding web configuration page.
3.1.4 Configuring the ANET3910-EN
Configuration of ANET3910-EN modules is solely performed with a web browser. Enter
the IP address or the board alias name in the web browser address bar to connect to
and to configure the ANET3910-EN.

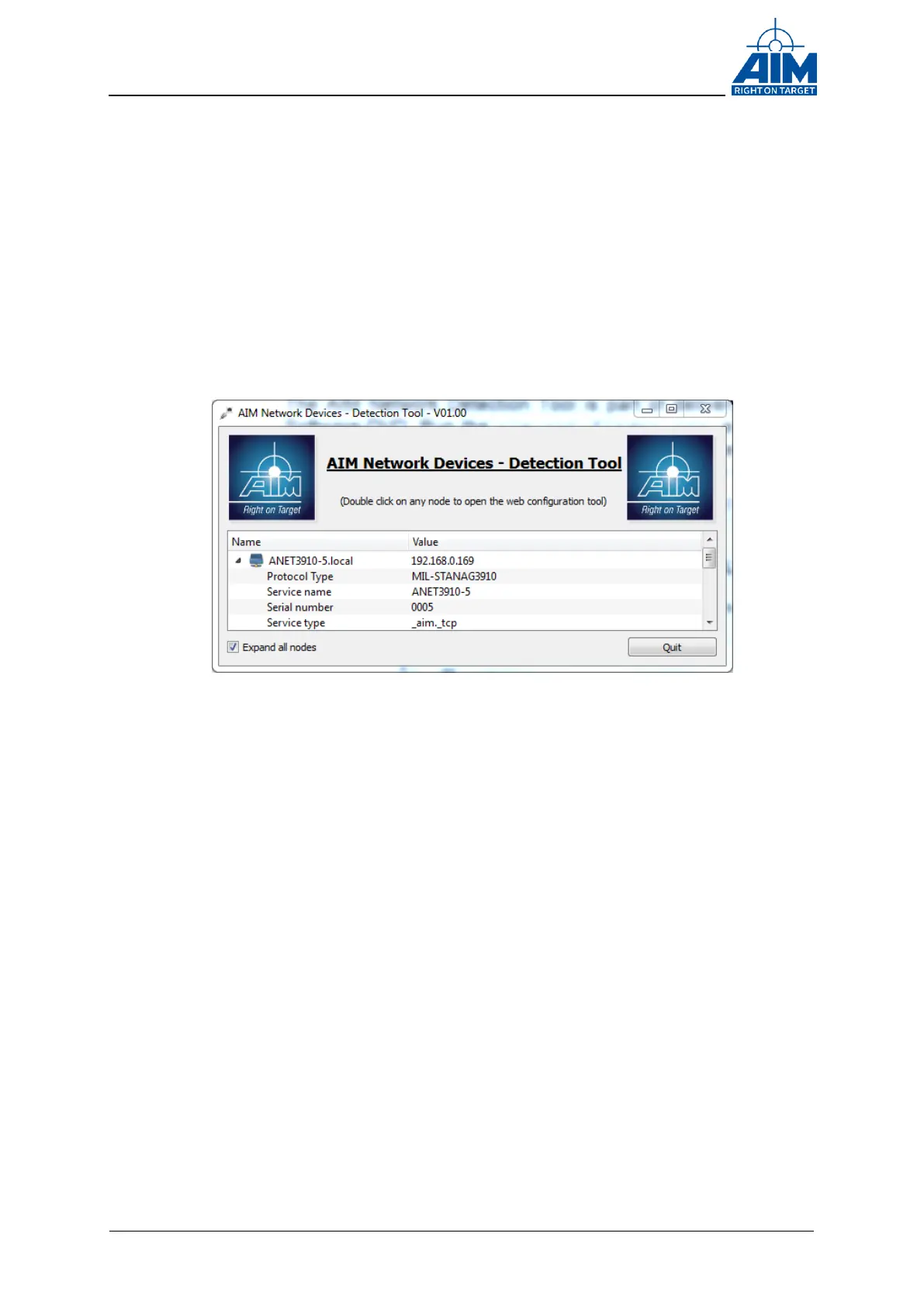

Figure 3-3 AIM Network Detection Tool
