Aim STANAG3910 User Manual

3. Getting started
ANET3910-EN Users Manual
31
3.1.9 Connecting the ANET3910-EN to the STANAG3910 electrical HS-Bus
The ANET3910-EN provides a STANAG3910 on board electrical Frontend.
For connecting the electrical High-Speed Bus to the ANET3910-EN Front end, a
DSUB9 connector is provided.

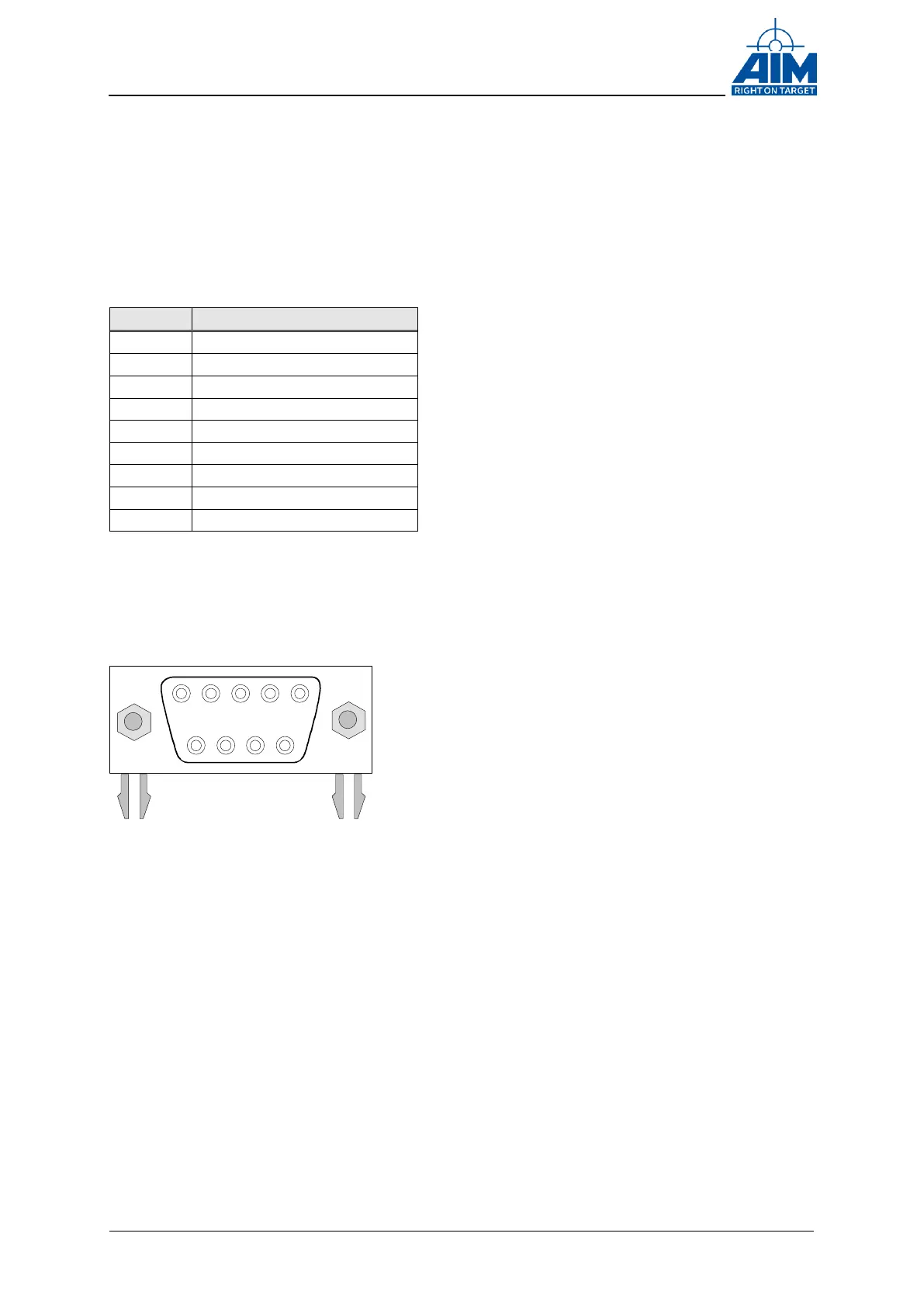

The pinout of the DSUB9 connector is shown below:
Pin No.
Signal
1
not connected
2
not connected
3
Aircraft-GND (Shield)
4
not connected
5
not connected
6
Aircraft-GND (Shield)
7
HS-BUS TX
8
Aircraft-GND (Shield)
9
HS-BUS RX
Table 3.1.99-1 Pinout DSUB9 connector
1
6
5
9
(front view)
9 Pin DSUB (female)
Note:
The Aircraft-GND is galvanic de-coupled from the ANET3910-EN on board GND, it ends
at the primary side from the 3910 electrical transformer.
Figure 3-24 DSUB9 Front-View
