ANET3910-EN User’s Manual
Note: For viewing the XML Log-Files a XML-Editor is necessary.
3.1.4.7 Re-Boot or Shutdown over Ethernet
Click on the Maintenance tab in the navigation bar (see the figure below).
It is possible to reboot or shutdown (power down) the module over Ethernet using the
Reboot or Shutdown function in this Tab.
3.1.4.8 Reset Settings to Factory default
Click on the Maintenance tab in the navigation bar (see the figure below).
“Reset To Factory Defaults” allows to reset all settings to the factory defaults.
To do this first go to the Update Tab and re-boot the ANET3910-EN to Maintenance
mode by a mouse click to the “Reset to maintenance system” button. Then wait until the
ANET3910-EN is in Maintenance mode. Log-In again and go back to the Maintenance
Tab to press the OK button on “Reset all settings now”.
After resetting the settings, the password will be set to the factory default (“aim”), the
Network Settings will be set to DHCP mode and the services SSH and ANS1553 will be
enabled.

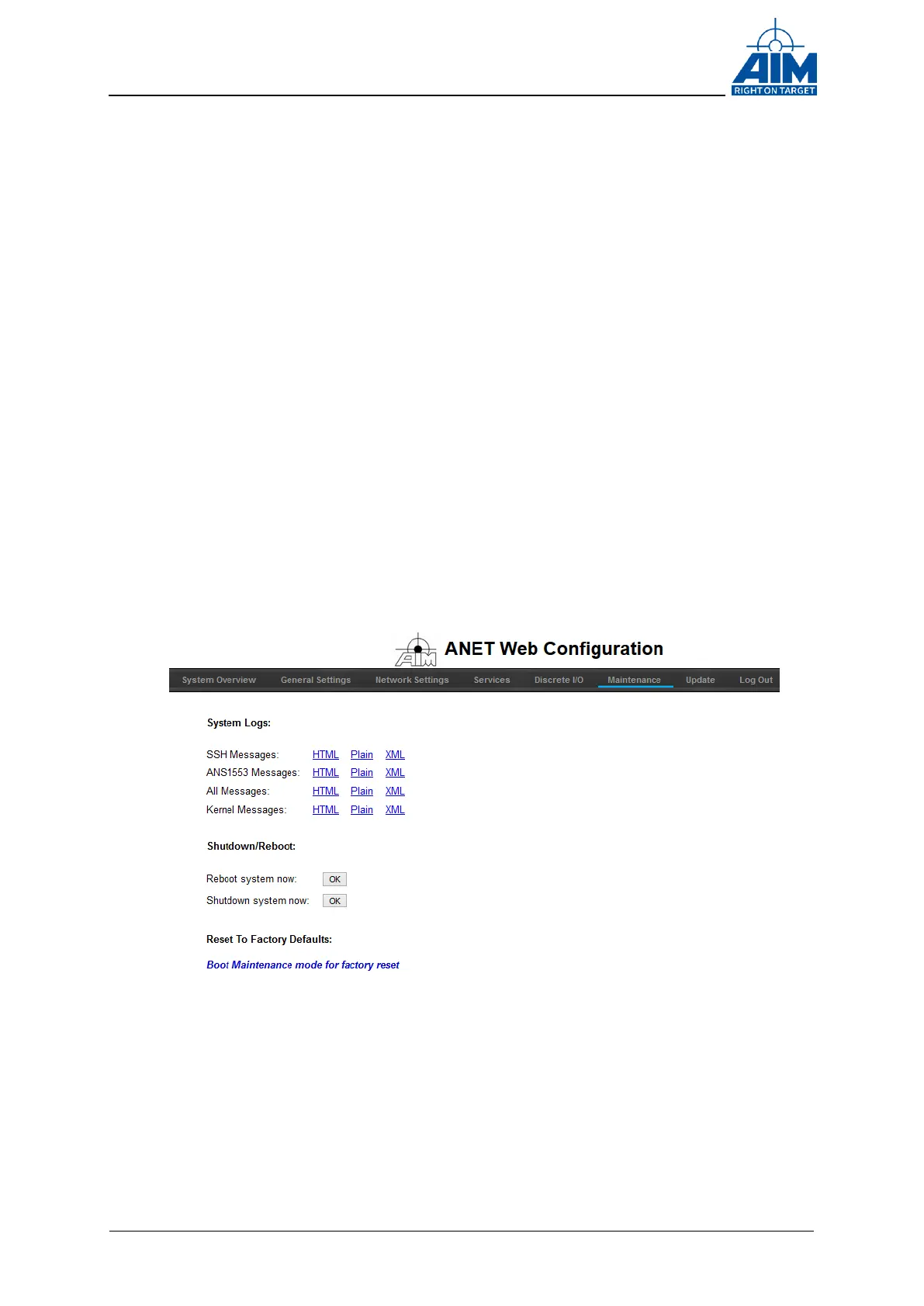

Figure 3-10 ANET Web Configuration Tool “Maintenance”
3.1.5 Updating the ANET3910-EN module
Click on the “Update” tab in the navigation.
Re-boot the ANET3910-EN to switch to maintenance mode.
Wait until the re-boot has been finished, then log-in (re-connect) to the ANET3910-EN
again. Click again on the “Update” tab in the navigation bar and choose the update-file
(<filename>.tar.gz), e.g. anet3910-update.tar.gz and start the update. The default
