3.1.8.3 Network Emulation Coupling
Network Emulation Coupling is a special option for the ANET3910-EN.
The AIM design includes on-board Bus Network circuitry that is software selectable.
This allows the user to connect the Low Speed Bus directly to a single terminal device
without the need for any bus coupling. The Network Coupling mode, selected by the
user via software controls, provides a terminated MILbus network simulation on the
ANET3910-EN to allow a direct connection between the ANET3910-EN and the
external terminal.
3.1.8.4 Isolated Coupling
In Isolated Coupling mode the Low Speed Bus of the ANET3910-EN is physically
disconnected from the ANET3910-EN frontend connector via relays.
ANET3910-EN
(with on board
Bus Network)
RemoteTerminal
(Transformer
Coupled)
A B

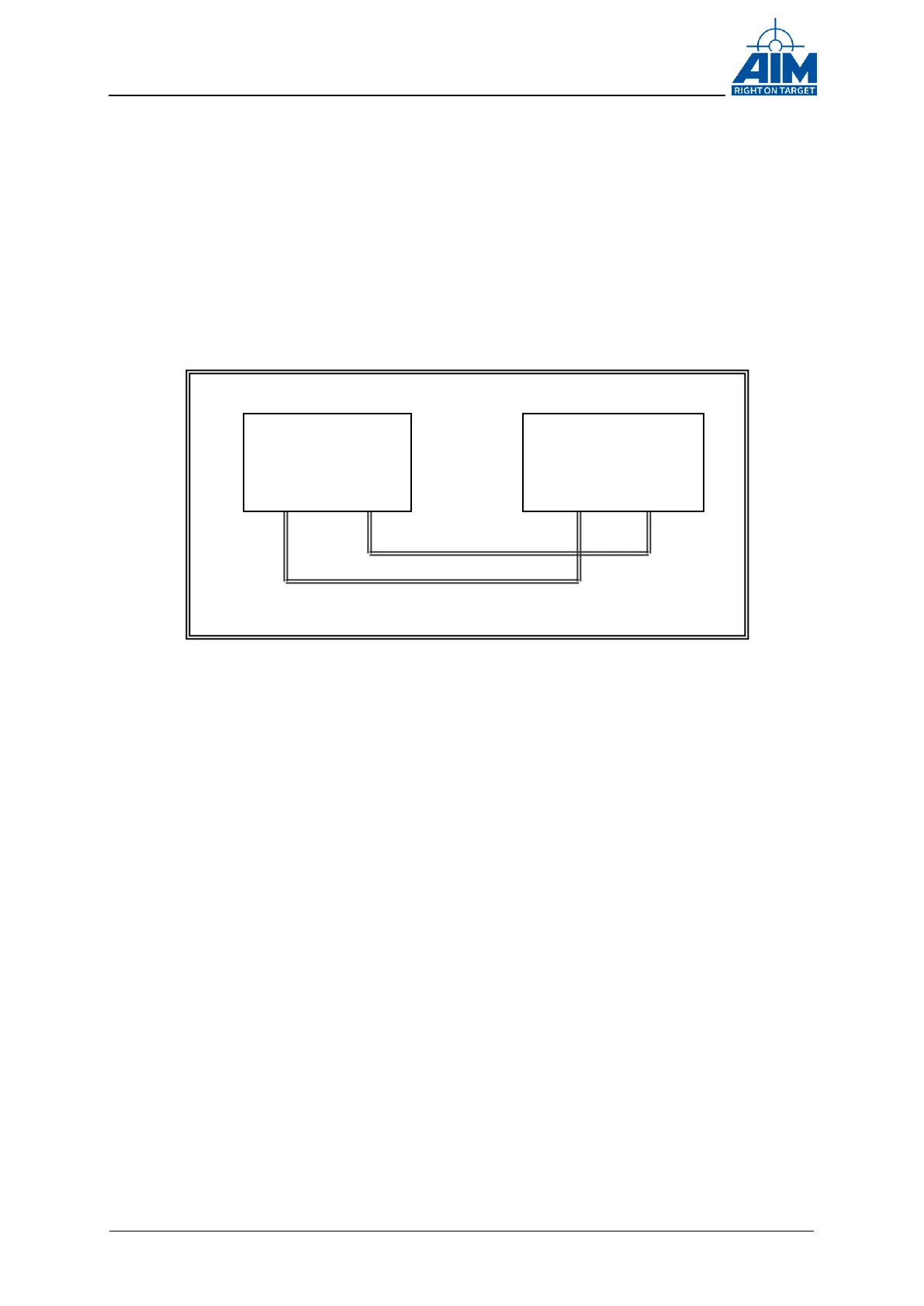

Figure 3-23 Network Emulation Coupling
