REPLACEMENT OF MAIN COMPONENTS

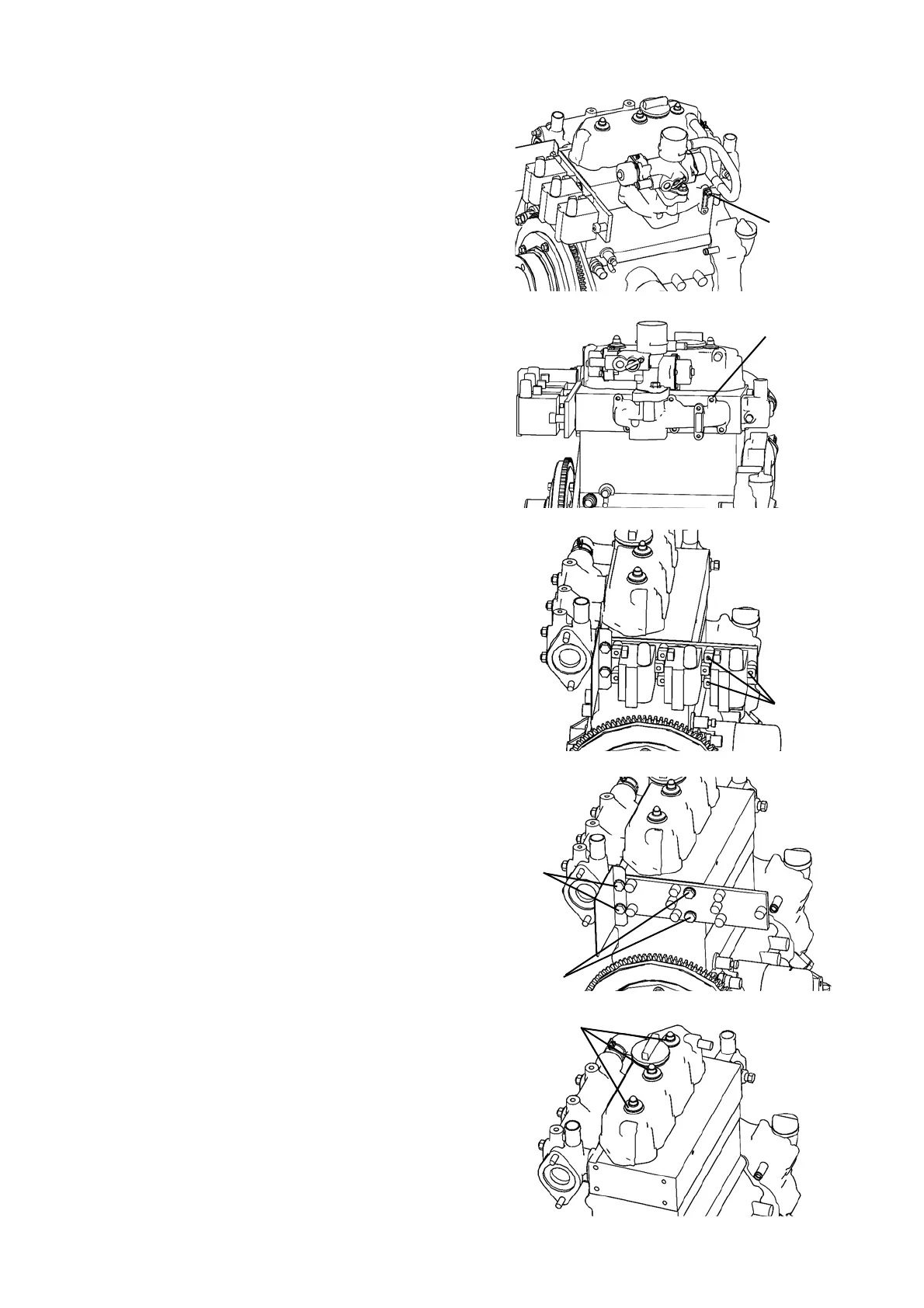

7. Remove the surrounding parts of cylinder head.
1) Unscrew a bolt to remove the blow-by hose.
2) Unscrew 6 bolts to remove the intake manifold.
3) Unscrew the 3 bolts (3 places) and remove the
3 ignition coils.
4) Unscrew 4 bolts to remove the 2 stays.
5) Loosen 3 nuts to remove the cylinder head cover.
Bolt
Bolts (6 pieces)
Bolts
Bolts
Bolts
Nuts
To Next Page
