112
REPLACEMENT OF MAIN COMPONENTS

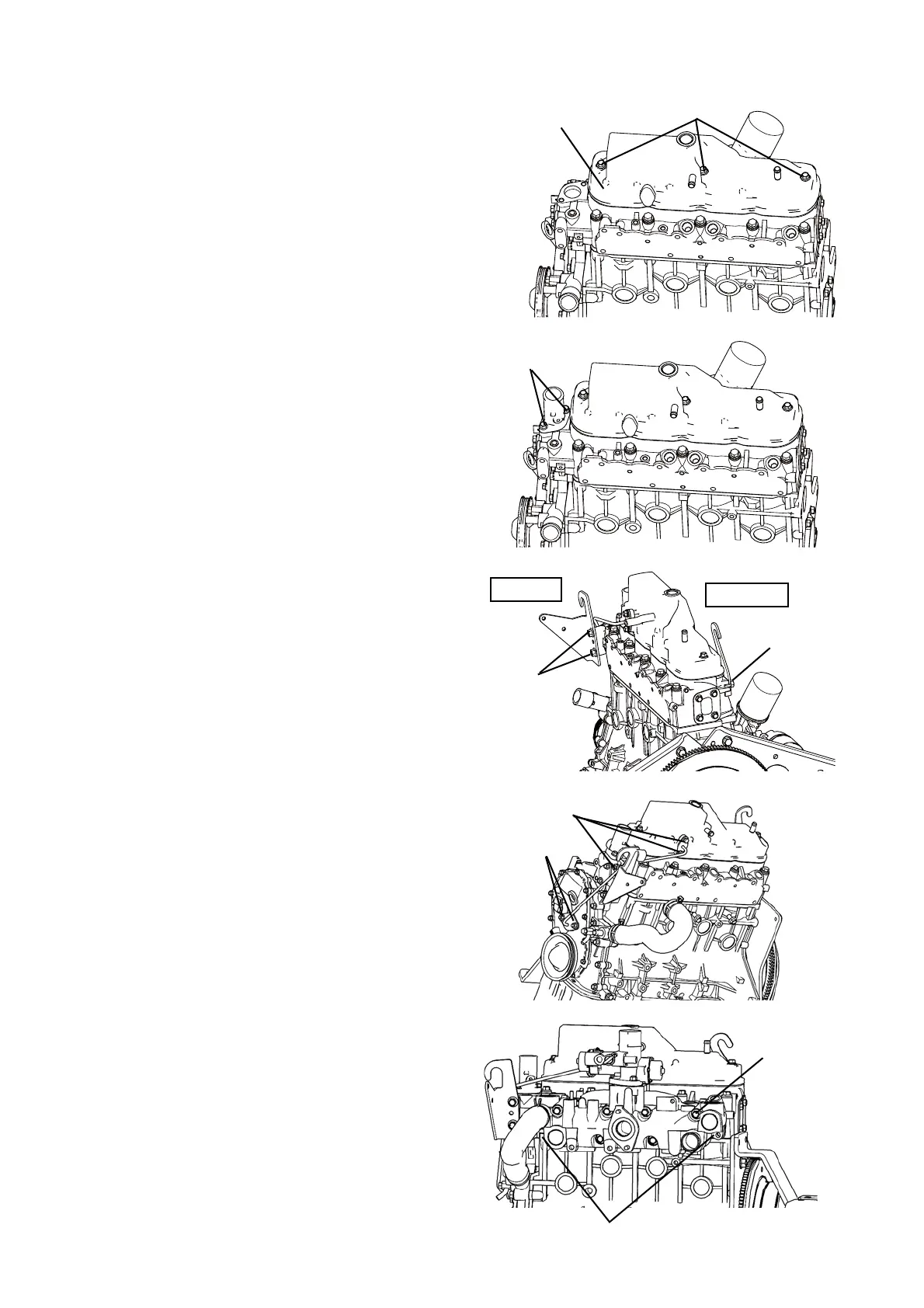

4. Mount the surrounding parts on the cylinder head.
1) Attach the cylinder head cover with 3 bolts.
2) Mount the water outlet bracket with 2 bolts.
NOTE) Replace the gasket before mounting the water
outlet bracket.
3) Mount the front side engine hanger with a bolt.
4) Mount the rear side engine hanger with 2 bolts.
5) Mount the oil return pipe with 3 bolts and 2 nuts.
6) Mount the exhaust manifold with 6 bolts and 2 nuts.
NOTE) Replace the gasket before mounting the
exhaust manifold.
Bolts
Cylinder head cover
Bolts
Bolts
Bolt
Front side
Rear side
Bolts
Nuts
Bolts (6 pieces)
Nuts
To Next Page
