REPLACEMENT OF MAIN COMPONENTS
NOTE) If the liquid refrigerant accumulates in the ac-
cumulator during recovery, warm and vapor-
ize the liquid refrigerant with a heat gun and
recover all refrigerant.
2. Perform the following work while recovering the
refrigerant.
1) Remove a clamp fixing the engine coolant pump
wire harness to the cover.
2) Remove 2 clamps fixing the engine coolant pump
wire harness to the engine coolant pump inlet side
hose.
3) Move the engine coolant pump inlet side hose
above the oil filter.
4) Cut off the bundling bands fixing the compressor
heater, compressor clutch (for only No.2 compres-
sor), and electromagnetic compressor capacity
valve wire harness.
NOTE) Take care not to damage or cut the wire har-
nesses when cutting the bundling bands.
NOTE) Confirm the current condition of the wire har-
nesses so that you can put the wire harnesses
back to the original condition with the bundling
bands when mounting the compressor.
5) Disconnect the connectors of compressor heater,
the clutch (No.2 compressor only) and the electro-
magnetic compressor capacity valve.
(Do not remove the heater at this time.)
6) Unscrew a bolt and remove the grounding wire.

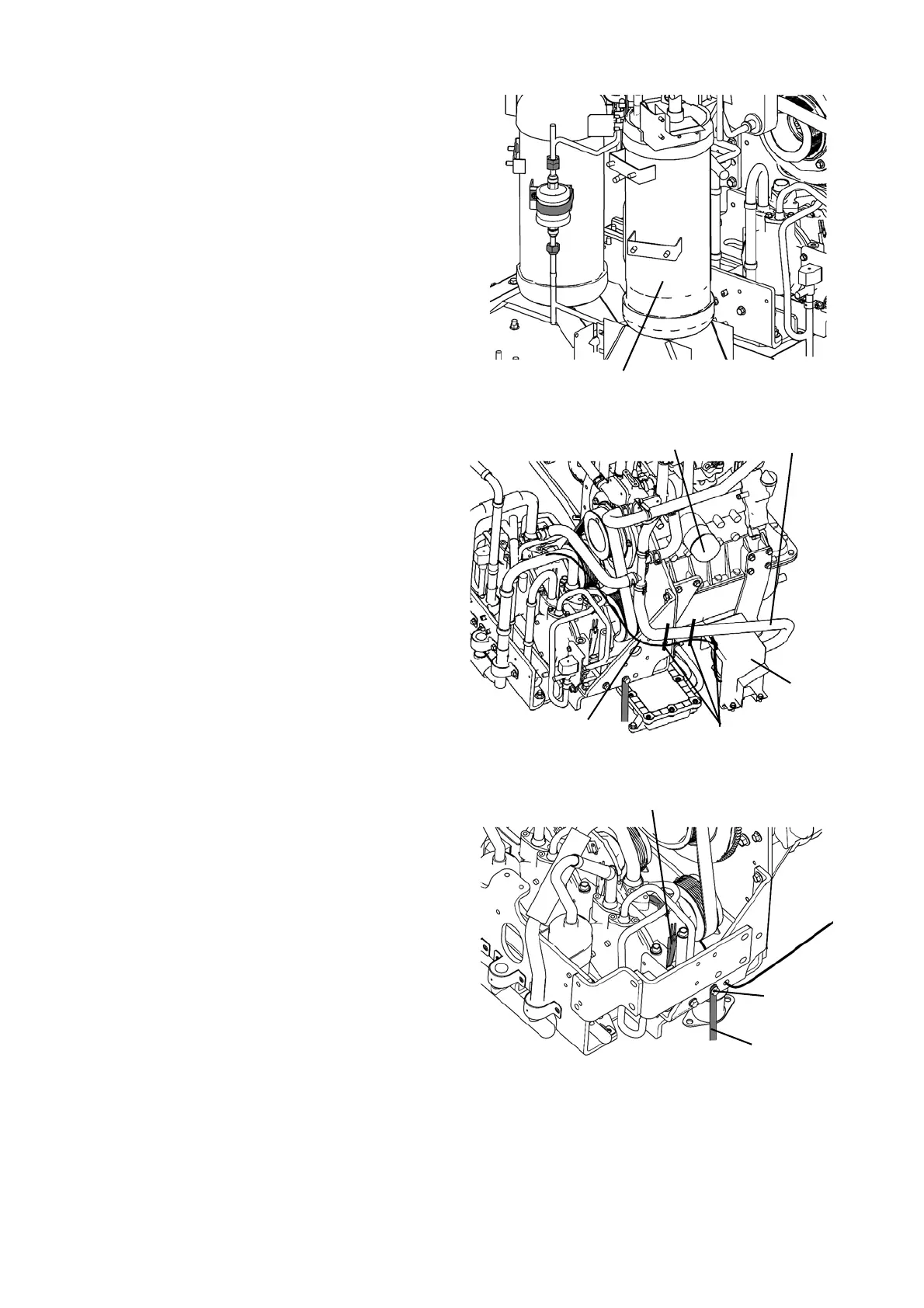

Accumulator
Inlet side hose
Oil filter
Cover
Clamps
Harness
Compressor heater
Bolt
Grounding wire
To Next Page
