37
Introduction
Intake Air and
Exhaust Air · · ·

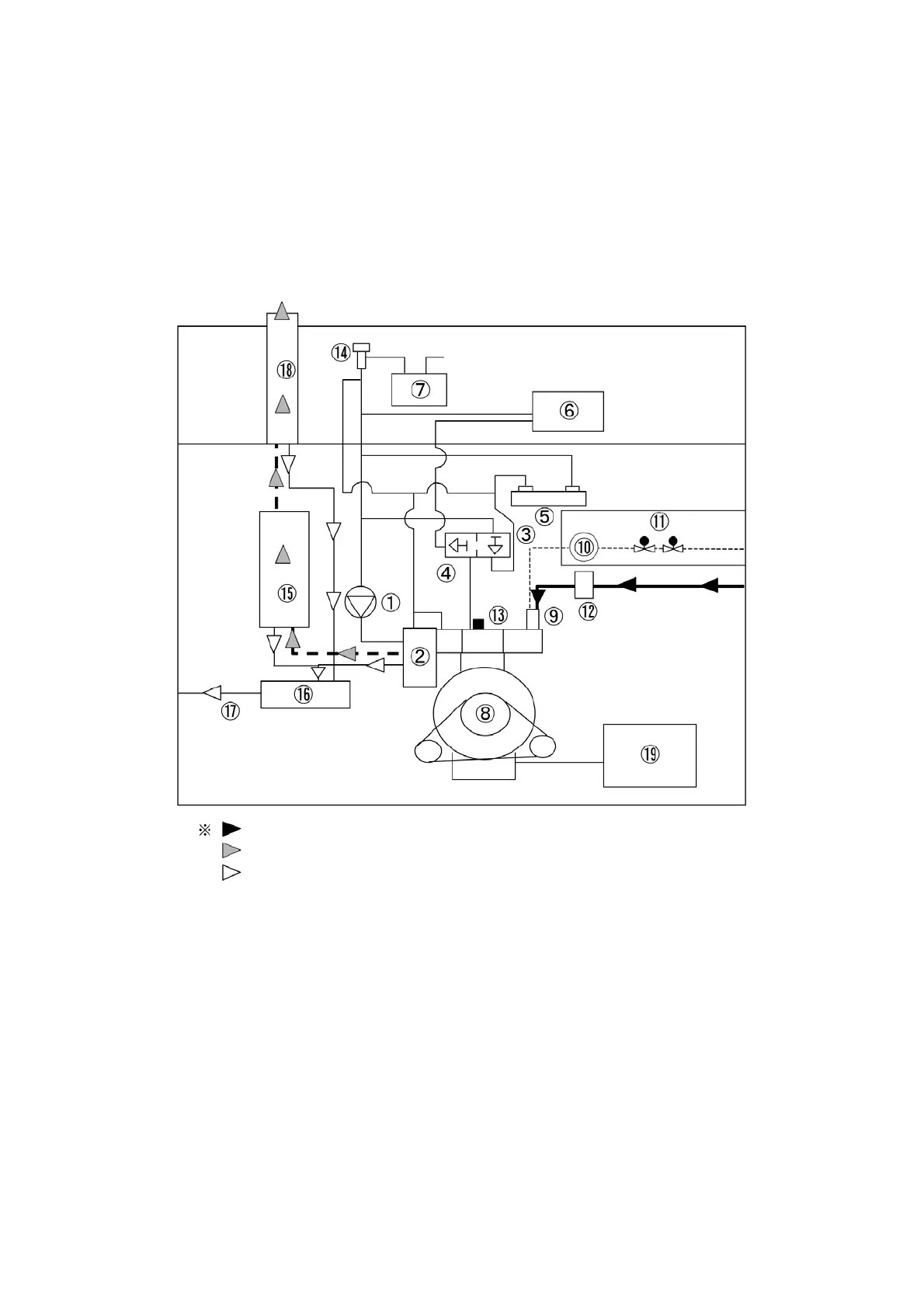

Intake air enters the gas mixer ( ) through the air filter ( ) to be mixed with the fuel. The air/fuel
mixture then flows into the engine ( ) cylinder.
Exhaust air dissipates heat at the exhaust air heat exchanger ( ), and is emitted into the atmo-
sphere through an exhaust air pipe ( ) and an exhaust water drain trapper ( ).
Condensed water produced by exhaust air heat dissipation is neutralized at the exhaust water
drain filter ( ), and discharged from the unit through the exhaust water drain hose ( ).
: Engine coolant pump : Engine : Exhaust muffler
: Exhaust air heat exchanger : Gas mixer : Exhaust water drain filter
: Thermostat (140 (60 ) : Gas regulator : Exhaust water drain hose
: Thermostat (158 (70 ) : Electromagnetic gas valve : Exhaust water drain trapper
: Sub heat exchanger : Air filter : Sub oil reservoir
: Radiator : Engine coolant temperature sensor
: Engine coolant reserve tank : Radiator cap
shows the intake air flow direction
shows the exhaust air flow direction
shows the condensed water flow direction
