REPLACEMENT OF MAIN COMPONENTS

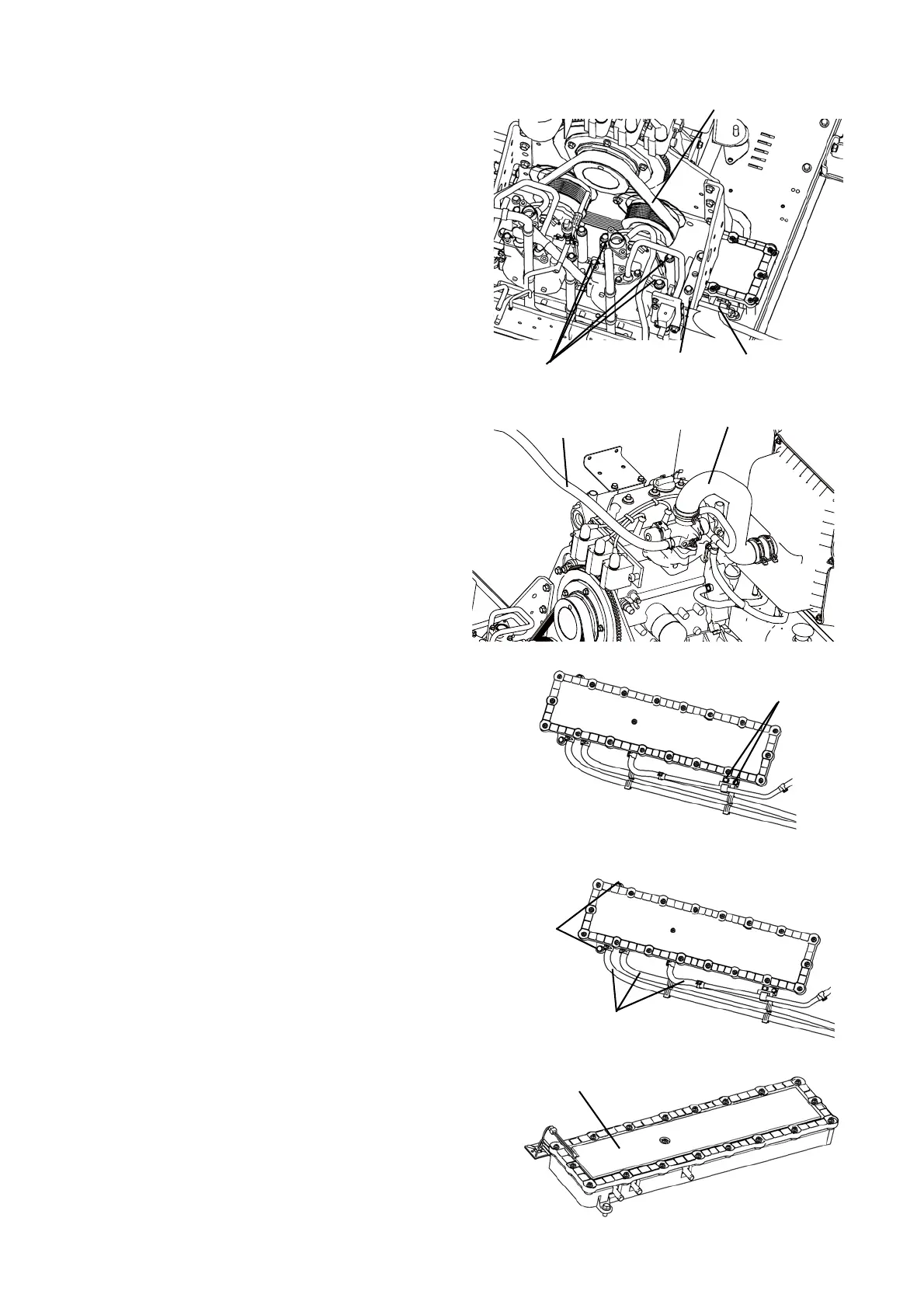

11. Remove the compressor belt.
1) Loosen a locknut and an adjustment bolt adequate-
ly.
2) Loosen 4 bolts in the front of the outdoor unit, and
remove the compressor belt.
12. Disconnect the air intake hose and the fuel gas hose
from the engine.
13. Remove the exhaust water drain filter box.
1) Unscrew 2 bolts to remove the stay.
2) Disconnect the 3 exhaust water drain hoses from
the box.
3) Unscrew 2 bolts to remove the box.
NOTE) Disconnect the connector of the exhaust water
drain filter if the drain heater kit is installed.
compressor belt
Bolts
Adjustment bolt
Locknut
Air intake hose
Fuel gas hose
Bolts
Exhaust water drain hoses
Bolts
Heater
