70
REPLACEMENT OF MAIN COMPONENTS

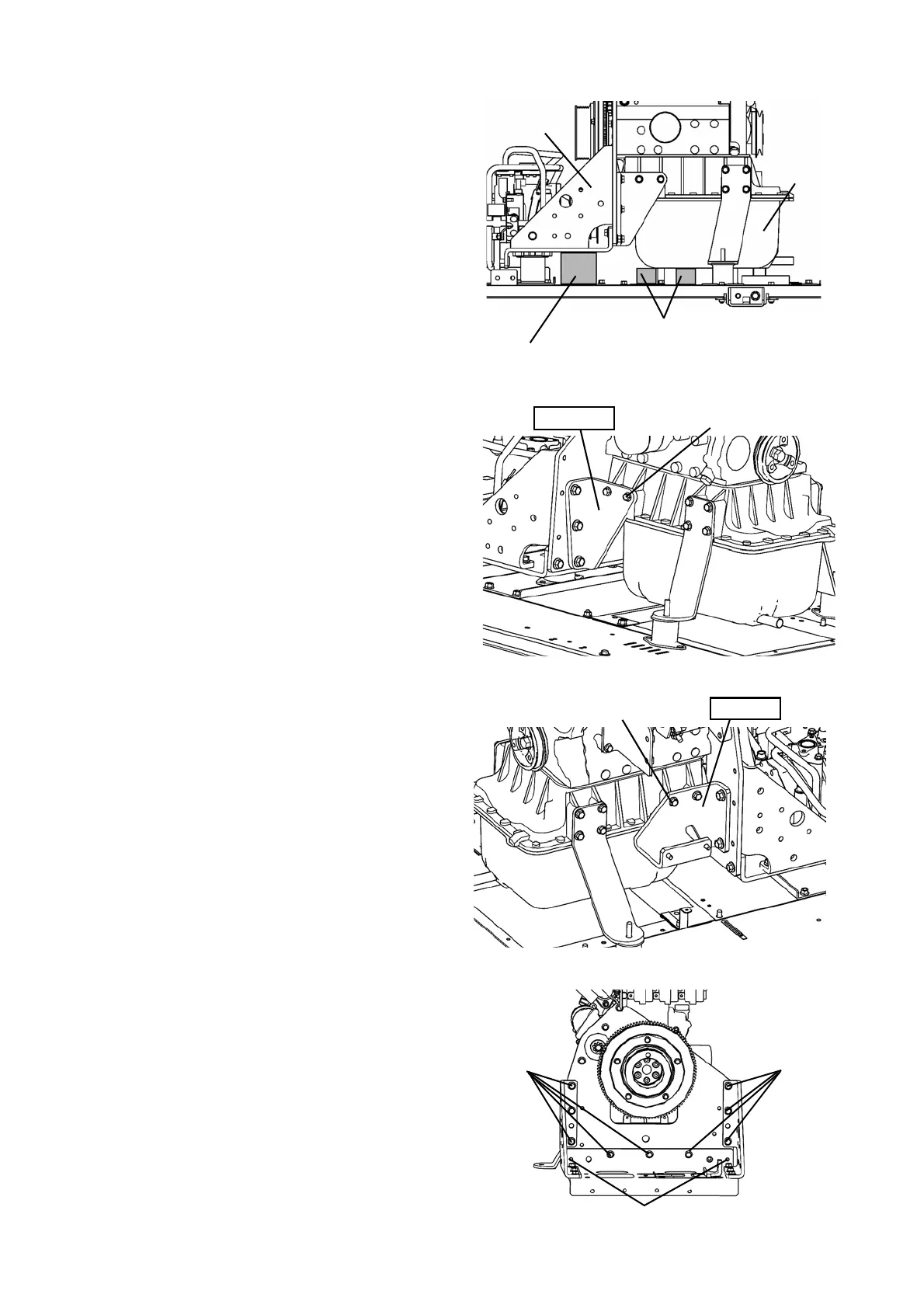

14. Dismount the engine.
1) Place a wooden block (thickness: approximately
3 inch (80 mm), length: 24 inch (600 mm) or longer)
under the compressor bracket.
2) Place 2 wooden blocks (thickness: approximately
1-1/2 inch (40 mm), length: 24 inch (600 mm) or
longer) under the oil pan.
3) Unscrew 5 bolts to remove the bracket (front side).
4) Unscrew 4 bolts to remove the bracket (rear side).
5) Unscrew 11 connecting bolts between the com-
pressor bracket and engine (2 of the bolts are
installed from the engine side), and separate the
compressor bracket from the engine.
Bracket
Oil pan
Wooden block (Thickness ： 3inch)
Wooden blocks (Thickness ： 1-1/2inch)
Bolts (5 pieces)
Front side
Bolts (4 pieces)
Rear side
Bolts
Bolts
Bolts (installed from the engine side)
To Next Page
