REPLACEMENT OF MAIN COMPONENTS

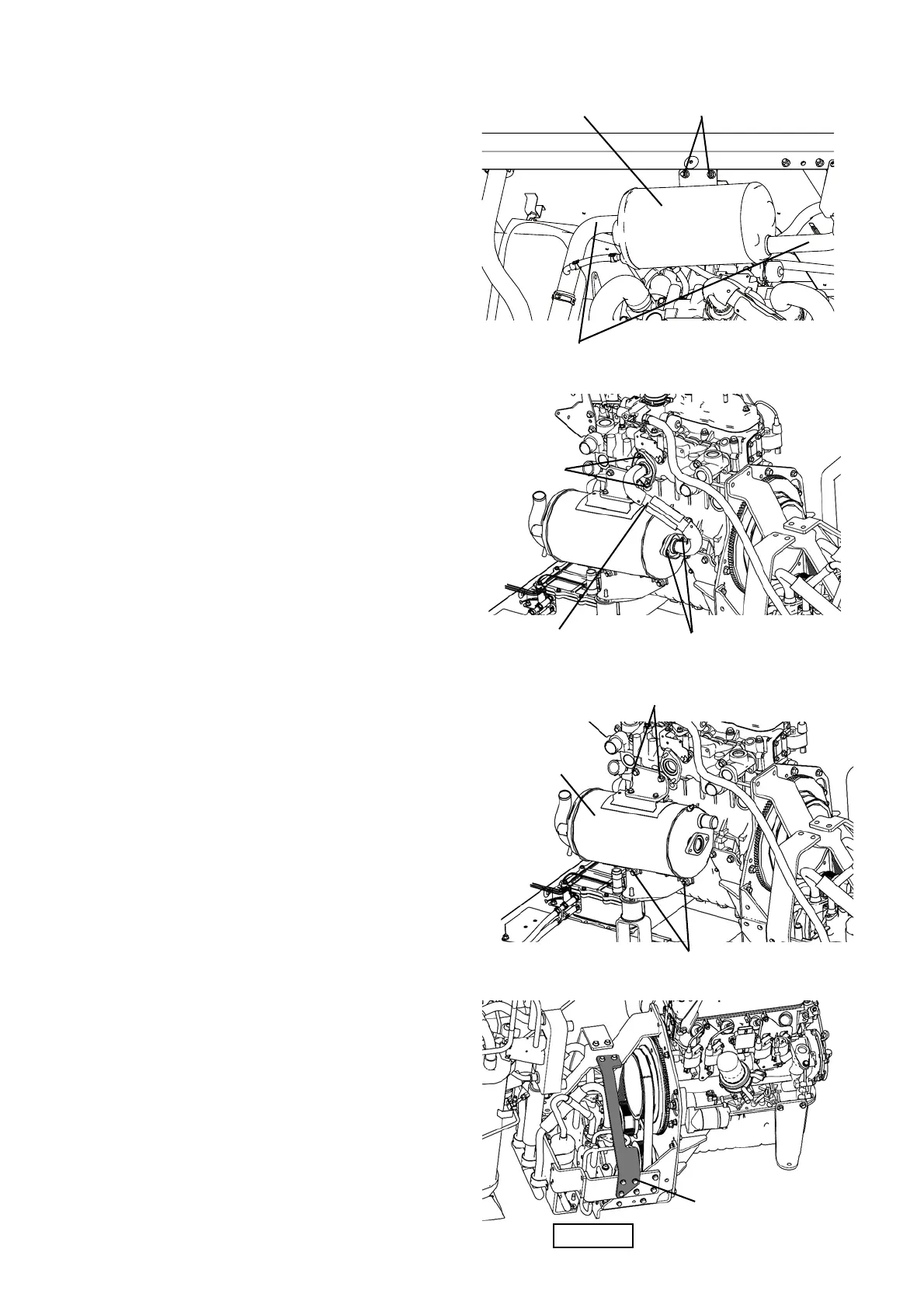

9. Remove the muffler.
1) Unscrew 2 nuts.
2) Disconnect the 2 pipes at the outlet and inlet ports
of muffler and remove the muffler.
10. Remove the exhaust air heat exchanger.
1) Unscrew 2 bolts and 2 nuts to remove the exhaust
pipe.
NOTE) The outdoor unit has the deodorizing catalyst
instead of the exhaust pipe if the deodorant kit
is installed.
2) Unscrew 2 bolts and 2 nuts to remove the exhaust
air heat exchanger.
11. Remove the compressor belt.
1) Unscrew 5 bolts to remove the front side stay.
Muffler
Nuts
Pipes
Nuts
Bolts
Exhaust pipe
Bolts
Nuts
Exhaust air heat
exchanger
Bolts (5 pieces)
Front side
To Next Page
