REPLACEMENT OF MAIN COMPONENTS
2) Loosen a locknut and an adjustment bolt adequate-
ly.
3) Loosen 4 bolts in the front of the outdoor unit,
and remove the compressor belt.
12. Disconnect the air intake hose and the fuel gas hose
from the engine.
13. Remove the exhaust water drain filter box.
1) Disconnect the 3 exhaust water drain hoses from
the box.
2) Unscrew a bolt to remove the box.
NOTE) Do not tilt the box when removing it, because
the box contains exhaust drain water.
NOTE) Disconnect the connector of the exhaust water
drain filter if the drain heater kit is installed.

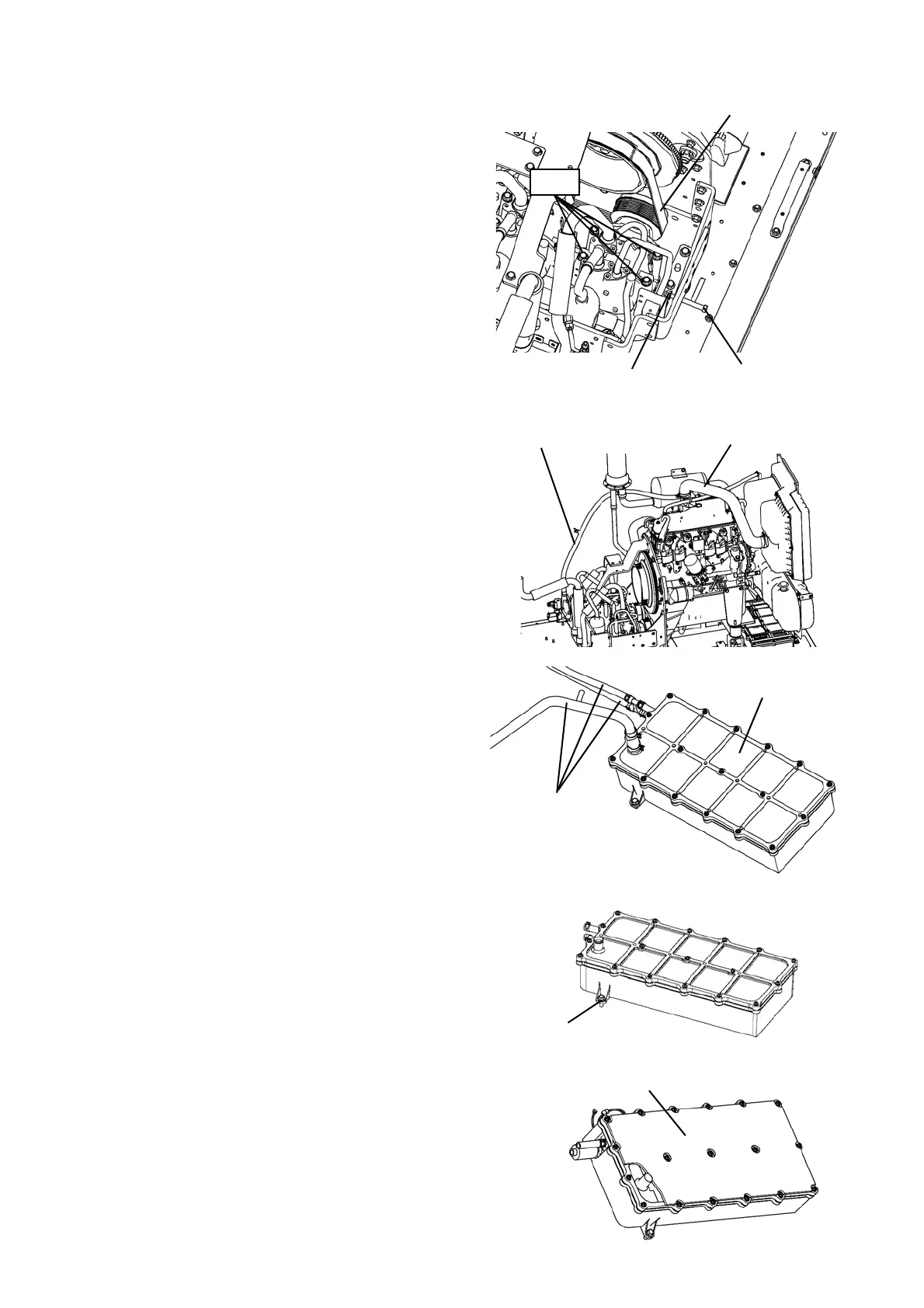

Compressor belt
Adjustment bolt
Locknut
Bolts
Air intake hose
Fuel gas hose
Box
Exhaust water
drain hoses
Bolt
Heater
To Next Page
