REPLACEMENT OF MAIN COMPONENTS

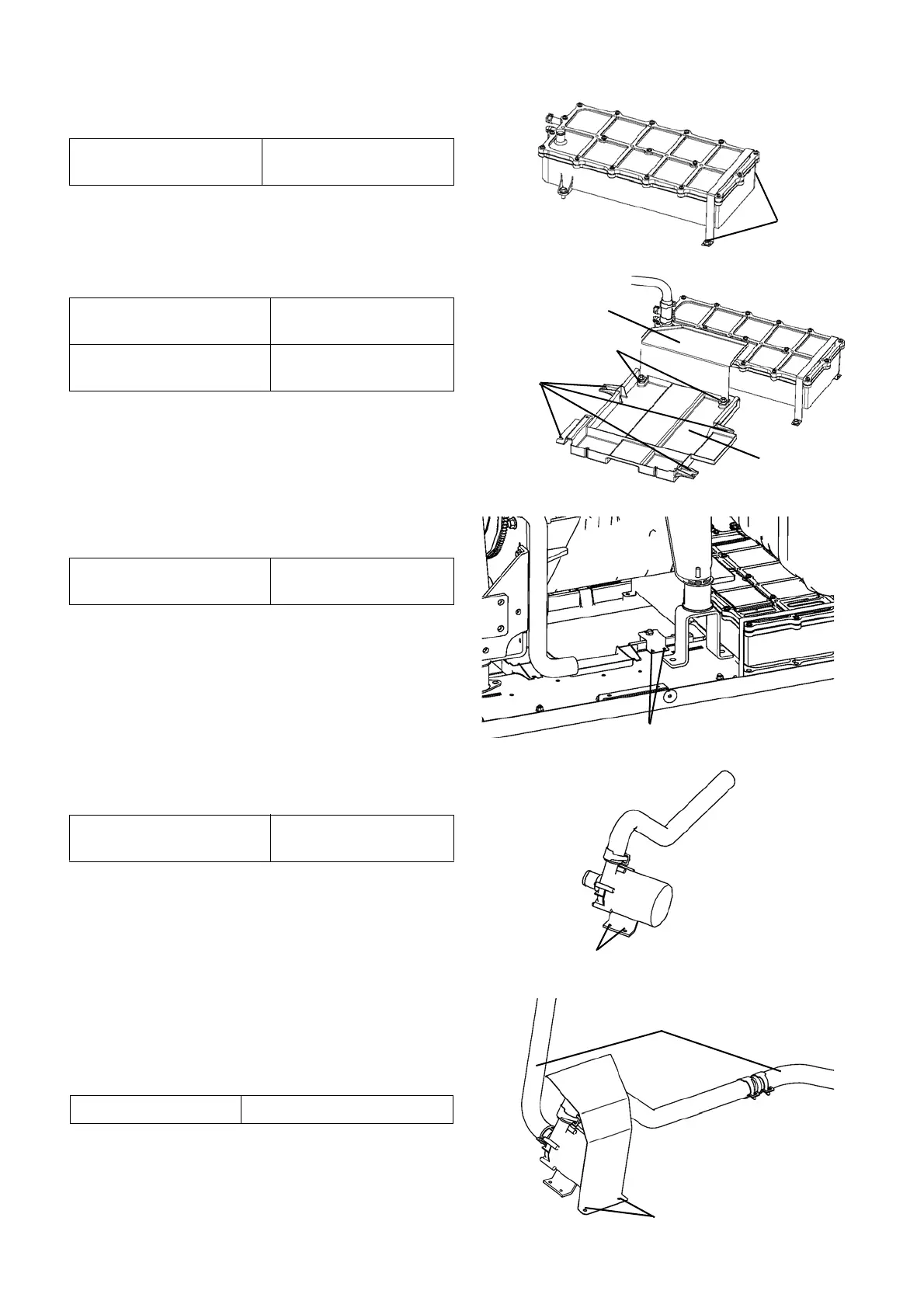

12. Mount the engine mount parts.
1) Mount the stay and tighten 2 nuts.
2) Mount 2 oil trays and tighten 6 bolts.
3) Put the cover over the oil level switch, and tighten
2 bolts.
13. Mount the engine coolant pump.
1) Mount the engine coolant pump and tighten 2 bolts.
2) Connect the 2 engine coolant hoses at the outlet
and inlet sides of the engine coolant pump to the
engine coolant pump.
3) Mount the cover and tighten 2 bolts.
Nuts
Tightening torque
8.9 ± 2.7 lb·ft
(12.0 ± 3.6 N·m)
Bolts
Oil tray ①
Ooil tray ②
Bolts
Tightening torque for
oil tray ①
2.2 ± 0.7 lb·ft
(3.0 ± 0.9 N·m)
Tightening torque for
oil tray ②
3.7 ± 1.1 lb·ft
(5.0 ± 1.5 N·m)
Bolts
Tightening torque
1.6 ± 0.5 lb·ft
(2.2 ± 0.7 N·m)
Bolts
Tightening torque
3.7 ± 1.1 lb·ft (5.0 ± 1.5
N·m)
Bolts
Engine coolant hoses
Tightening torque 3.7 ± 1.1 lb·ft (5.0 ± 1.5 N·m)
