FS4 Frame Synchronizer/Converter v1.1

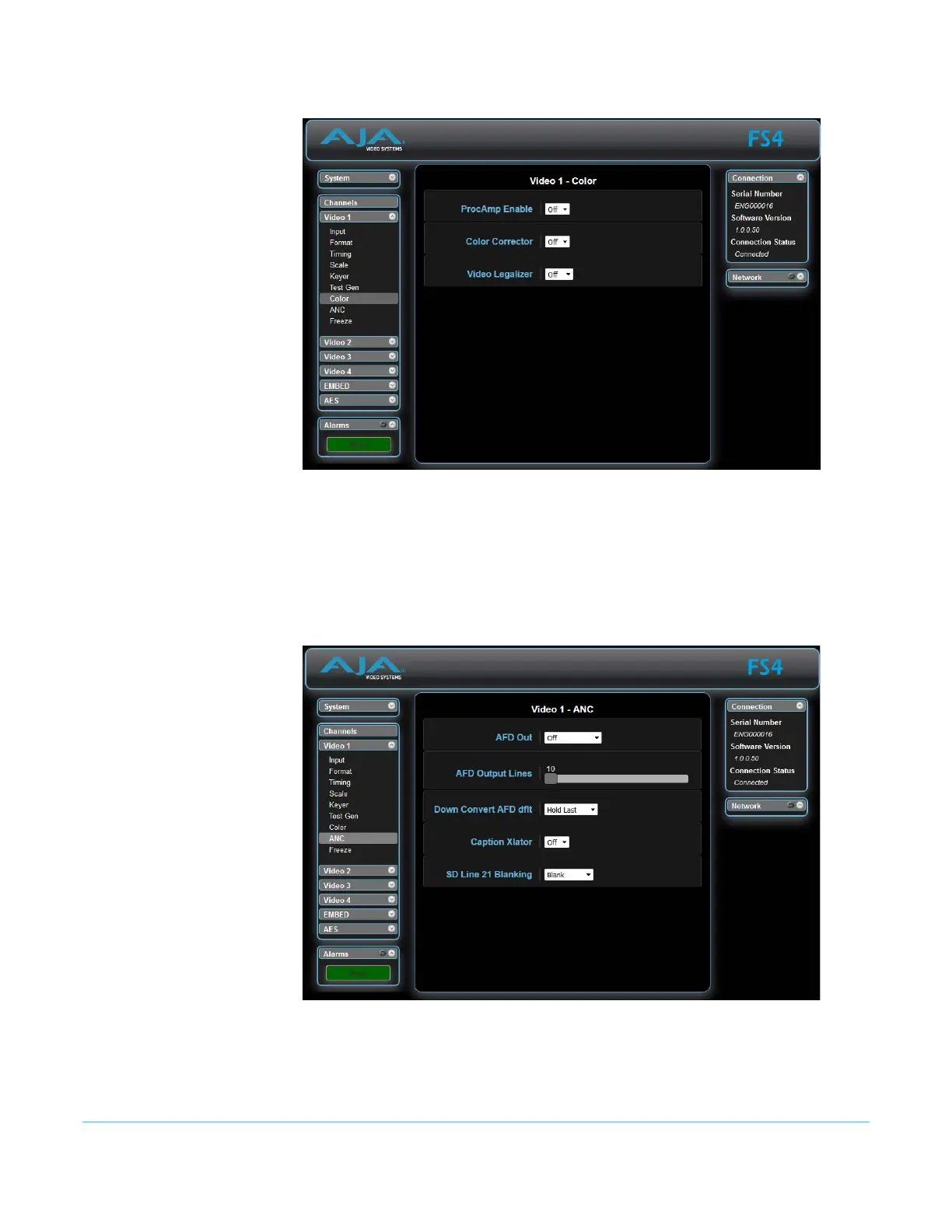

Color Screen
Complete descriptions of the parameters on this screen are accessible using the
following cross references:
• “1.0 Proc Amp Enable (YUV)” on page 70
• “2.0 Color Corrector (RGB)” on page 71
• “3.0 Video Legalizer” on page 71
ANC Screen
Complete descriptions of the parameters on this screen are accessible using the
following cross references:
• “1.1 AFD Out” on page 68
• “1.2 AFD VANC Output Lines” on page 68
