FS4 Frame Synchronizer/Converter v1.1

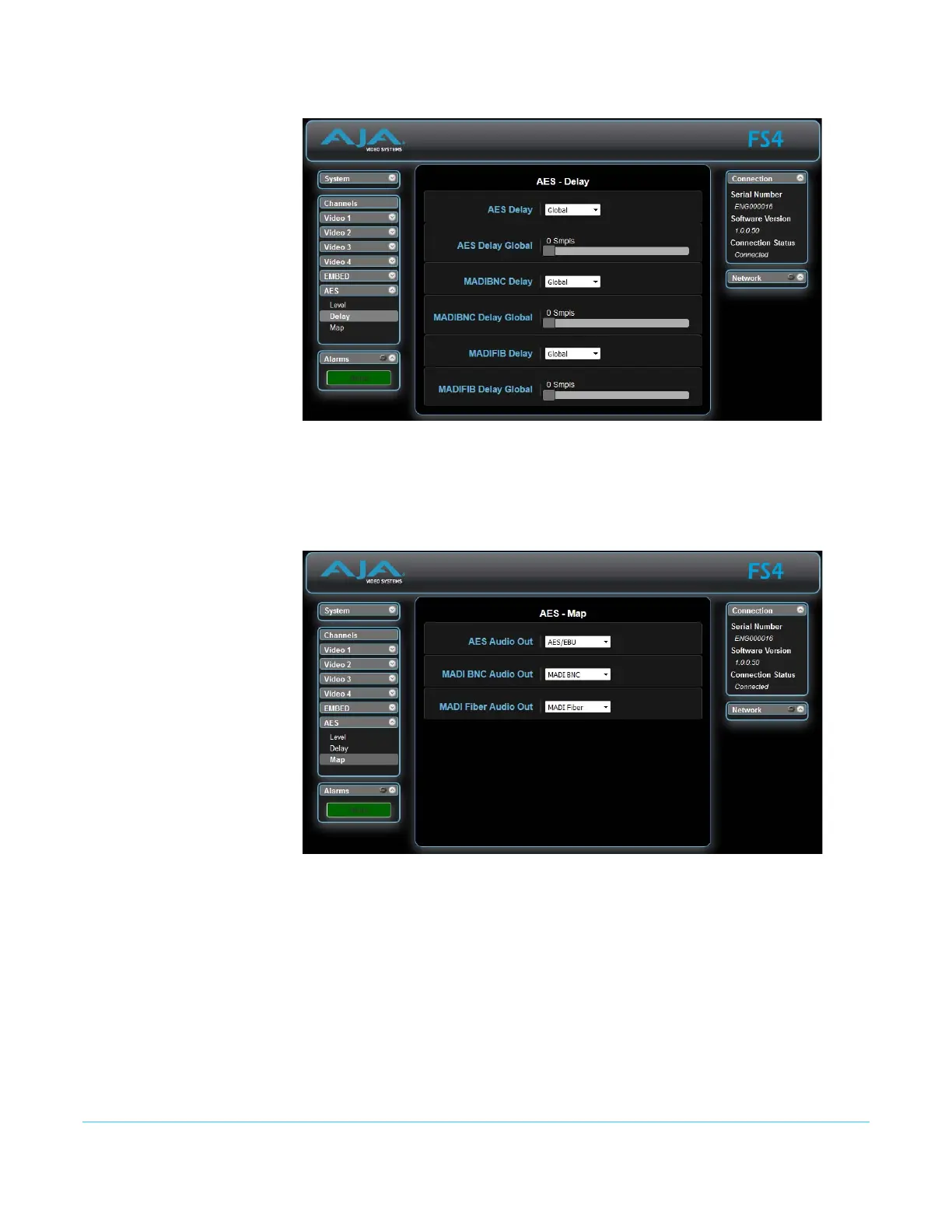

AES/MADI Delay Screen
The parameters on this screen are similar to those for the Embedded Audio Channel
screens, except they apply to either AES or MADI audio inputs. For more information see:
• “EMBED Delay Menus” on page 85
AES/MADI Map Screen
The parameters on this screen are similar to those for the Embedded Audio Channel
screens, except they apply to either AES or MADI audio inputs. For more information see:
• “1.0 Vid 1 Audio Out” on page 87
• “2.0-4.0 SDI2-4 Audio Out” on page 87
