FS4 Frame Synchronizer/Converter v1.1

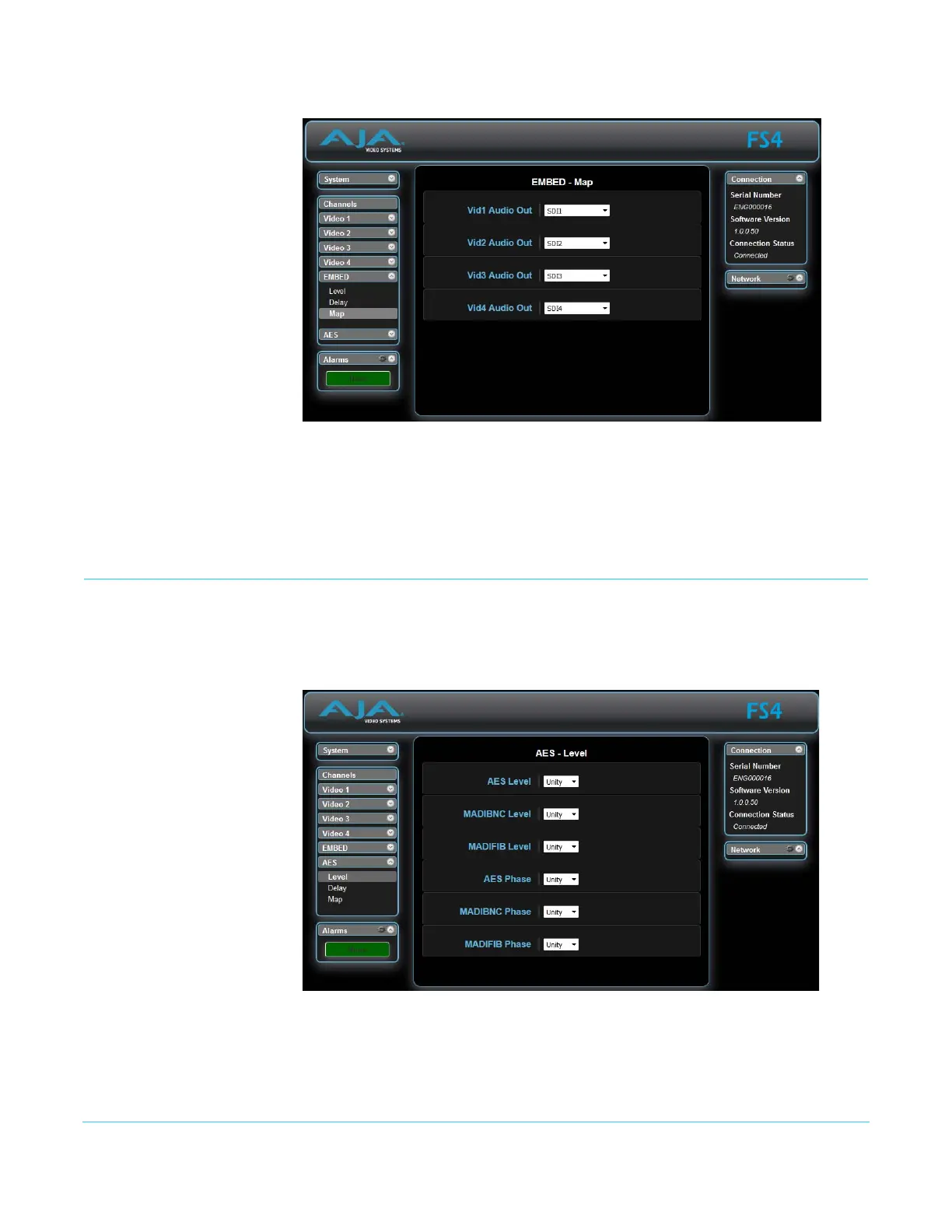

Embed Map Screen
Complete descriptions of the parameters on this screen are accessible using the
following cross references:
• “1.0 Vid 1 Audio Out” on page 87
• “2.0-4.0 SDI2-4 Audio Out” on page 87
AES (and MADI) Audio Channel Screens
The AES Audio Channel browser screens display Level, Delay, and Mapping controls for
the AES, MADI BNC and MADI Fiber audio channels.
AES/MADI Level Screen
The parameters on this screen are similar to those for the Embedded Audio Channel
screens, except they apply to either AES or MADI audio inputs. For more information see:
• “EMBED Level Menus” on page 84
