AJA FS4 - Single Channel Mode Conversion Examples

www.aja.com
43
FS4 Frame Synchronizer/Converter v1.1

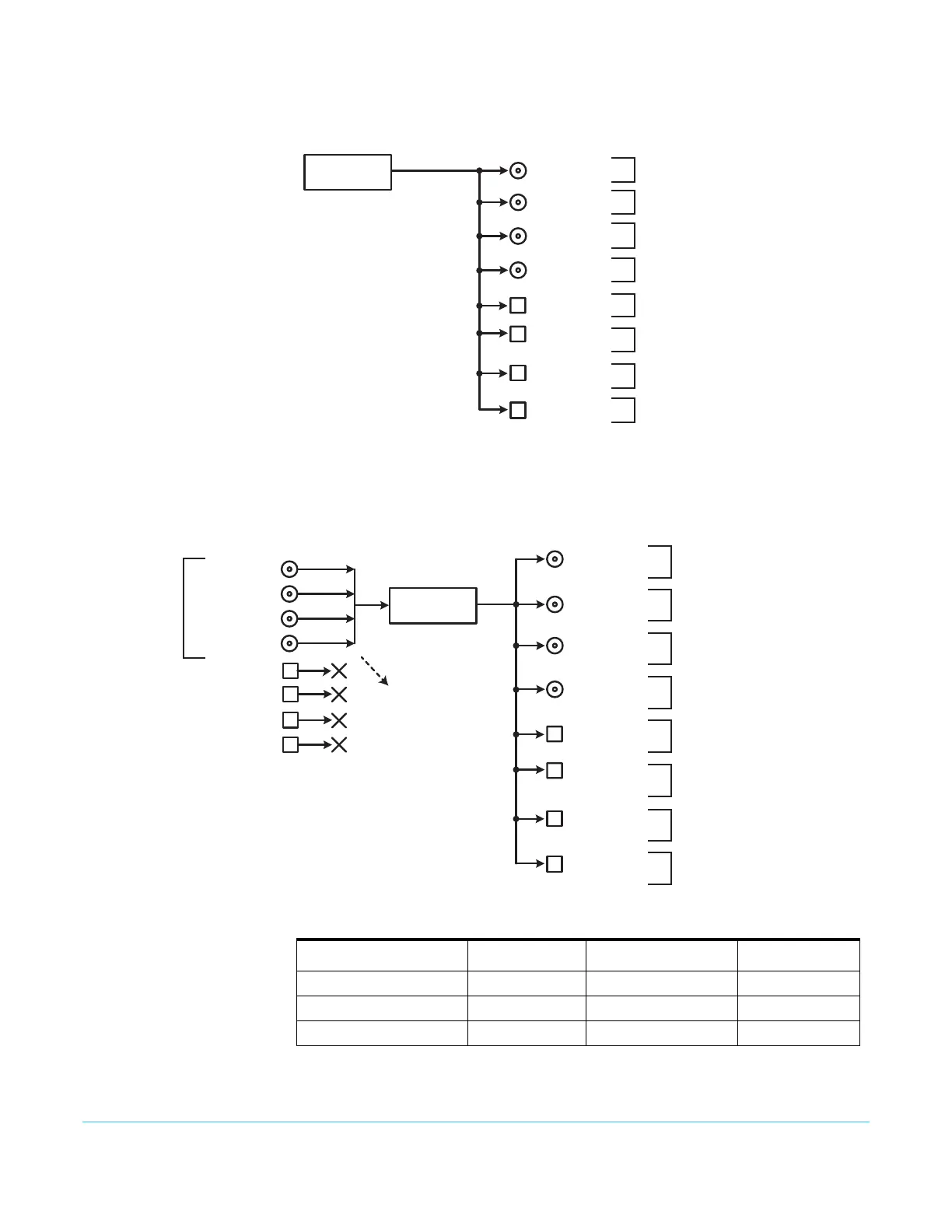

Figure 25. Single Channel Mode, Dual Stream Outputs
Single Channel Mode Conversion Examples
Figure 26. Single Channel Mode, Down Conversion
Dual Stream Output
Single Channel Mode
4K/UHD
Video Processor
The SDI-B portion of the
Dual Stream output will
either have no video, or
it will be a duplicate the
SDI-A stream video.
SDI Out 5 SFP
(w Embedded Audio)
SDI Out 6 SFP
(w Embedded Audio)
SDI Out 1 BNC
(w Embedded Audio)
SDI Out 2 BNC
(w Embedded Audio)
SDI Out 3 BNC
(w Embedded Audio)
SDI Out 4 BNC
(w Embedded Audio)
SDI Out 7 SFP
(w Embedded Audio)
SDI Out 8 SFP
(w Embedded Audio)
Eight copies of
the same signal
on all outputs
Signal Z
Dual Stream (SDI-A)
Signal Z
Dual Stream (SDI-A)
Signal Z
Dual Stream (SDI-A)
Signal Z
Dual Stream (SDI-A)
Signal Z
Dual Stream (SDI-A)
Signal Z
Dual Stream (SDI-A)
Signal Z
Dual Stream (SDI-A)
Signal Z
Dual Stream (SDI-A)
Only 1 input
signal. If the
source is Dual
Stream it will
be either SDI-A
or SDI-B.
4K/UHD
Video Processor
SDI In 1 BNC
(w Embedded Audio)
SDI In 2 BNC
(w Embedded Audio)
SDI In 3 BNC
(w Embedded Audio)
SDI In 4 BNC
(w Embedded Audio)
SDI In 5 SFP
SDI In 6 SFP
SDI In 7 SFP
SDI In 8 SFP
SDI Out 5 SFP
(w Embedded Audio)
SDI Out 6 SFP
(w Embedded Audio)
SDI Out 1 BNC
(w Embedded Audio)
SDI Out 2 BNC
(w Embedded Audio)
SDI Out 3 BNC
(w Embedded Audio)
SDI Out 4 BNC
(w Embedded Audio)
SDI Out 7 SFP
(w Embedded Audio)
SDI Out 8 SFP
(w Embedded Audio)
Signal Z
Quad Llink UHD
3840x2160
Signal Z
Down Convert to
1.5G HD 1080i
Signal Z
Down Convert to
1.5G HD 1080i
Signal Z
Down Convert to
1.5G HD 1080i
Signal Z
Down Convert to
1.5G HD 1080i
Signal Z
Down Convert to
1.5G HD 1080i
Signal Z
Down Convert to
1.5G HD 1080i
Signal Z
Down Convert to
1.5G HD 1080i
Signal Z
Down Convert to
1.5G HD 1080i
Eight copies of the
same signal on all
outputs
Frame Sync Down Conversion
Single Channel Mode
All incoming embedded
audio is disembedded and
sent to Audio Processor
Table 7. FS4 Menu Settings for Figure 26
Channel Select Button Video Button Menu Name Setting
VID1 INPUT 1 Input 1-4 QuadLink
VID1 FORMAT 1 Output Format 1080i5994
VID1 FORMAT 2.0 Link Cfg SDI1 Sngl Link LvlA
