FS4 Frame Synchronizer/Converter v1.1
Single Channel Mode
Input Examples

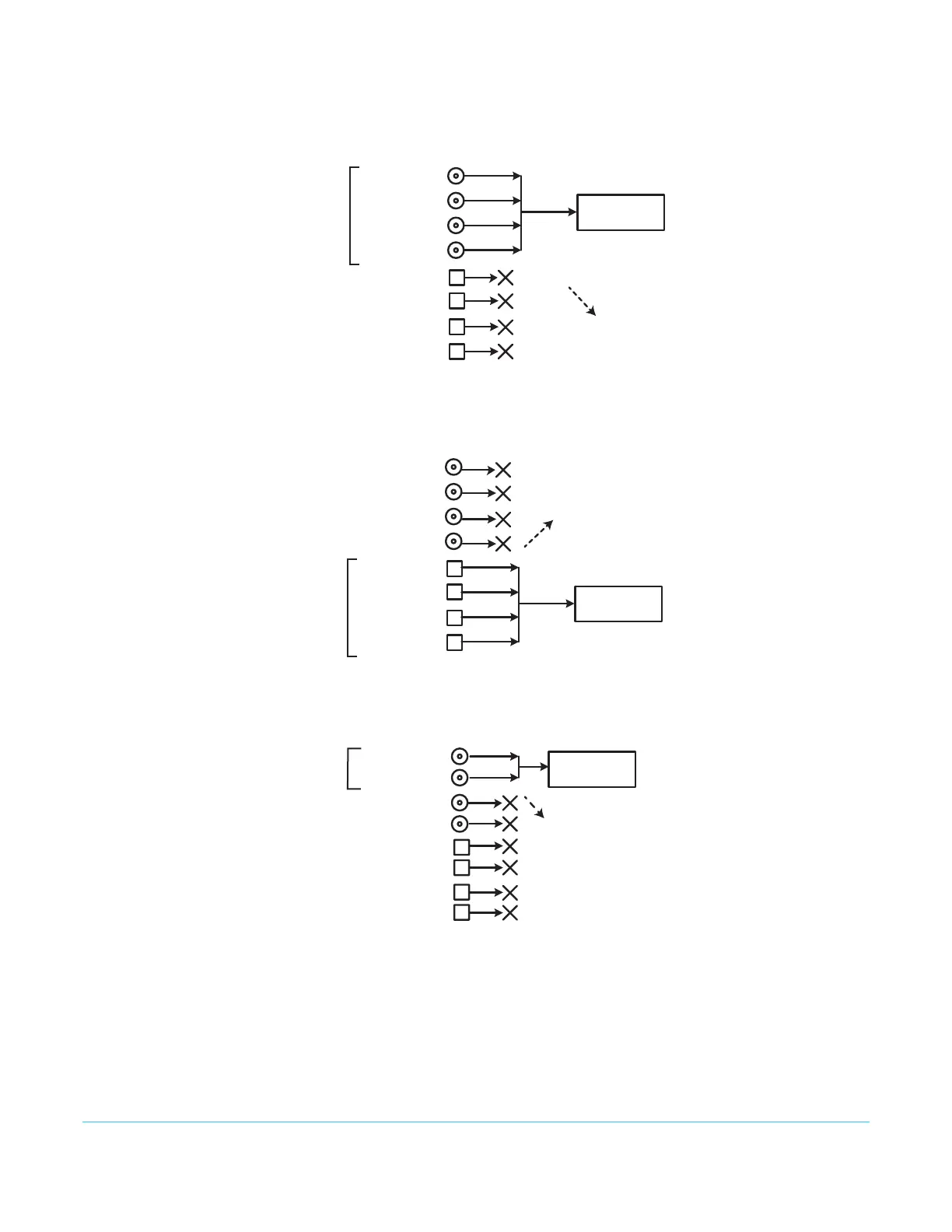

Figure 18. Single Channel Mode, 1-4 Quad Link BNC Input
Figure 19. Single Channel Mode, 5-8 Quad Link SFP Input
Figure 20. Single Channel Mode, Dual Link Input
Signal Z
All incoming embedded
audio is disembedded and
sent to Audio Processor
1-4 Quad LInk Input
Single Channel Mode
4K/UHD
Video Processor
SDI In 1 BNC
(w Embedded Audio)
SDI In 2 BNC
(w Embedded Audio)
SDI In 3 BNC
(w Embedded Audio)
SDI In 4 BNC
(w Embedded Audio)
SDI In 5 SFP
SDI In 6 SFP
SDI In 7 SFP
SDI In 8 SFP
Signal Z
All incoming embedded
audio is disembedded and
sent to Audio Processor
5-8 Quad LInk Input
Single Channel Mode
4K/UHD
Video Processor
SDI In 5 SFP
(w Embedded Audio)
SDI In 6 SFP
(w Embedded Audio)
SDI In 7 SFP
(w Embedded Audio)
SDI In 8 SFP
(w Embedded Audio)
SDI In 1 BNC
SDI In 2 BNC
SDI In 3 BNC
SDI In 4 BNC
All incoming embedded
audio is disembedded and
sent to Audio Processor
Signal Z
Single Channel Mode
Dual Link Input
SDI In 1 BNC
(w Embedded Audio)
SDI In 2 BNC
(w Embedded Audio)
SDI In 3 BNC
SDI In 4 BNC
SDI In 5 SFP
SDI In 6 SFP
SDI In 7 SFP
SDI In 8 SFP
4K/UHD
Video Processor
