AJA FS4 - Page 35

www.aja.com
35
FS4 Frame Synchronizer/Converter v1.1

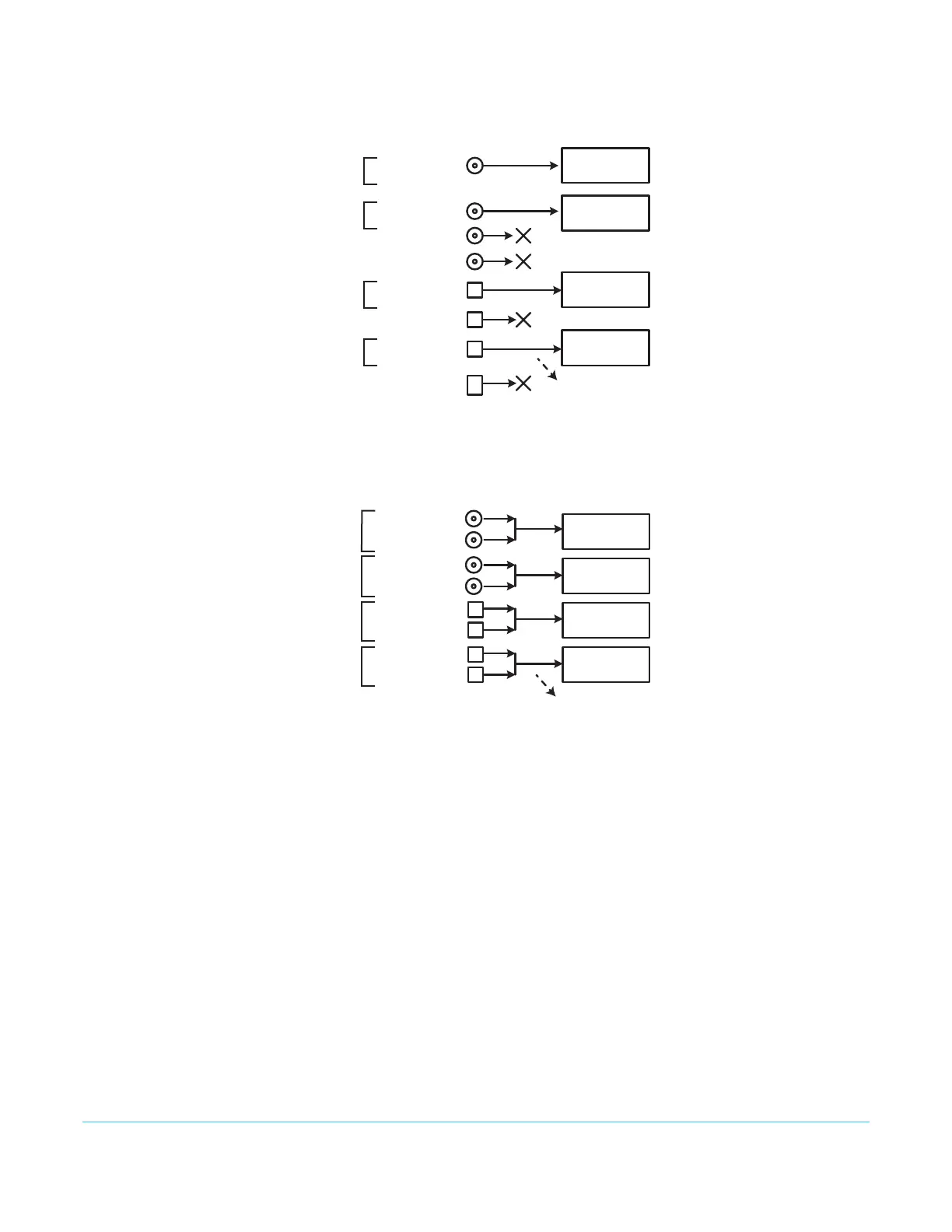

Figure 10. Four Channel Mode, BNC and SFP Inputs
Figure 11. Four Channel Mode, Dual Link Inputs
For Dual Stream input, two independent video image signals are transported over a
single link (SDI-A and SDI-B). Each video image requires a separate Video Processor, so a
total of two Dual Stream signals can be received for processing. Sixteen channels of
embedded audio can be carried on each video signal, so up to 64 embedded audio
channels can be routed to the FS4 Audio Processor (
Figure 12).
All incoming embedded
audio is disembedded and
sent to Audio Processor
Four Channel Mode
Signal W
Signal X
Signal Y
Signal Z
BNC & SFP Inputs
SDI In 1 BNC
(w Embedded Audio)
SDI In 2 BNC
(w Embedded Audio)
SDI In 3 BNC
SDI In 4 BNC
HD/SD
Video Processor 1
HD/SD
Video Processor 2
HD/SD
Video Processor 3
HD/SD
Video Processor 4
SDI In 5 SFP
(w Embedded Audio)
SDI In 6 SFP
SDI In 7 SFP
(w Embedded Audio)
SDI In 8 SFP
All incoming embedded
audio is disembedded and
sent to Audio Processor
Signal W
Signal X
Signal Y
Signal Z
Four Channel Mode
BNC & SFP Dual LInk Input
SDI In 1 BNC
(w Embedded Audio)
SDI In 2 BNC
(w Embedded Audio)
SDI In 4 BNC
(w Embedded Audio)
SDI In 6 SFP
(w Embedded Audio)
SDI In 8 SFP
(w Embedded Audio)
SDI In 3 BNC
(w Embedded Audio)
SDI In 5 SFP
(w Embedded Audio)
SDI In 7 SFP
(w Embedded Audio)
HD/SD
Video Processor 1
HD/SD
Video Processor 2
HD/SD
Video Processor 3
HD/SD
Video Processor 4
