Interconnect and CE Diagrams B-27

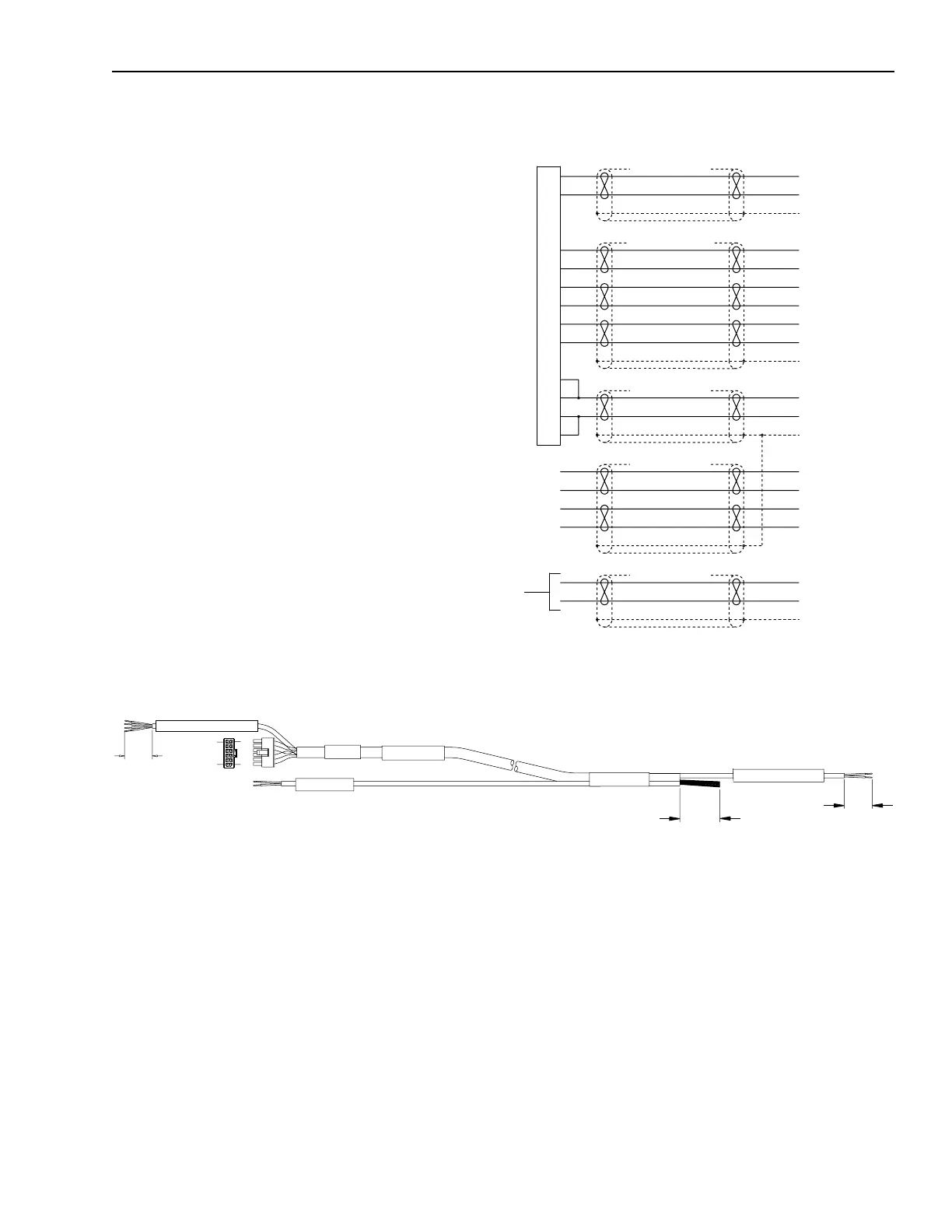

Figure B.20
1394-CFLAE01, -03, -08, -15 Cable Pin-outs
Figure B.21
1394-CFLAE01, -03, -08, and -15 Cable
3
9
+5V
+5VCOM
4
10
5
11
6
12
CHANNEL A HIGH
CHANNEL A LOW
CHANNEL B HIGH
CHANNEL B LOW
CHANNEL Z HIGH
CHANNEL Z LOW
VREF+
TREF+
VREF-
TREF-
1
2
7
8
(DROK-0)
(24V EN COM)
(24V)
(AX_-ENABLE)
TO SYSTEM
FAULT STRING
RED 22GA
BLACK 22GA
DRAIN
ORANGE 22GA
WHT/ORG 22GA
YELLOW 22GA
WHT/YEL 22GA
GREEN 22GA
WHT/GRN 22GA
DRAIN
BLUE 22GA
WHT/BLU 22GA
DRAIN
VIOLET 22GA
WHT/VIO 22GA
GRAY 22GA
WHT/GRY 22GA
DRAIN
RED 22GA
BLACK 22GA
DRAIN
Individually Jacketed Pairs
7
12
1
6
ENABLE/DRIVE FAULT - AXIS 0
5.0 in.
1.0 in.
5V ENC PWR - AXIS 0
M02AE - OK
AXIS 0
1394-CFLAE
1756-M02AE
3.0 in.
