136 Rockwell Automation Publication 290E-UM001B-EN-P - June 2012
Chapter 4 Bulletin 290E/291E/294E Programmable Parameters

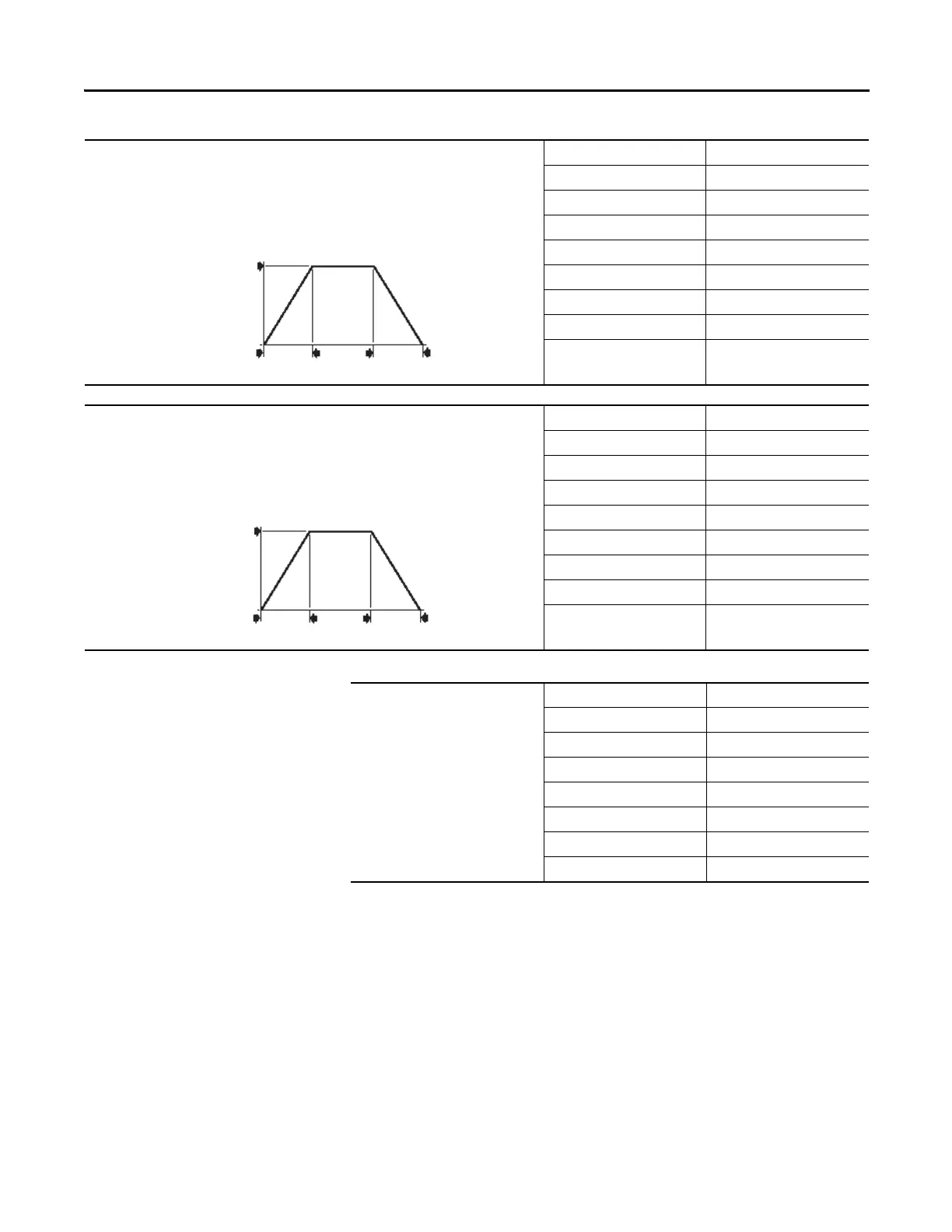

AccelTime1
Sets the rate of acceleration for all speed increases.
Parameter Number 36
Related Parameters 33, 37
Access Rule GET/SET
Data Type UINT
Group Speed Control
Units x.x secs
Minimum Value 0.0
Maximum Value 600.0
Default Value 10.0
DecelTime1
Sets the rate of deceleration for all speed decreases.
Parameter Number 37
Related Parameters 33, 36
Access Rule GET/SET
Data Type UINT
Group Speed Control
Units x.x secs
Minimum Value 0.1
Maximum Value 600.0
Default Value 10.0
Maximum Freq
Accel Time
-------------------------------------- A c c e l R a t e=
Parameter 35
(Maximum Freq)
Speed
Accel
Time 1
0
0
Time
Decel
Time 1
Acceleration
Deceleration
Maximum Freq
Decel Time
-------------------------------------- D e c e l R a t e=
Parameter 35
(Maximum Freq)
Speed
Accel
Time 1
0
0
Time
Decel
Time 1
Acceleration
Deceleration
SCurvePercent
Sets the percentage of acceleration or
deceleration time that is applied to ramp
as S Curve. Time is added, half at the
beginning and half at the end of the ramp.
Parameter Number 38
Access Rule GET/SET
Data Type UINT
Group Speed Control
Units Percentage
Minimum Value 0
Maximum Value 100
Default Value 0
