62 Rockwell Automation Publication 290E-UM001B-EN-P - June 2012
Chapter 2 Installation and Wiring

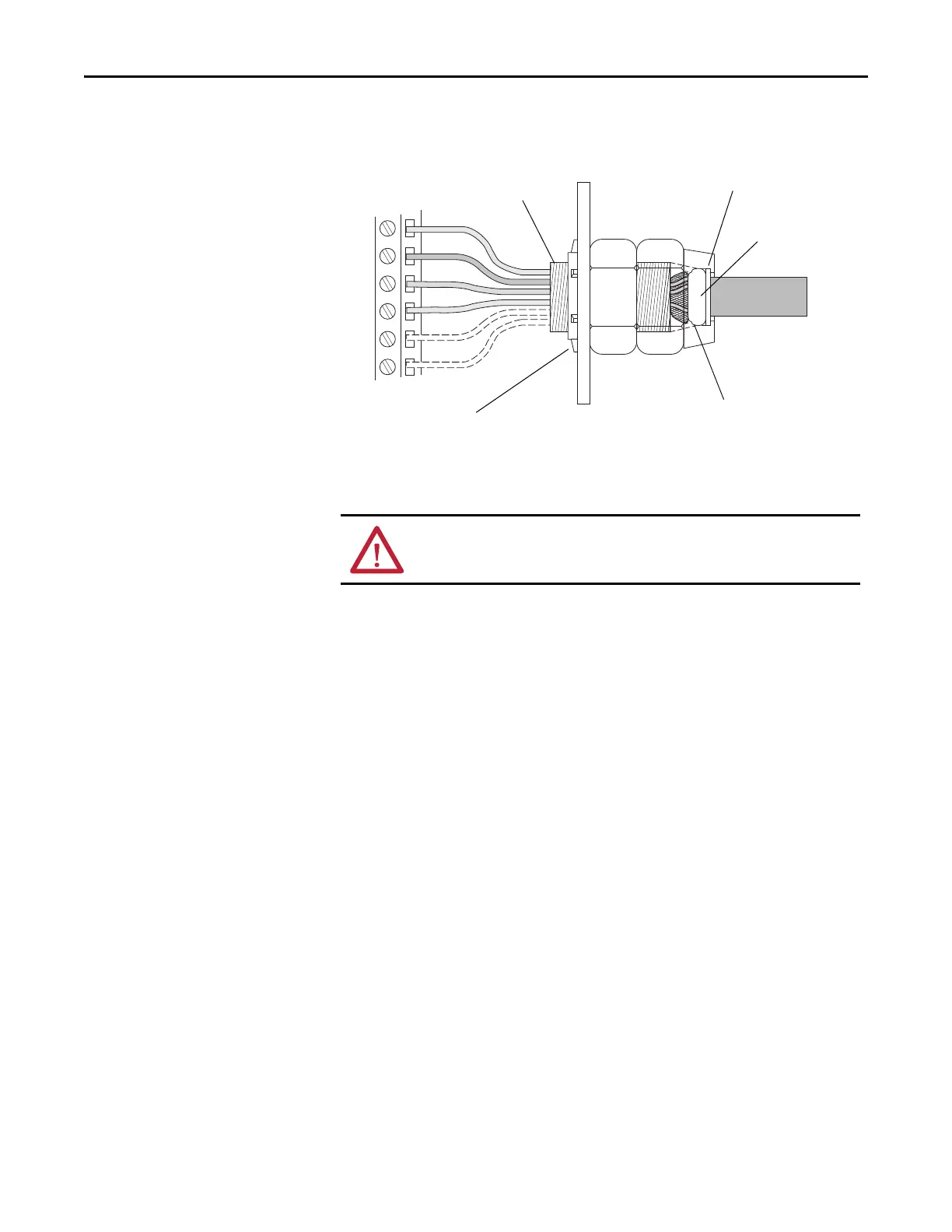

Figure 36 - Terminating the Shield with a Connector
Electromagnetic
Compatibility (EMC)
The following guidelines are provided for EMC installation compliance.
General Notes (Bulletin 294E only)
The motor cable should be kept as short as possible in order to avoid
electromagnetic emissions as well as capacitive currents. CE conformity
of ArmorStart LT with EMC directive does not guarantee the entire
machine installation complies with CE EMC requirements. Many
factors can influence total machine/installation compliance.
The EMI filter may result in relatively high ground leakage currents.
Therefore, ArmorStart LT must only be applied in installations that are
solidly grounded (bonded) to the building power distribution ground.
U (T1)
V (T2)
W (T3)
PE
One or More
Ground Leads
Braid wires pulled back in a 360° pattern
around the ground cone of the connector
Drain wires pulled back in a 360° pattern
around the ground cone of the connector
Metal locknut bonds the
connector to the panel
Metal connector body
makes direct contact with
the braid wires
ATTENTION: Shielded connector or motor cable is mandatory for CE compliant
installations.
Ground Bushing
