Product Overview Chapter 1
ArmorStart LT Characteristics

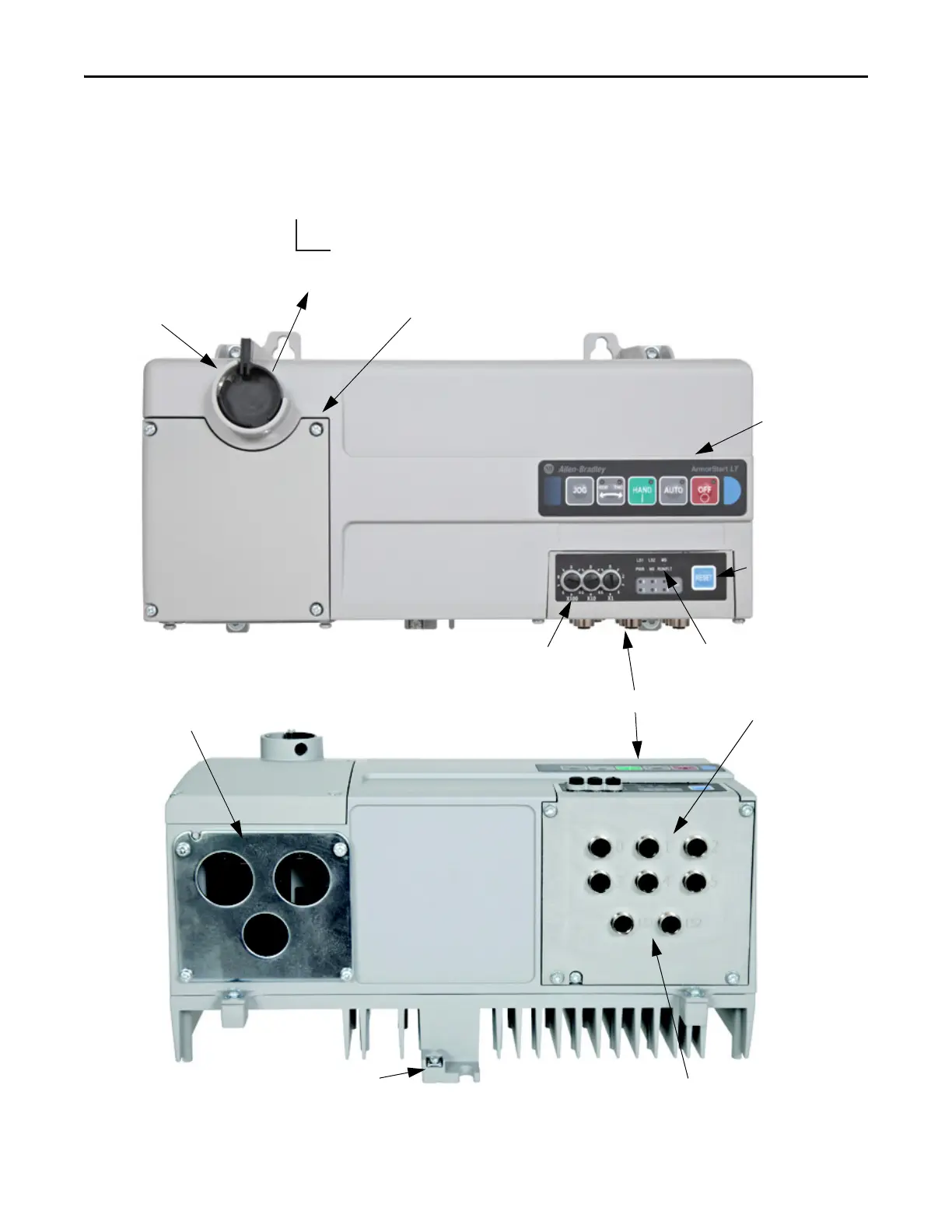

Figure 5 - Bulletin 294E ArmorStart LT
Protective Earth (PE)
Dual Port EtherNet/IP
(This is replaced by a DeviceNet connector,
when DeviceNet communication is selected)
LockOut/TagOut Provision
Gland Plate – Conduit/Cord Grip or
ArmorConnect Media (optional)
Reset
IP Address Switches
ECM (Electronic Control Module)
Hand-Off-Auto
Keypad (optional)
On/Off Switch
Status and Diagnostic LEDs
Wiring Access
6 Configurable I/Os
