The following state transition diagram is used for an unbound Bulletin 290E

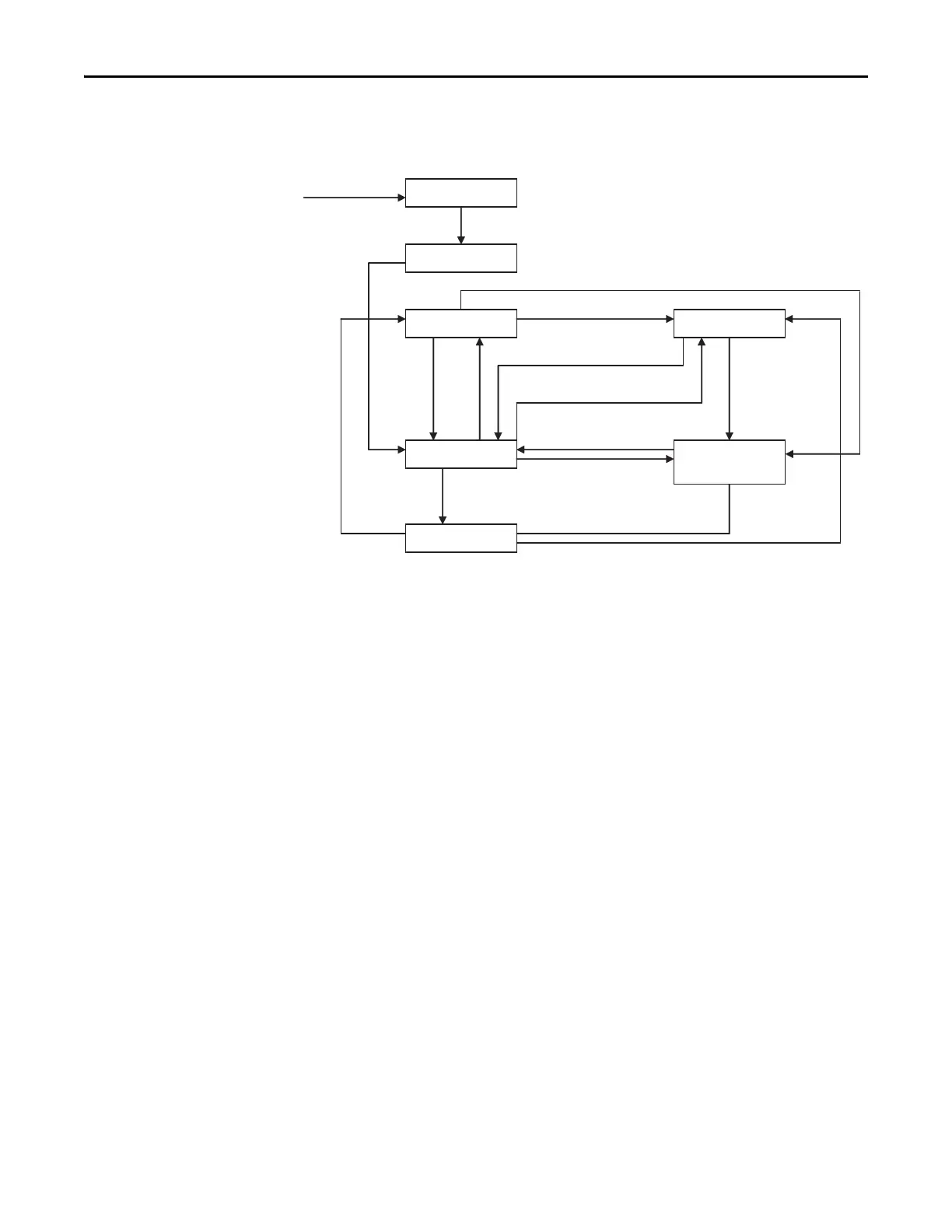

Figure 63 - State Transition for Unbound Bulletin 290E
Non-Existent
Available
Idle
Ready
Run
DNet Fault
Receive Idle
Power o
Connection
Transitions to
Established
Protection Fault
Protection
Fault
Protection Fault
Protection Fault Reset
Connection Transitions to Established
DNet Fault
Receive
Data
DNet
Idle
Ready
DNet Fault
Protection Fault
Protection
Fault
DNet Fault
Power up
