Rockwell Automation Publication 290E-UM001B-EN-P - June 2012 77
Product Commissioning Chapter 3

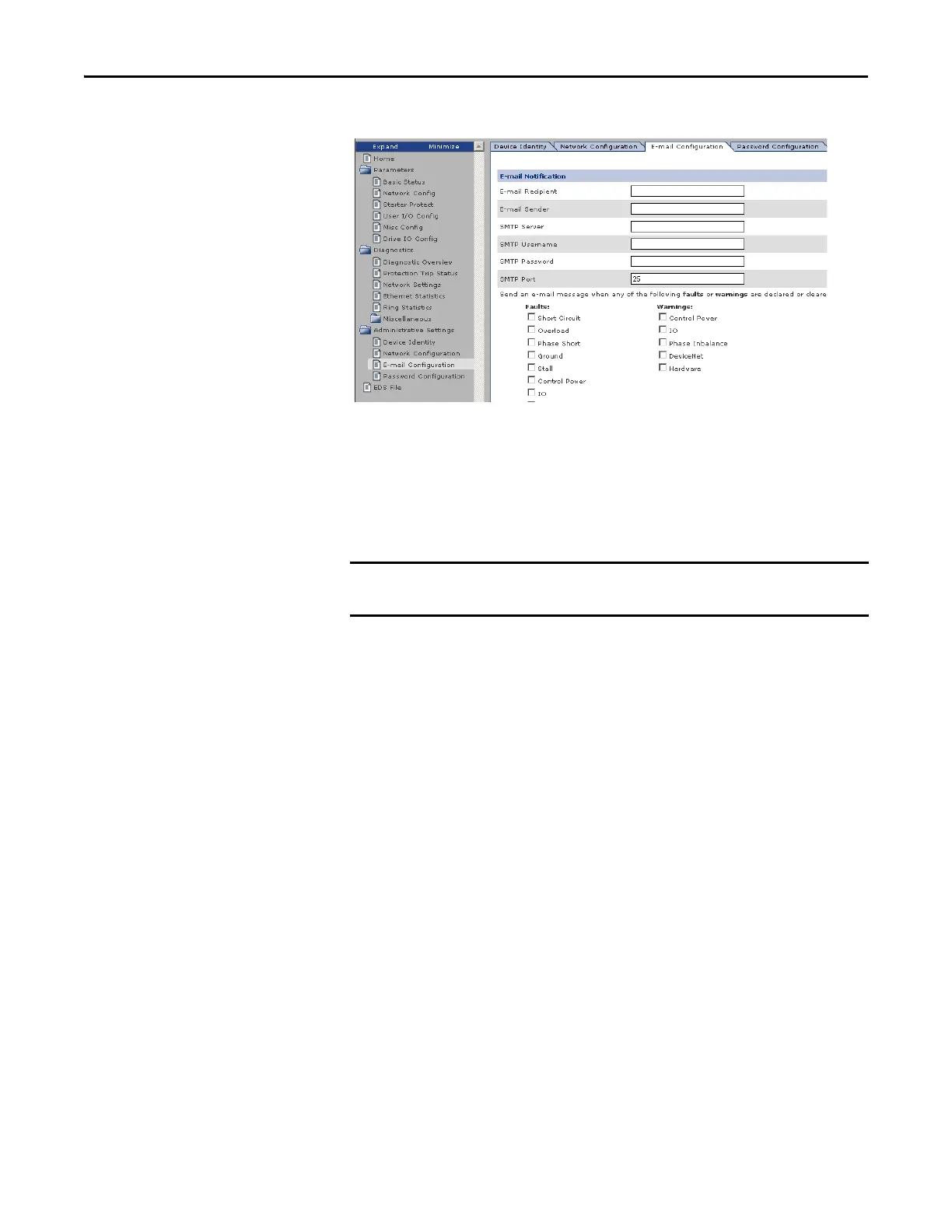

Figure 52 - E-mail Notification Configuration
E-mail triggers:
• when a trip occurs
• when a trip is cleared
• when a warning occurs
• when a warning is cleared
The following is an example trip e-mail:
Subject:
ArmorStart LT 291E 1.1-7.6A has detected an Overload Trip
Body: Trip Snapshot:
SnapShotL1Amps: 1.11 Amps
SnapShotL2Amps: 2.22 Amps
SnapShotL3Amps: 3.33 Amps
SnapShotAveAmps: 2.22 Amps
SnapShot%Thermal: 55%
Trip Type: Overload Trip
Trip Info: Load has drawn excessive current based on the trip
class selected.
Device Name: ArmorStart LT 291E Test Unit
Device Description:Latest AB On-Machine Offering
Device Location: Sixth Floor Comms Lab
Contact Info: Contact 1 Info: Slicia Turnbull in California
Contact 2 Info: Steve Plummer on Friday
“Cleared Event” e-mails will only be sent when all events have been cleared
and if a trip event e-mail has previously been sent.
