Chapter 4 Output Module Features
Multiple Output
Module Types

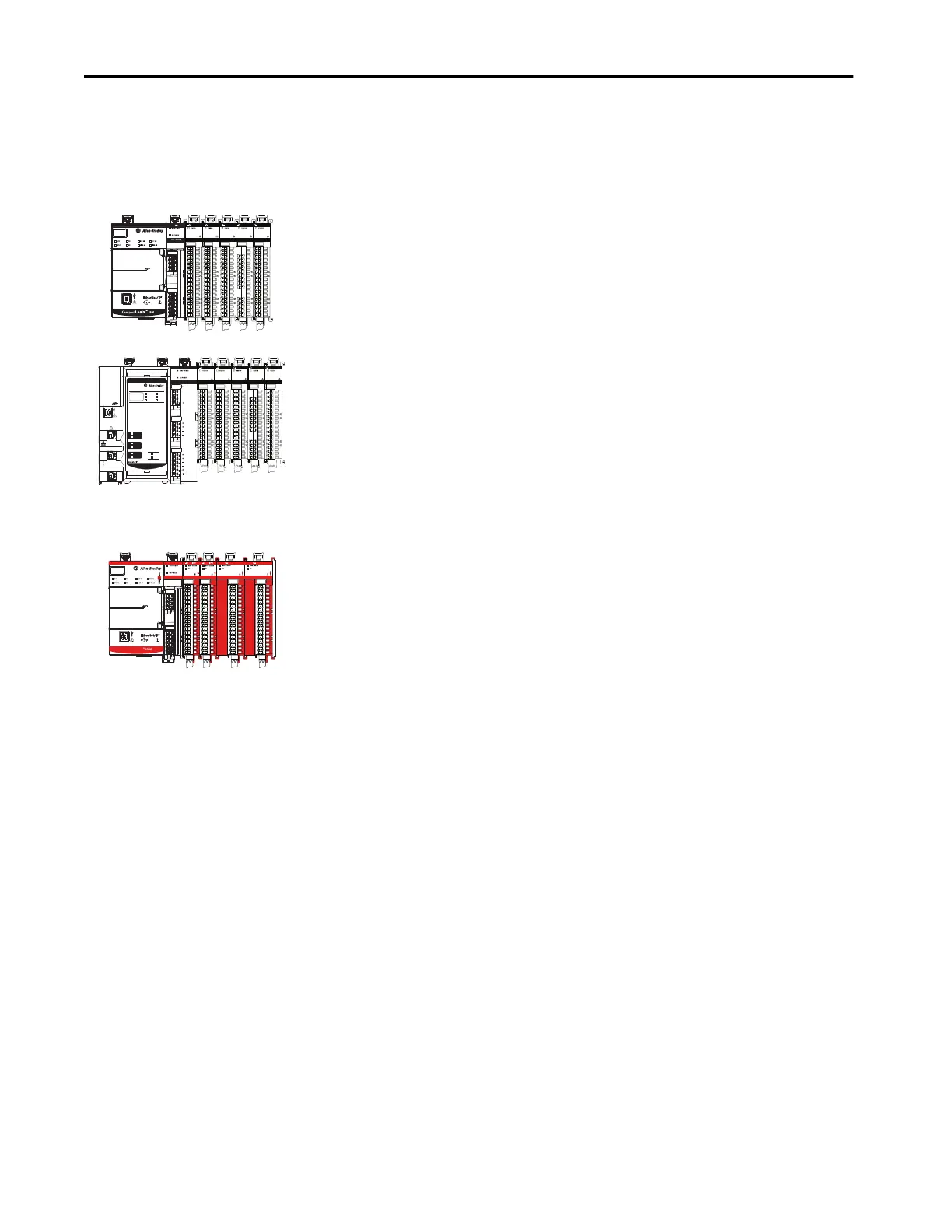

The Compact 5000 I/O digital module family offers the following output
module types:
• AC standard output module - 5069-OA16
• DC standard output modules - 5069-OB8, 5069-OB16
• DC standard output conformal coated module - 5069-OB16K
• DC standard fast output module - 5069--OB16F
• Standard relay output modules - 5069-OW4I, 5069-OW16,
5069-OX4I
• Safety output modules - 5069-OBV8S and 5069-OBV8SK
5069-OBV8S
SIL2 CPU
5069-L3100ERMS2
Compact GuardLogix
5069-OBV8S
5069-IB8S5069-IB8S
OUTPUT OUTPUT
SA Power MOD Power
DC INPUT
5069-IB16
DC OUTPUT
5069-OB16
ANALOG INPUT
5069-IY4
SA Power MOD Power
ANALOG OUTPUT
5069-OF8
DC INPUT
5069-IB16
Standard Modules
Safety Modules
™
NET B1
LINK B1
NET A1
LINK A1
NET A2
LINK A2
SPEED X1
LINK X1
OK
RUN
FORCE
FAN 1
SD
FAN 2
CompactLogix 5480
B1
A1
1
2
A2
5069-L46ERMW
CONTROLLER
UPS
MP
SA
R
B
F
R
B
F
DC INPUT
5069-IB16
DC OUTPUT
5069-OB16
ANALOG INPUT
5069-IY4
ANALOG OUTPUT
5069-OF8
DC INPUT
5069-IB16
