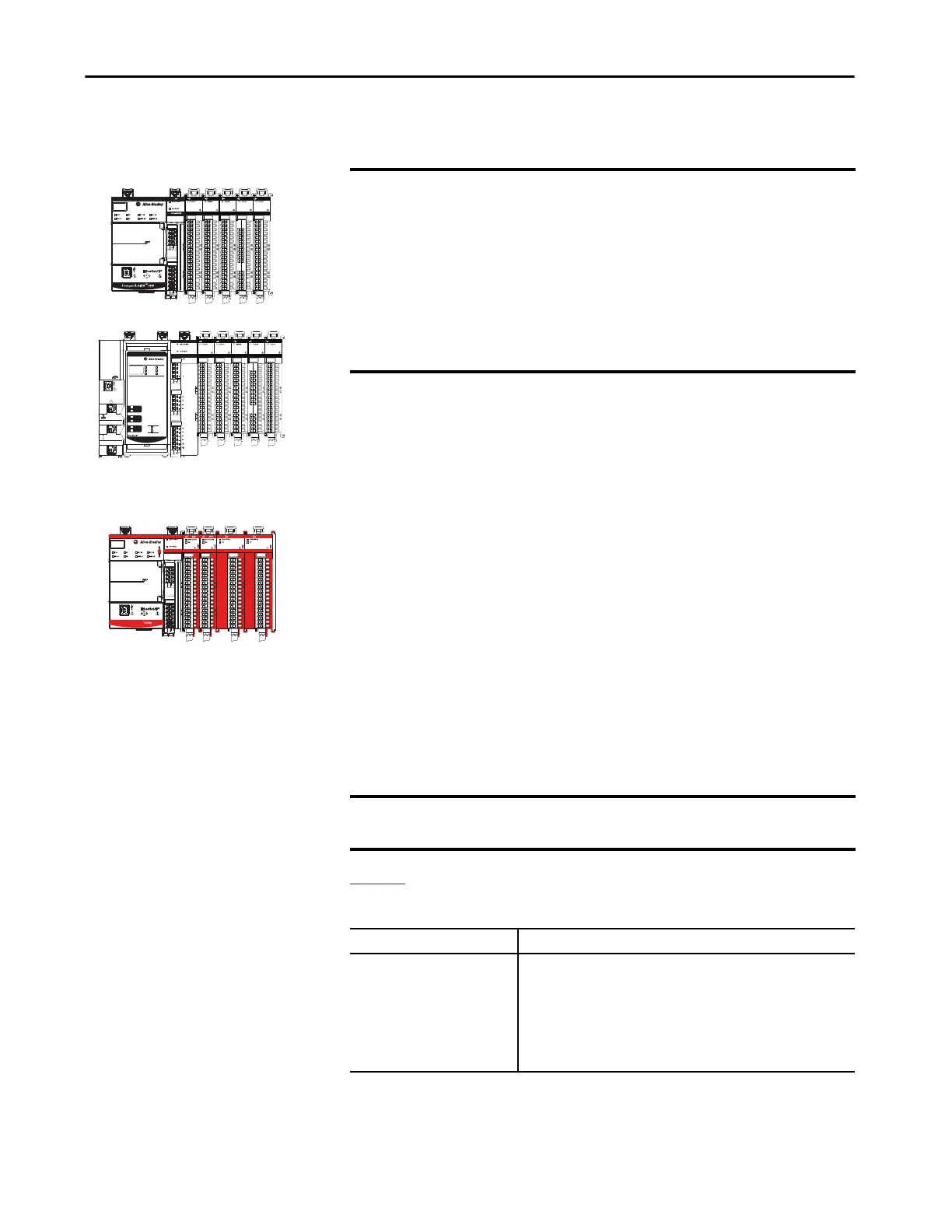

Allen-Bradley Compact 5000 Series User Manual

Rockwell Automation Publication 5069-UM004A-EN-P - April 2019 113
Output Module Features Chapter 4
No Load Detection
No Load Detection detects when a wire is disconnected from the output or a
missing load for each output point in the Off state.
• No Load Detection is disabled by default on Compact 5000 I/O
standard output modules.
You must enable the feature in your Logix Designer application project.
• No Load Detection is enabled by default on Compact 5000 I/O safety
output modules. You cannot configure it.
The output modules support the following minimum load currents:
• Standard output modules:
– No load detection current, max = 0.5 mA
– On-state current per channel, max = 1 mA
• Safety output modules - The load detection current is ≥10 mA. For
example, 2.4 Ω at 24V DC.
In the On state, the module must be connected to a load that draws a minimum
current equal to the following values.
Table 26 describes what happens when a No Load condition is detected.
5069-OBV8S
SIL2 CPU
5069-L3100ERMS2
Compact GuardLogix
5069-OBV8S
5069-IB8S5069-IB8S
OUTPUT OUTPUT
SA Power MOD Power
DC INPUT
5069-IB16
DC OUTPUT
5069-OB16
ANALOG INPUT
5069-IY4
SA Power MOD Power
ANALOG OUTPUT
5069-OF8
DC INPUT
5069-IB16
Standard Modules
Safety Modules
™
NET B1
LINK B1
NET A1
LINK A1
NET A2
LINK A2
SPEED X1
LINK X1
OK
RUN
FORCE
FAN 1
SD
FAN 2
CompactLogix 5480
B1
A1
1
2
A2
5069-L46ERMW
CONTROLLER
UPS
MP
SA
R
B
F
R
B
F
DC INPUT
5069-IB16
DC OUTPUT
5069-OB16
ANALOG INPUT
5069-IY4
ANALOG OUTPUT
5069-OF8
DC INPUT
5069-IB16
IMPORTANT The following Compact 5000 I/O digital output modules support No Load
Detection:
• 5069-OB8
• 5069-OB16
• 5069-OB16F
• 5069-OB16K
• 5069-OBV8S
• 5069-OBV8SK
IMPORTANT An output must remain in the off state a minimum of 250 ms for an open
load to be detected.
Table 26 - No Load Detection - Compact 5000 I/O Digital Output Modules
Tag Value I/O Status Indicator State
I.Ptxx.NoLoad tag = 1 • Compact 5000 I/O standard output modules - Flashing red if the No Load
condition exists
• Compact 5000 I/O safety output modules -
– Flashing red if a No Load condition exists and the output is off.
– Flashing red/yellow if a No Load condition already exists and the
output is on.
IMPORTANT: A No Load condition is only detected when the output is off.
