184 Rockwell Automation Publication 5069-UM004A-EN-P - April 2019

Chapter 6 Configure a Standard Module

Edit 5069-OB16 Module

Configuration Categories

To configure a 5069-OB16K module, you use the 5069-OB16 module profile

in your Logix Designer application project.

In addition to the General, Connection, and Module Info categories, the

Points category is available when you configure a 5069-OB16 module.

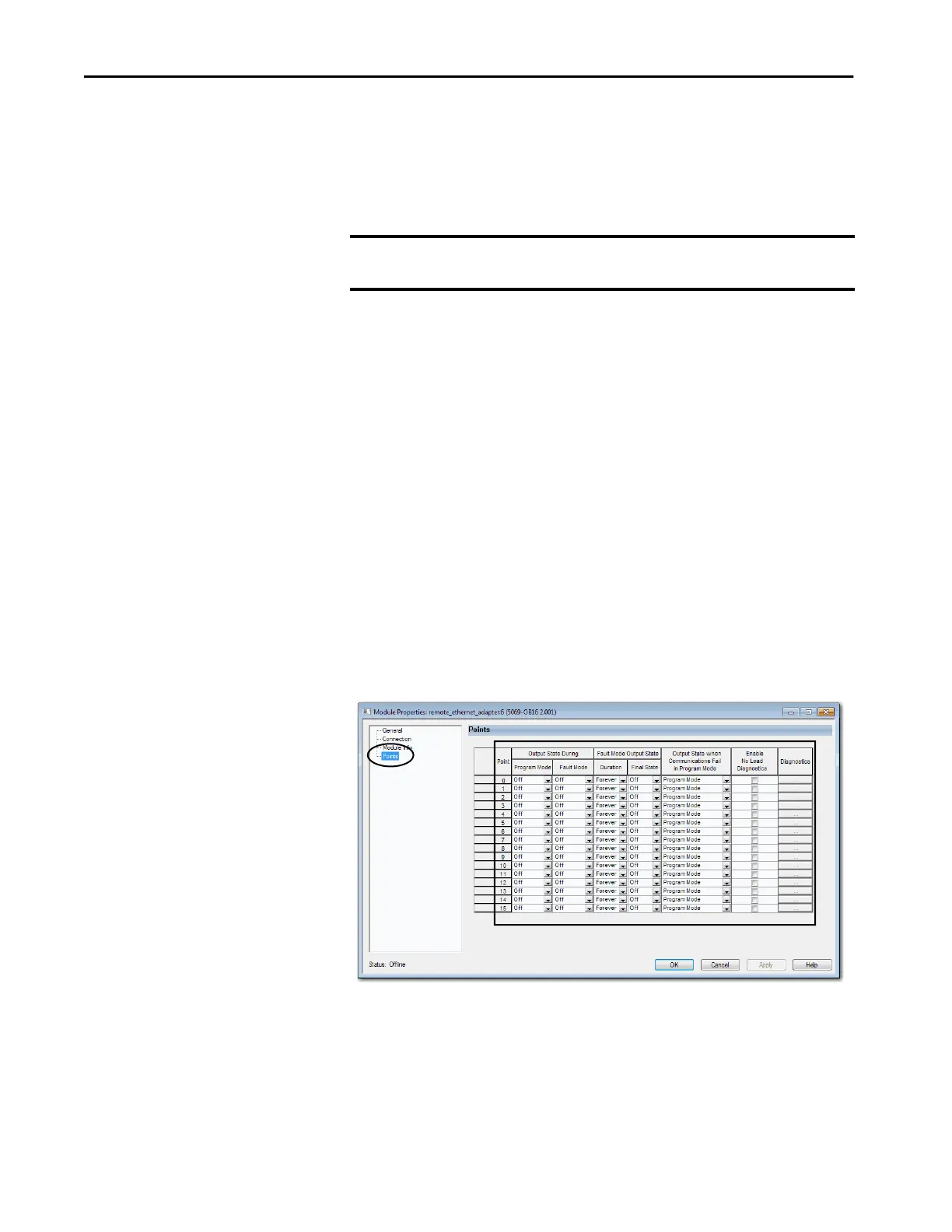

Points Category

The Points category shows the configuration options available for each point.

You can configure the following parameters from the Points category:

• Output State During Program Mode

• Output State During Fault Mode

• Fault Mode Output State Duration

• Fault Mode Output State Final State

• Output State When Communications Fail in Program Mode

• Enable No Load Diagnostics

IMPORTANT If you use the Listen Only connection type, the Points Category does

not appear.
