Configure a Standard Module Chapter 6
View the Module Tags
When you create a module, the Logix Designer application creates a set of tags
that you can view in the Tag Editor. Each configured feature on your module
has a distinct tag that is available for use in the controller program logic.
Complete the following steps to access the tags for a module.

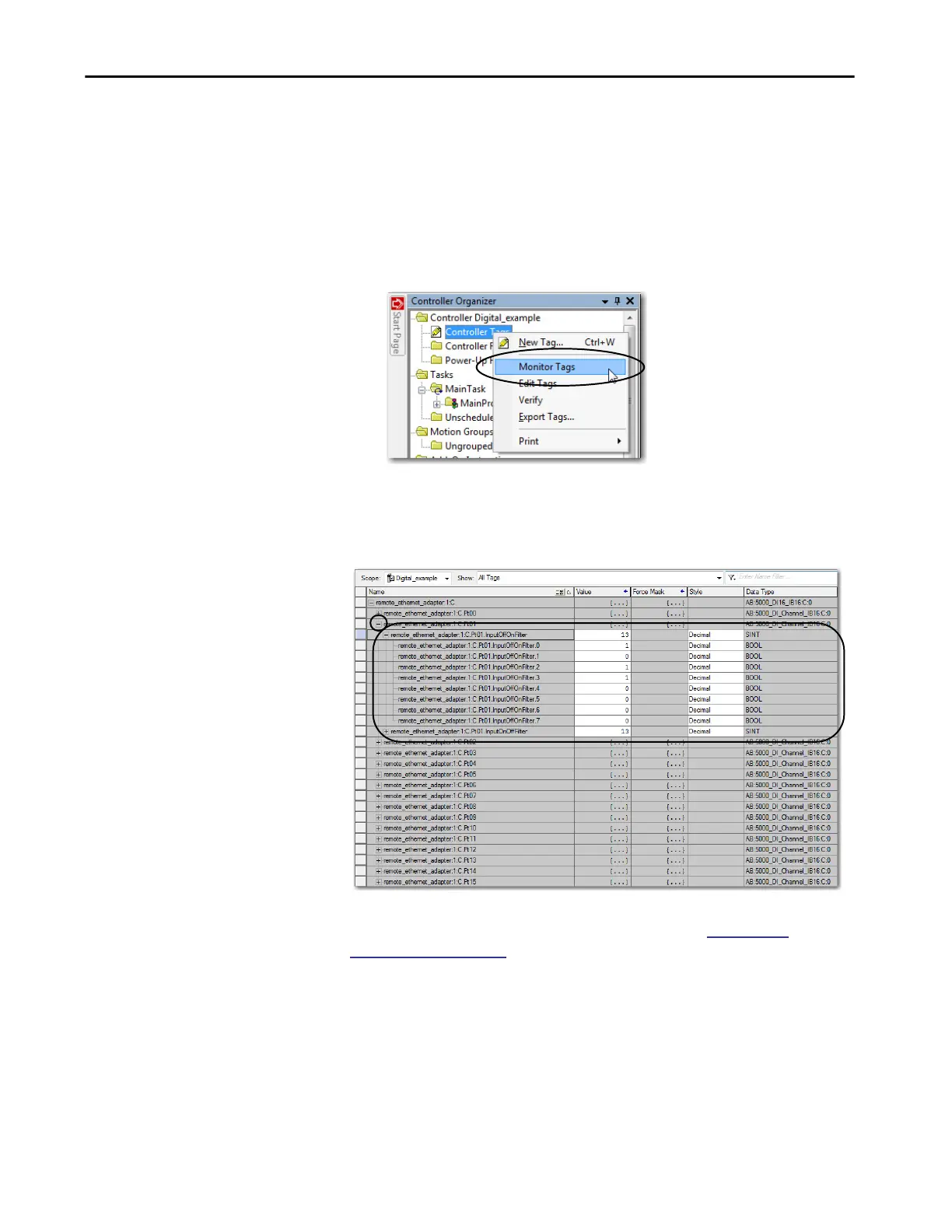

1. In the Controller Organizer, right-click Controller Tags and choose
Monitor Tags.
The Controller Tags dialog box appears with data.
2. To view the tags, click the + symbols as shown.
For more information on module tags, see Appendix B,
Module Tag
Definitions on page 231
