Chapter 6 Configure a Standard Module
Counters Category
The Counters category is available only if you choose a value for Counters in
the Module Definition dialog box.

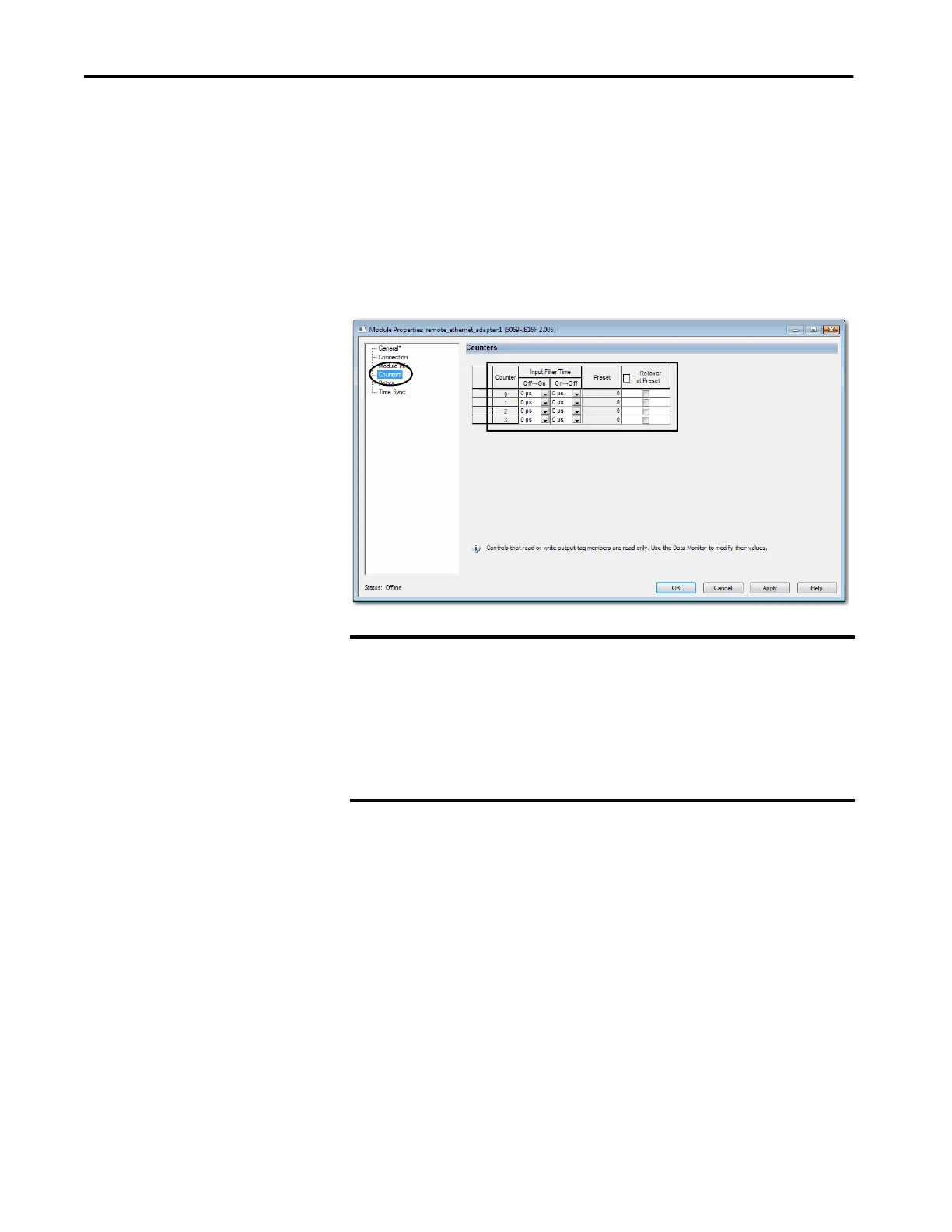

The Counters category shows the configuration options available for each
counter. Based on your Input Filter Time selections, the Input Filter Time
Off→On and On→Off times change. You can also configure the counter Preset
value and enable Rollover at Preset.
IMPORTANT The total number of Counters subtracts from the available number of Points.
For example, if you configure a 5069-IB16F module to use four counters, the
first four terminals are not available to use as points.
The number of points available on the module in this case is 12. That is,
points 4…15.
The maximum number of counters that can be configured is eight channels.
That is, counters 0…7.
