Use an MAOC Instruction with a 5069-OB16F Output Module
To use an MAOC instruction with schedule outputs on a 5069-OB16F output
module, complete the following steps. The module can be a local I/O module
or remote I/O module.
1. If necessary, add a 5069-OB16F output module to your Logix Designer
application project.
For more information on how to add a 5069-OB16F output module to
a Logix Designer application and configure the module, see Chapter 6,
Configure a Standard Module on page 149.

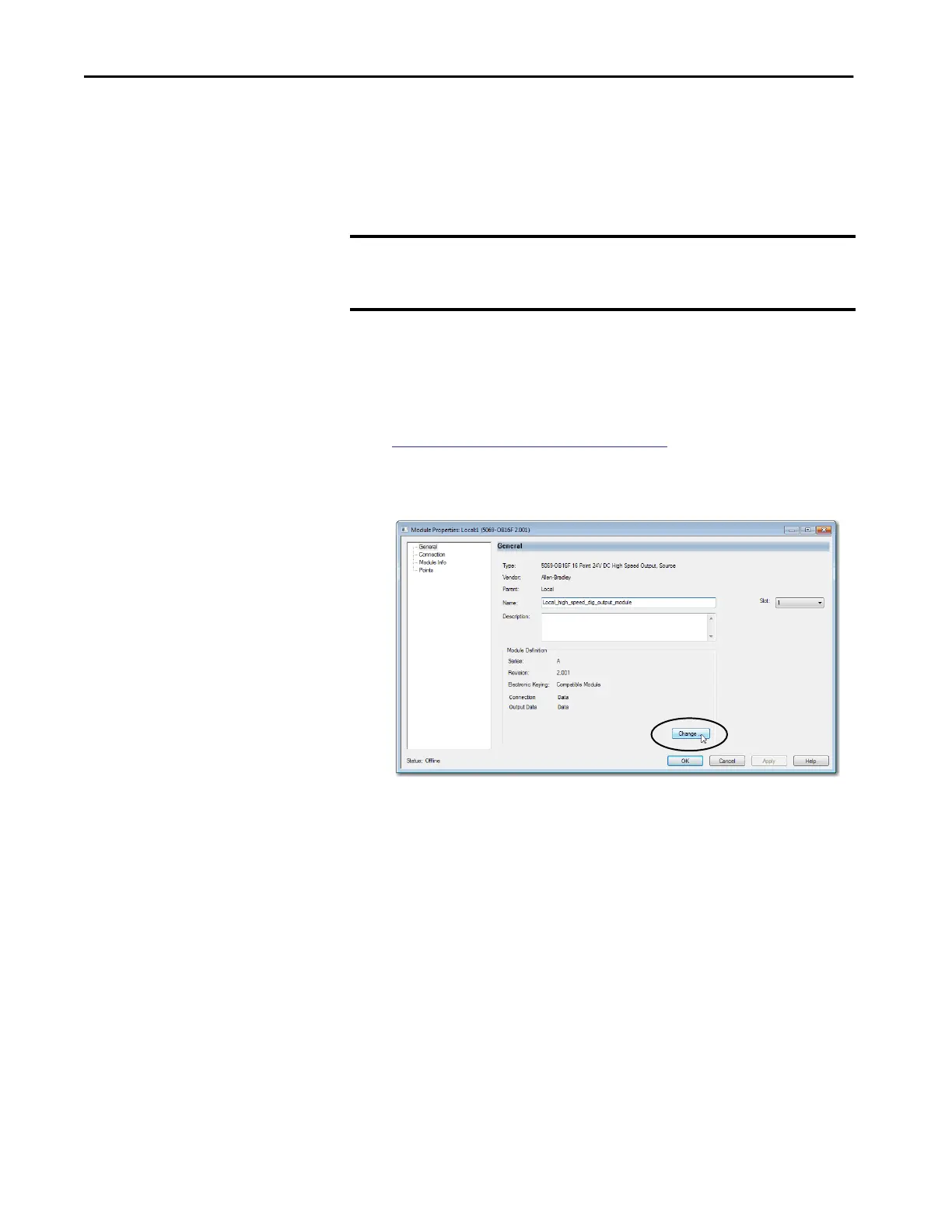

2. From the Module Properties dialog box, click Change to access the
Module Definition parameters.
IMPORTANT Before you complete the steps, make sure that Time Synchronization is
enabled in the controller and, if applicable, the EtherNet/IP adapter, to use
scheduled outputs.
