Allen-Bradley Compact 5000 Series User Manual

232 Rockwell Automation Publication 5069-UM004A-EN-P - April 2019
Appendix B Module Tag Definitions
Name Conventions
The module tags use defined naming conventions. The conventions are as
follows: (example tag name = remote_ethernet_adapter_1:I.Pt00.Data).
The example module tag name is constructed as follows:
• remote_ethernet_adapter = name of the Compact 5000™ I/O
EtherNet/IP™ adapter in the Compact 5000 I/O system
• 1 = slot number
• I = tag type
The possible Compact 5000 I/O tag types are C (configuration), EI
(event input), EO (event output), I (input), O (output)
• Pt00 = module point number
• Data = function
In this case, Data represents the input data that is returned to the owner-
controller.

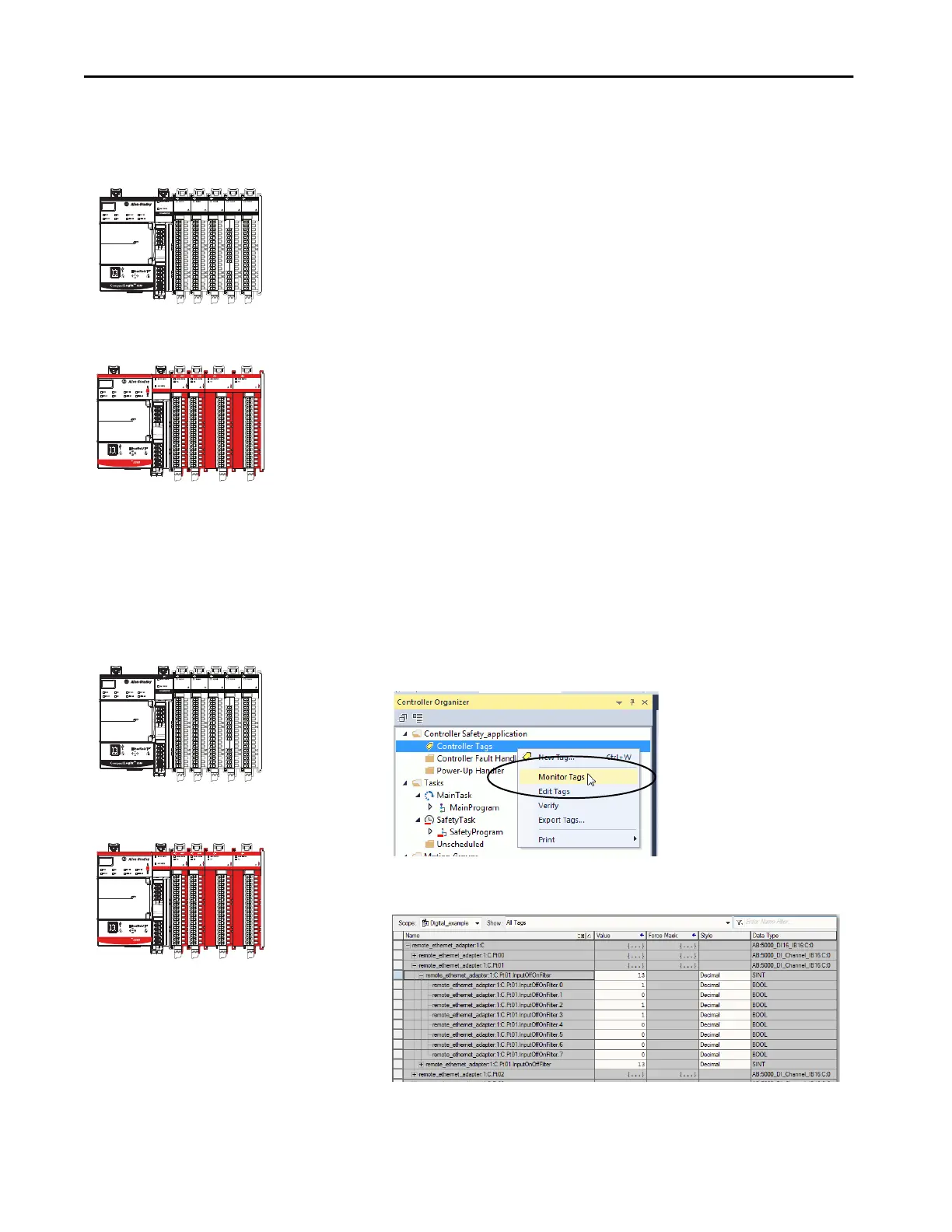

Access the Tags
You can view tags from the Tag Editor.
1. Open your Logix Designer application project.
2. Right-click Controller Tags and choose Monitor Tags.
3. Open the tags as necessary to view specific tags.
5069-OBV8S
SIL2 CPU
5069-L3100ERMS2
Compact GuardLogix
5069-OBV8S
5069-IB8S5069-IB8S
OUTPUT OUTPUT
SA Power MOD Power
DC INPUT
5069-IB16
DC OUTPUT
5069-OB16
ANALOG INPUT
5069-IY4
SA Power MOD Power
ANALOG OUTPUT
5069-OF8
DC INPUT
5069-IB16
Standard Modules
Safety Modules
5069-OBV8S
SIL2 CPU
5069-L3100ERMS2
Compact GuardLogix
5069-OBV8S
5069-IB8S5069-IB8S
OUTPUT OUTPUT
SA Power MOD Power
DC INPUT
5069-IB16
DC OUTPUT
5069-OB16
ANALOG INPUT
5069-IY4
SA Power MOD Power
ANALOG OUTPUT
5069-OF8
DC INPUT
5069-IB16
Standard Modules
Safety Modules
