Allen-Bradley Compact 5000 Series User Manual

256 Rockwell Automation Publication 5069-UM004A-EN-P - April 2019

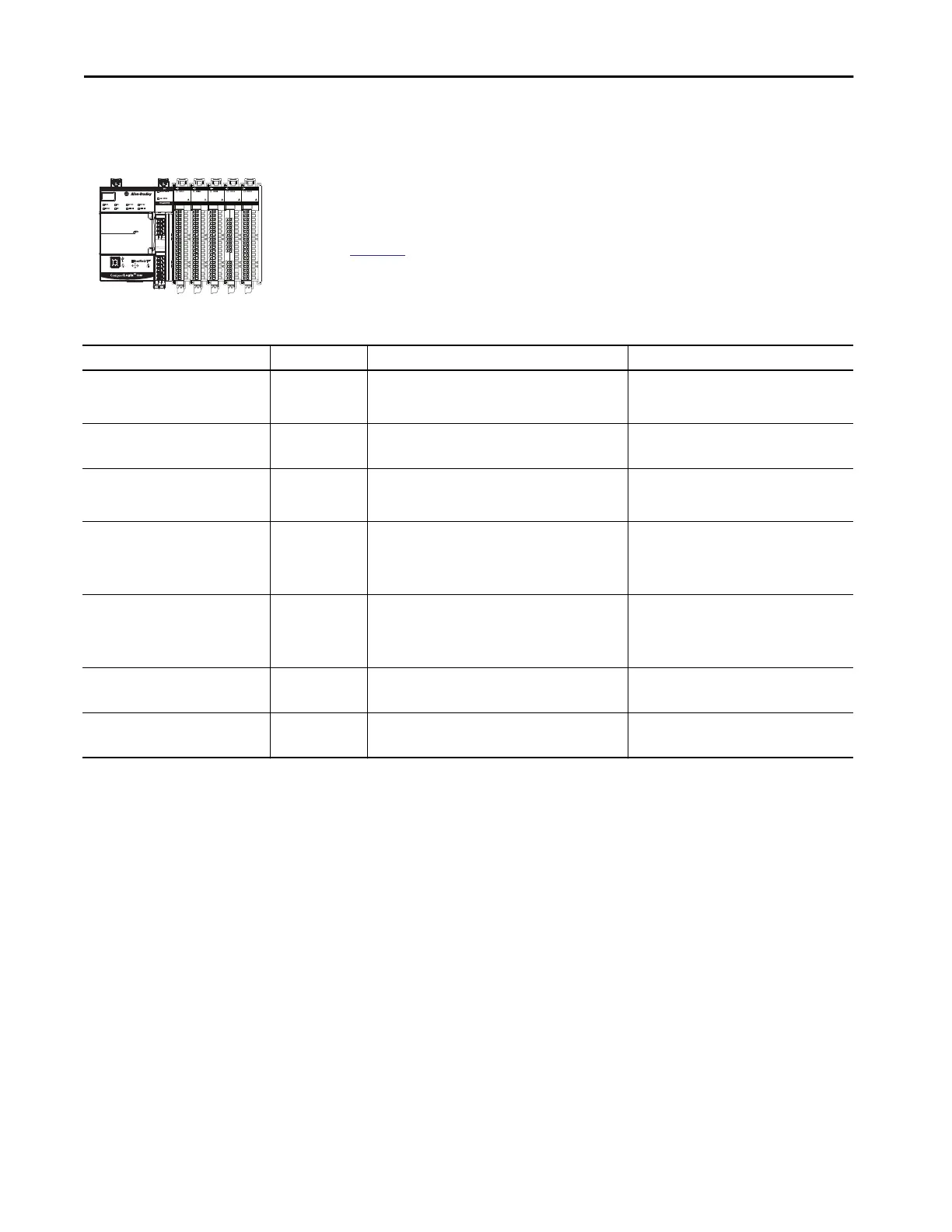

Appendix B Module Tag Definitions
5069-OA16 Module Tags
This section describes the tags that are associated with the 5069-OA16
module.
Configuration Tags
Table 74 describes the 5069-OA16 module configuration tags.
DC INPUT
5069-IB16
DC OUTPUT
5069-OB16
ANALOG INPUT
5069-IY4
SA Power MOD Power
ANALOG OUTPUT
5069-OF8
DC INPUT
5069-IB16
Standard Modules
Table 74 - 5069-OA16 Module Configuration Tags
Name Size Definition Valid Values
Ptxx.FaultMode BOOL Selects the behavior the output channel takes if a
communication fault occurs. FaultValue defines the value
to go to when set to user-defined value.
• 0 = Hold last state
• 1 = Go to a user-defined value
Ptxx.FaultValue BOOL Defines the value that the discrete output should assume
if a communication fault occurs when FaultMode = 0.
• 0 = Off
• 1 = On
Ptxx.ProgMode BOOL Selects the behavior the output channel should take when
transitioned into Program mode. ProgValue defines the
value to go to when set to user-defined value.
• 0 = Hold last state
• 1 = Go to a user-defined value
Ptxx.ProgValue BOOL Defines the value that the output should take when the
connection transitions to Program mode if the ProgMode
bit is set to "User-Defined Value".
• 0 = The output state is Off during Program
mode.
• 1 = The output state is On during Program
mode.
Ptxx.FaultFinalState BOOL If FaultValueStateDuration is nonzero, determines the final
Output state after the configured FaultValueStateDuration
time out occurs.
• 0 = The output state is Off after the
FaultValueStateDuration time expires.
• 1 = The output state is On after the
FaultValueStateDuration time expires.
Ptxx.ProgramToFaultEn BOOL Determines if an output transitions to the Fault Mode
when the connection faults while in Program Mode.
• 0 = Stay in Program Mode
• 1 = Go to Fault mode
Ptxx.FaultValueStateDuration SINT This value determines the length of time the Fault Mode
state is held before the FaultFinalState being applied.
• 0 = Hold forever (default).
• 1, 2, 5, or 10 seconds
