Allen-Bradley Compact 5000 Series User Manual

150 Rockwell Automation Publication 5069-UM004A-EN-P - April 2019
Chapter 6 Configure a Standard Module
Before You Begin
You must complete the following tasks before you can configure the module:
1. Create a Logix Designer application project.
2. If you use the standard modules as remote modules, add a
Compact 5000 I/O EtherNet/IP™ adapter to the project.
For more information on how to add a Compact 5000 I/O EtherNet/IP
adapter to a Logix Designer application project, see the Compact 5000
EtherNet/IP Adapters User Manual, publication
5069-UM007.
Once the project is created and, if necessary, the adapter is added, you can
create a module in the Logix Designer application project.
Create a New Module
There are two methods to add modules to your Logix Designer
application project.
• Discover I/O modules
• New I/O modules
Discover Local I/O Modules
To use the Discover Modules method with local I/O modules, complete the
following steps.
1. Go online with your Logix Designer application.

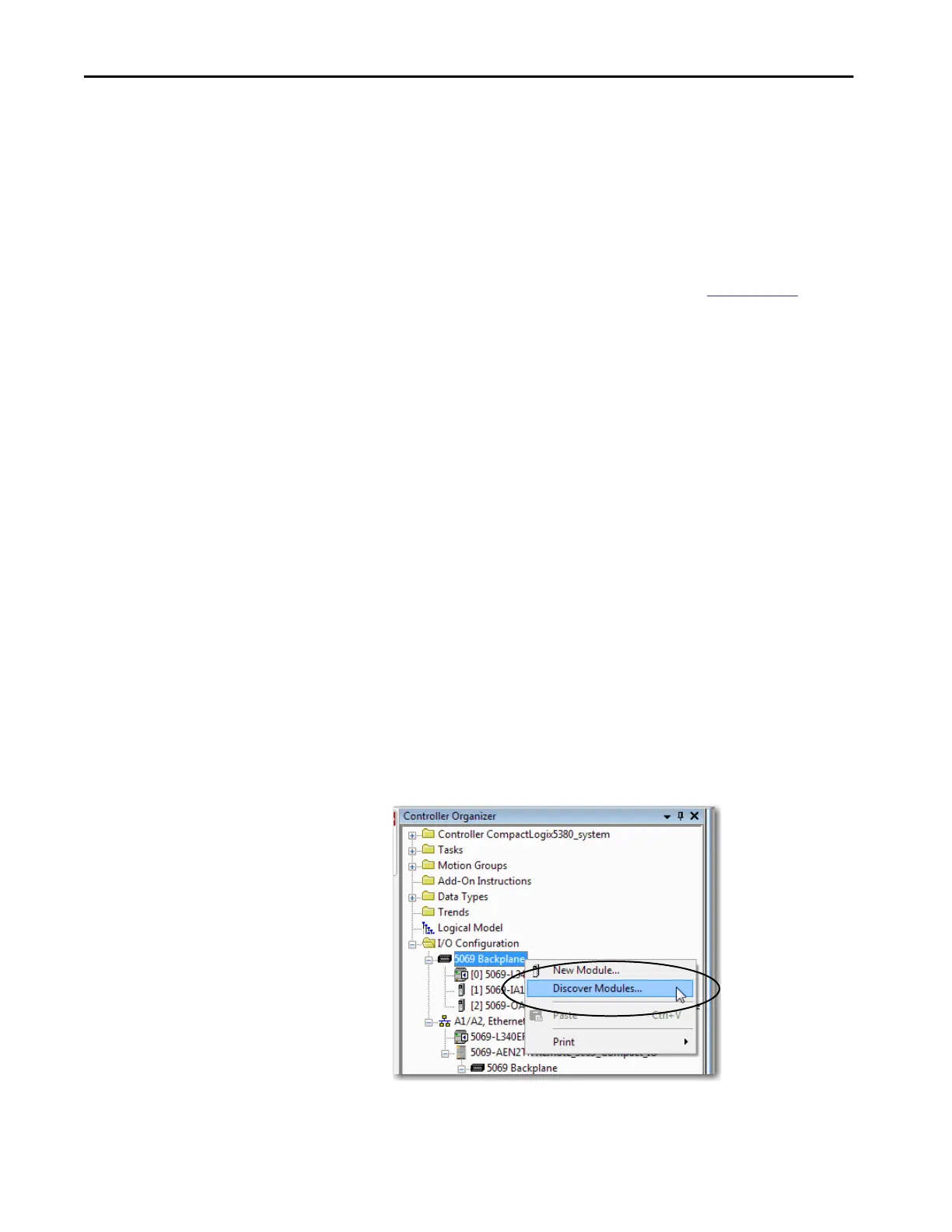

2. Right-click the 5069 Backplane and choose Discover Modules.
The Logix Designer application automatically detects available modules
that are connected to the backplane.
