194 Rockwell Automation Publication 5069-UM004A-EN-P - April 2019

Chapter 7 Configure and Replace Safety Modules

New Remote I/O Module

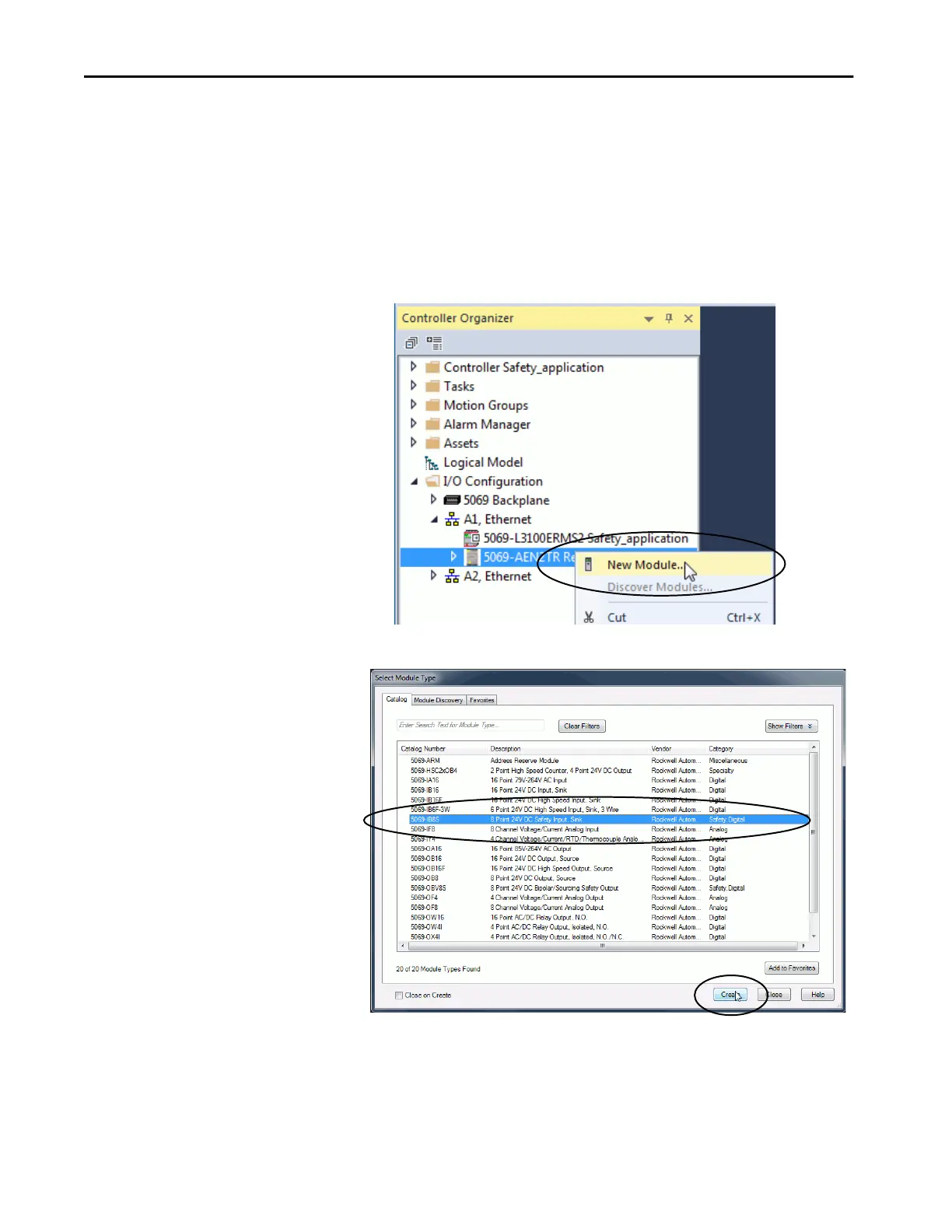

To create a new remote Compact 5000 I/O safety module, complete the

following steps.

1. Add a Compact 5000 I/O EtherNet/IP adapter to the project.

2. Right-click the Compact 5000 I/O EtherNet/IP adapter and choose

New Module.

3. Select the module and click Create.

The New Module dialog box appears with a list of categories on the left

side. The number and type of categories varies by module type.

Default Chapter3
