Allen-Bradley Compact 5000 Series User Manual

Rockwell Automation Publication 5069-UM004A-EN-P - April 2019 221
Troubleshoot Your Module Appendix A
Compact 5000 I/O Safety
Output Module Status
Indicators
Figure 27 show the status indicators on the Compact 5000 I/O safety output
module.

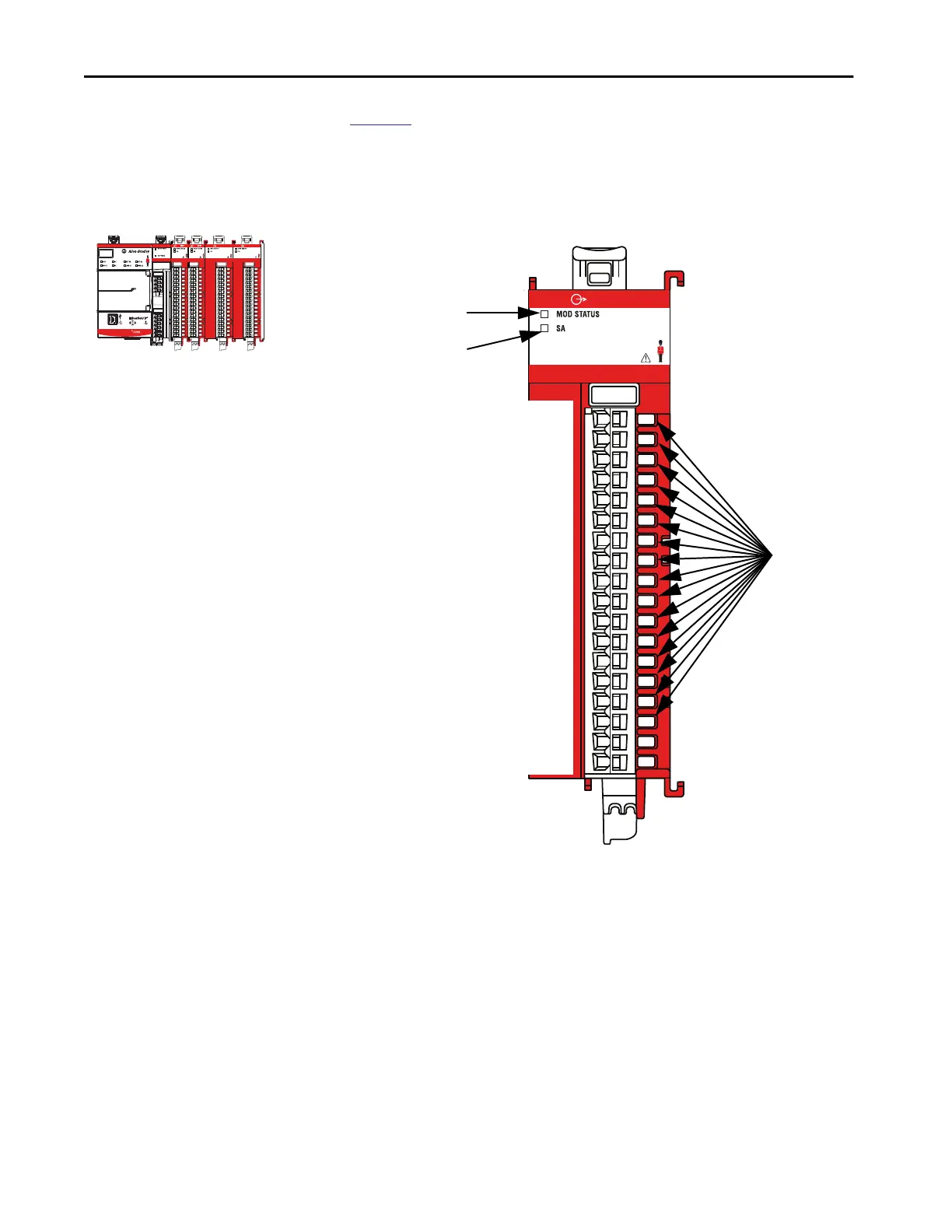

Figure 27 - Compact 5000 I/O Safety Output Module Status Indicators
5069-OBV8S
SIL2 CPU
5069-L3100ERMS2
Compact GuardLogix
5069-OBV8S
5069-IB8S5069-IB8S
OUTPUT OUTPUT
SA Power MOD Power
Safety Modules
5069-OBV8S
OUTPUT
I/O Status
Indicators
5069-OBV8S, 5069-OBV8SK
Safety Output 0 P (Sourcing)
LA +
LA –
Safety Output 3 P (Sourcing)
Safety Output 4 P (Sourcing)
Safety Output 4 N (Sinking)
Safety Output 1 N (Sinking)
Safety Output 5 P (Sourcing)
Safety Output 5 N (Sinking)
Safety Output 6 P (Sourcing)
Safety Output 6 N (Sinking)
Safety Output 7 P (Sourcing)
Safety Output 7 N (Sinking)
Safety Output 3 N (Sinking)
Safety Output 2 N (Sinking)
Safety Output 2 P (Sourcing)
Safety Output 1 P (Sourcing)
Safety Output 0 N (Sinking)
Module Status Indicator
SA Status Indicator
IMPORTANT: The 5069-OBV8SK module status indicators appear the same as the
indicators are shown on the 5069-OBV8S module.
